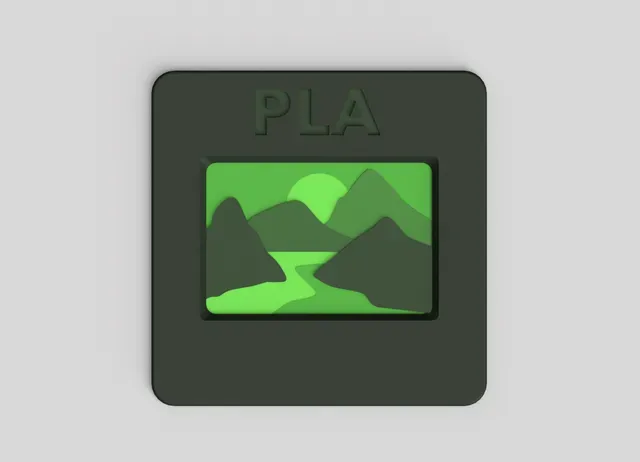

35mm Slide Filament Samples - 63 Materials + Boxes

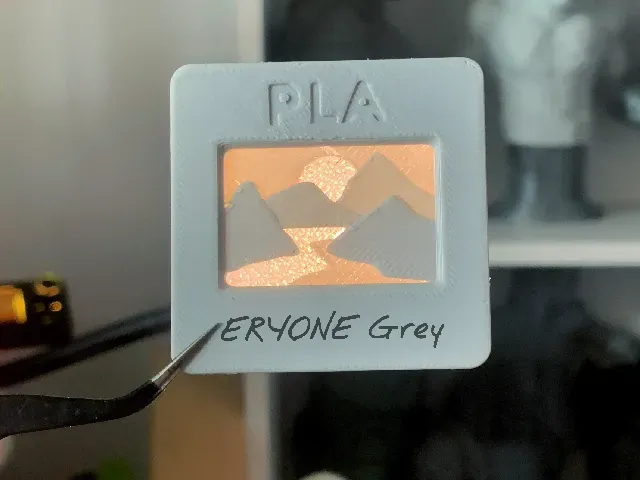

The best way to test the transparency is with a 35mm slide. You can look at it in the light or you could even use it in your old slides projector.

Generated for the most common materials, I'll try to keep updated. I take the list from Seemomster . I also add a blank sample. Feel free to message me if I miss something.

Size : 50.8x50.8x2.0 mm, use 4.87g or 1.63m of filament

Test:

- first layer - no gaps and no blobs on first layer - transparency - filament transparency for 1 - 5 layers - calibration - rotating one sample 90 degrees to another and they should have the same dimensions if your X and Y are calibrated. Print settings:

- 0.2mm layer high - for the best view - see below - 5 top & bottom layer - to avoid any layer of infill

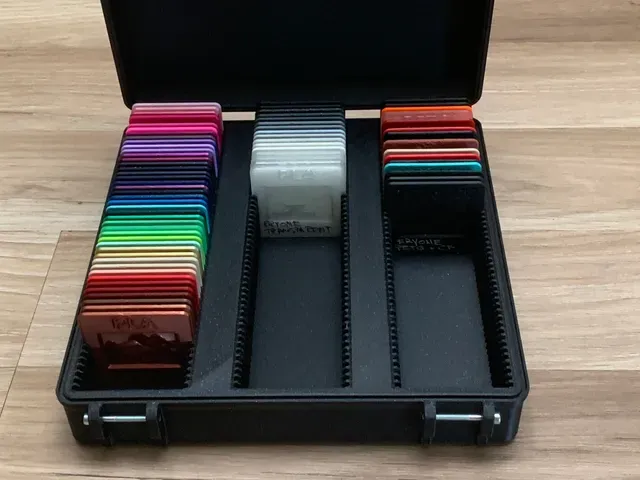

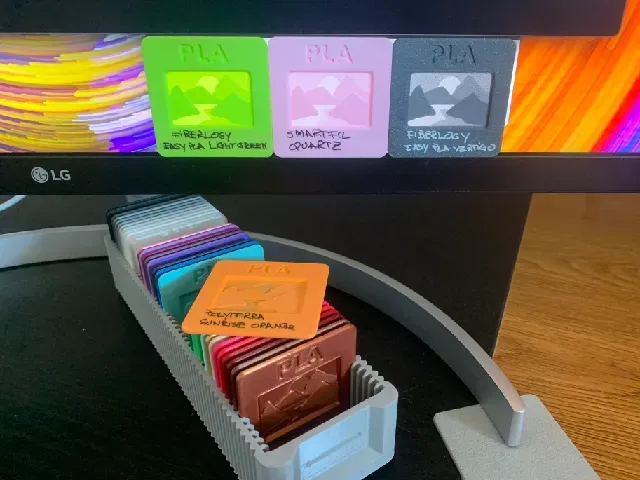

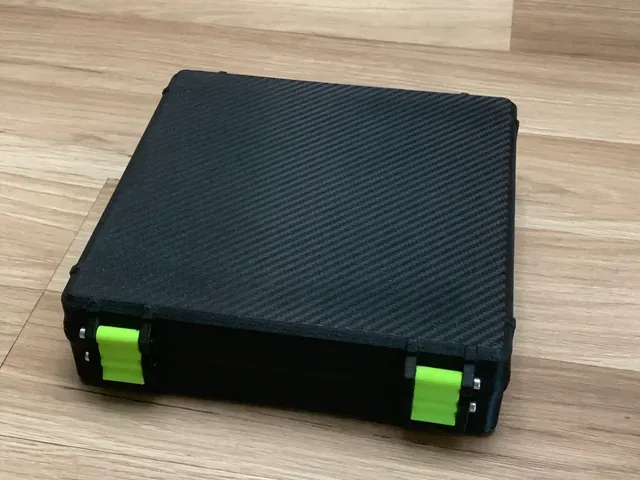

Boxes are generated with this model .

UPDATES

08.10.2023 - Add HYPER PLA 01.10.2023 - Add Rugged Boxes for Prusa Mini 12.08.2023 - Add Rugged Boxes from Whity 12.07.2023 - Add PLA CF 03.05.2023 - Add GLASSBEND 27.03.2023 - Add EVA and PCTPE 11.03.2023 - Add FLEX PLA 11.10.2022 - Add PETG CF 01.10.2022 - Add PLA PRO and PC CF 26.09.2022 - Add PCTG sample 06.09.2022 - Update boxes to version 1.3
