GEN2 Classic Filament Sample Drawer - 185-1W-05H

⭐ Love the GEN2 system? Support the project by joining the Jerrari Club or picking up a premium faceplate collection , it means a lot and helps fuel future designs.

JERRARI3D.com

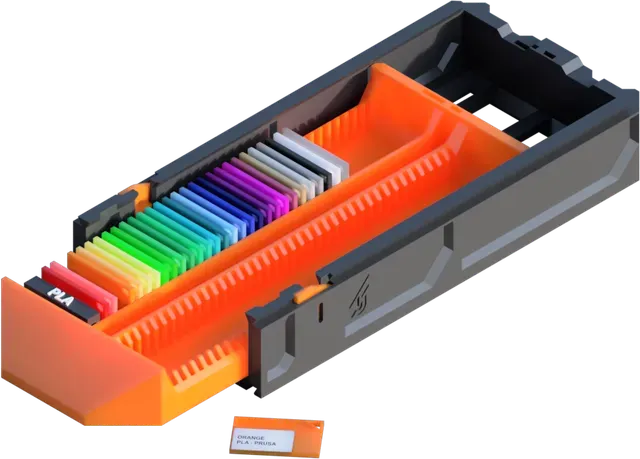

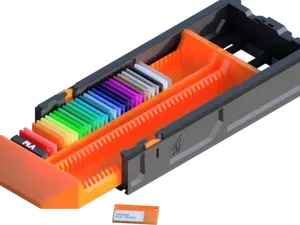

The GEN2 Filament Drawer is a great way to record and organize samples of your filament, a must have for multi-color printing!

This drawer is part of the GEN2 Modular Storage System in STANDARD length. A modular system that can be customized and easily rearranged.

STEP 1: Location

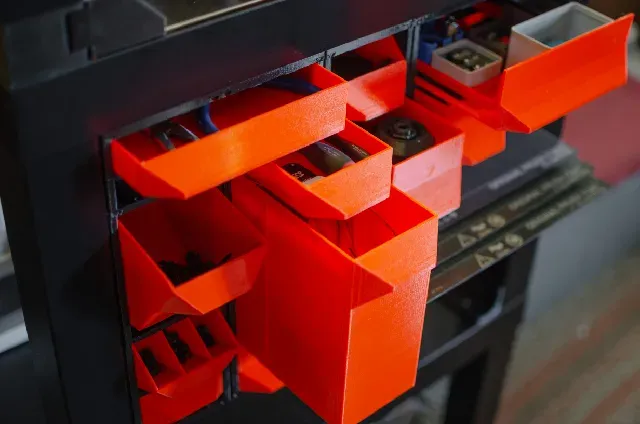

Decide how you would like to use your GEN2 storage. Keep in mind that the drawers are modular and can be easily swapped between under table and table top locations. All drawers are available for mounting under the table using rails, but you can also place them on top of any surface with table top kits.

Find these kits at JERRARI3D/gen2-modular-system

UNDER TABLE (GEN2 RAILS)

Attach GEN2 drawers under any surface by installing the GEN2 RAILS. Once installed drawers can slide and lock into place, they can then be swapped out and rearrange in seconds.

TABLE TOP KITS

Table Top Kits include covers and foot rails that when combined with drawer cases create a rigid structure that can be placed anywhere

What You'll Need

Visit Jerrari3D.com for a list of all compatible drawers.

Understanding Part Names GEN2 drawers are titled by length, width and height, such as in this example.

HARDWARE Includes affiliated links to help support my projects • Filament - PETG or PLA • Screwdriver • Magnets (Optional) : 10x2mm or 6x2mm • M3 nuts and screws: Stainless-Steel or Steel • Label Maker (makes 12mm labels) - I prefer this one

UNDER TABLE (GEN2 RAILS) HARDWARE • Countersunk woodscrews: ( SAE: #6 or #8 up to 1/2" or longer ) or (Metric: 3.5x16mm or longer) • Drill bit that is smaller diameter than the wood screws ( My Recommendation ) • Pen, Marker, or Scratch Awl (for installing under tables)

INSTRUCTIONS

Detailed visual instructions at Jerrari3d.com

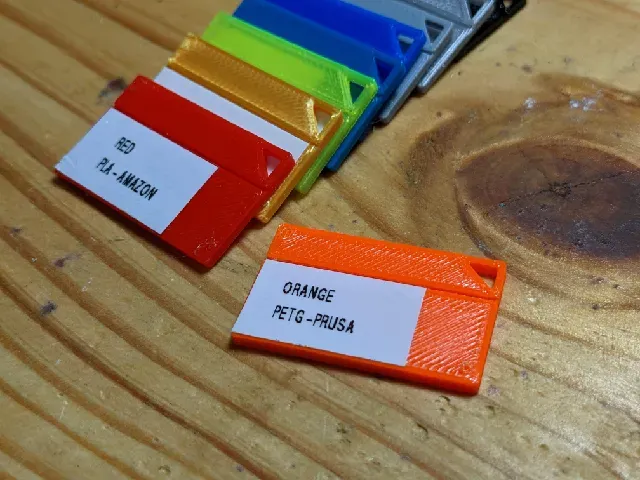

Labels - The samples are sized to fit 12mm label

Filament Dividers - These are used to separate your different filament types in a single drawer. You can either use one of the 3MF pre-sliced files I created or create your own from the blank STL. Note: if your printer struggles with be adhesion I recommend adding a brim that can easily be cut away.

UPDATE:

• NEW Magnet Clip - This replaces the magnet slots with a more reliable and universal design.

Please note: The Non-Commercial license refers specifically to selling prints. You're absolutely welcome to use my designs in commercial environments · I actually encourage you to use them anywhere you see fit! 👍

PLAN YOUR BUILD IN SECONDS

Not sure which parts fit together? The free GEN2 Planner lets you design your build in 3D, checks every part against your printer size, and hands you the exact print list · no guesswork, no wrong sizes: gen2planner.jerrari3d.com
