Mosfet Mount for JGMaker Artist-D

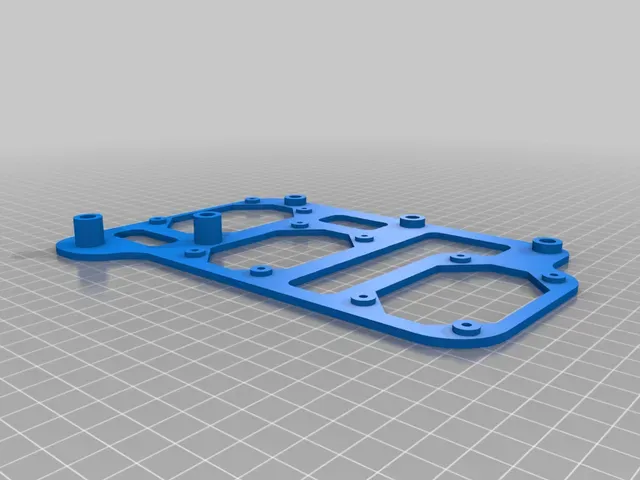

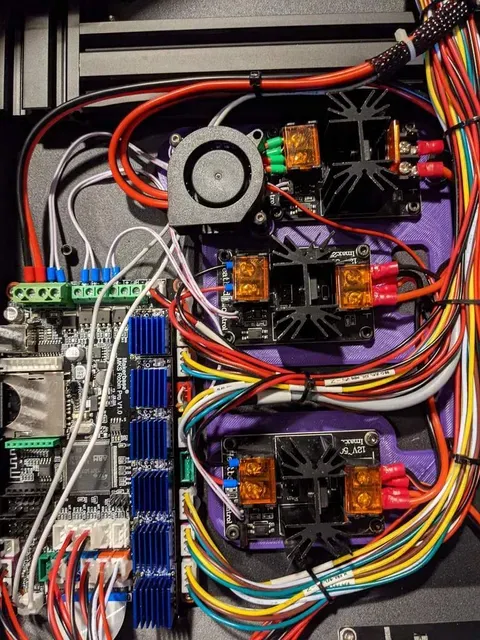

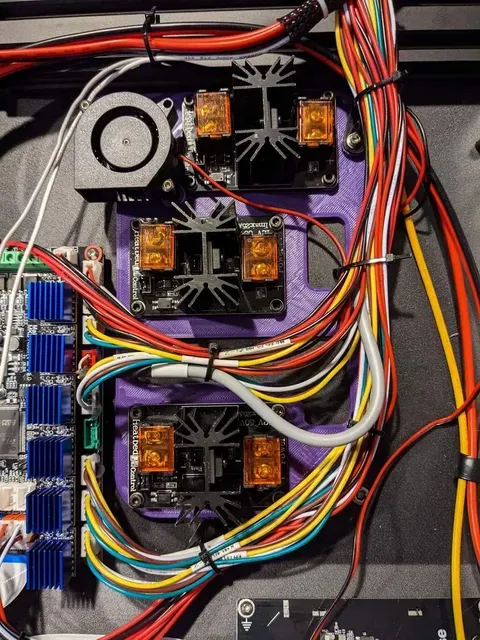

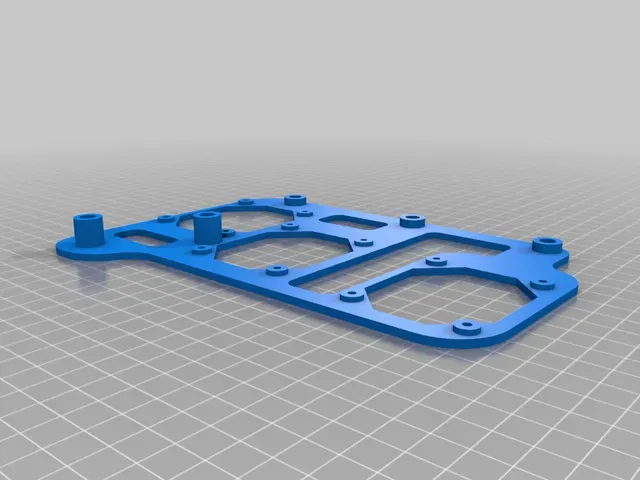

This is a mosfet holder for the JGMaker Artist-D or Artist-D Pro printer. You'll need 3 mosfet boards (4.5 cm x 7 cm) and screws to secure them. The boards I've linked to below come in 2 packs. Possibly other brands may work as well.

The 5 cm x 6 cm mount is untested, but should work. Worst case the mosfet screw holes are a little off.

Check the amperage of the board you choose. 30 amp boards handle twice as much current as 15 amp.

Source files included.

Like my work? Post a make!

Links:

45x70 board: ACEIRMC 2pcs 30A Mos Tube Heat Bed Power Module Expansion Board

50x60 board: Heat Bed Mosfet, MACTISICAL 2 Pack - 25 amp

Print Settings

Printer:

JGMaker Artist-D Pro

Rafts: No

Supports:

No

Resolution: 200

Infill:

30%

Filament:

eSun PLA+, PETG, is preferred. Purple.

Notes:

Use 4 outer layers for strength. Shouldn't need more than 30% infill

Category: 3D Printer Accessories
