Ender 3 V2/S1 - Dial Gauge Mount [X;Y;Z Axis]

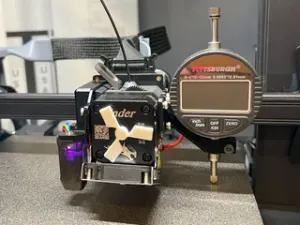

I needed a dial gauge mount so that I could perform the ‘ XYZ steps Calibration ’ within the written guide ‘ Teaching Tech 3D Printer Calibration ’. After reading the calibration guide I strived to create mounts that I could accurately measure physical distance to adjust my e-step accordingly.

If you download the file(s), please leave a like! Also please share your makes and constructive criticism for future versions. { Please note this was tested and designed on an Ender 3 S1 Pro}

Tools/Hardware Needed:

- Dial gauge - found on Amazon: “Clockwise Tools DIGR-0105 Electronic Digital Dial Indicator Gage Gauge" - M3x8 Screw - M3 Nut ( however, with the inner diameter used the M3 screw threads pretty nice )

Current STL Files & Version(s)

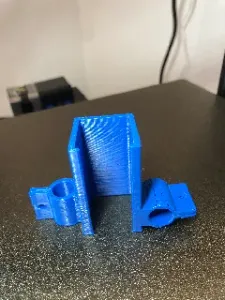

- Z-Axis : {Z-Axis_Dial-Gauge-Mount_v1} - Accommodates ' Ender 3 S1 Twin Jet 5015 Fan Duct ' by TX_Ryan - No custom air duct? See final note below - X-Axis : {X-Axis_Dial-Gauge-Mount_v1} - Y-Axis: {Y-Axis_Dial-Gauge-Mount_v1}

Printer Settings:

- 0.2mm Layer Height - 15% Infill - No Supports Orientation:

- All mounts were printed in the same orientation as the photos

Please Note: If you DO NOT have a custom fan duct use → ‘ Ender S1 Dial Gauge Holder ’ by kaisarantonn
