Centerbeam flat car for your Garden Railroad - 1:29 Scale

My compressed version of a 1:29 scale centerbeam flat car. It's only 24 7/8" (~60' in 1:29) but I think it captures the look.

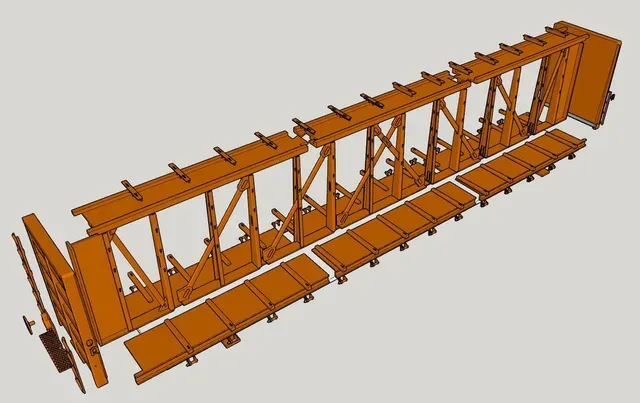

I drew the model using the dimensions of the 73' BNSF car as a guide but only used 4 of the 6 "standard" strut sections. If you would like a more accurate 73' car, You can print the additional sections found here: https://www.printables.com/model/272678-top-and-deck-extensions-for-centerbeam-flat-car

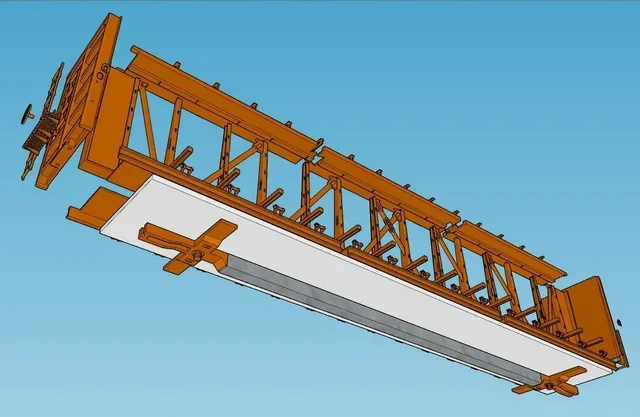

Pictured model has a simple frame made from a piece of PVC 613mm x 93mm x 5mm thick (sold as 2'x4' drop ceiling tile at Lowes - Genesis #504838 Model #745-00) and 425mm length of 1/2" square steel tube (Hillman #29049 Model #11736).

I prefer to use 6mm ABS rod for truck posts. (Print the bringyourownposts version) https://www.amazon.com/Swpeet-Assortment-Diameter-Material-Architectural/dp/B09YPY6LF2?th=1

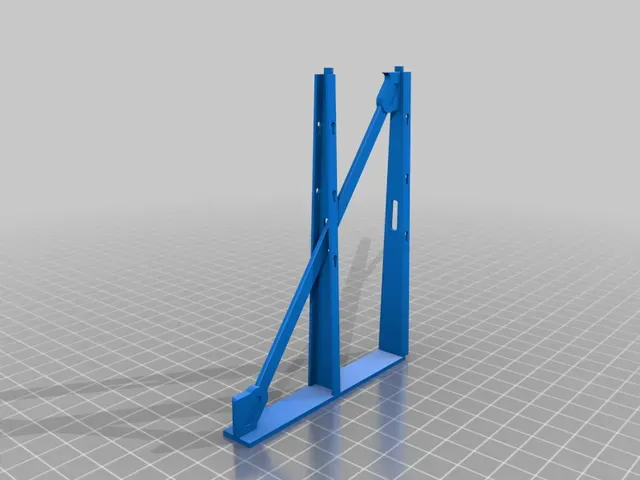

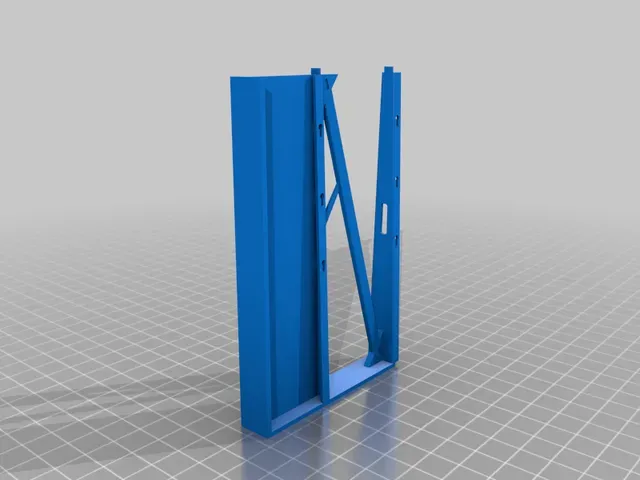

NOTE: If you have trouble printing the End Strut successfully, Try the bit more robust Suess Version.

BYOB - Bring your own bogies!

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

.2

Infill:

60

Filament: eSun PETg Grey

Notes:

Some parts best printed with an SLA printer. Especially the brackets, ratchets and lift here inserts.

Post-Printing =============

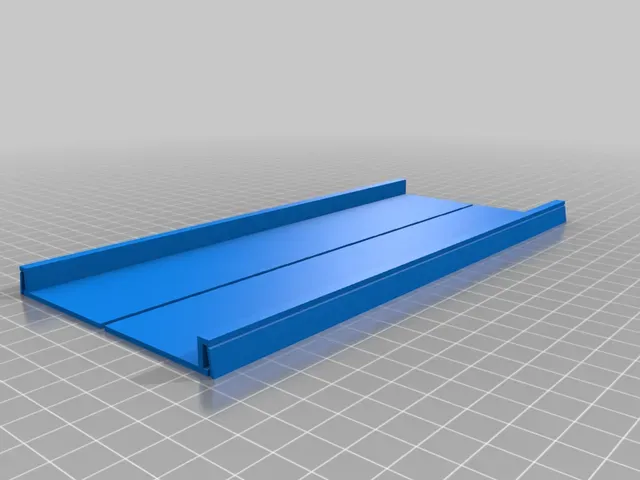

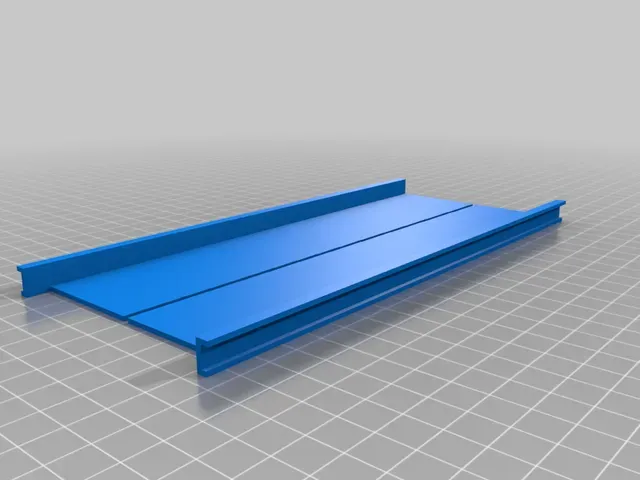

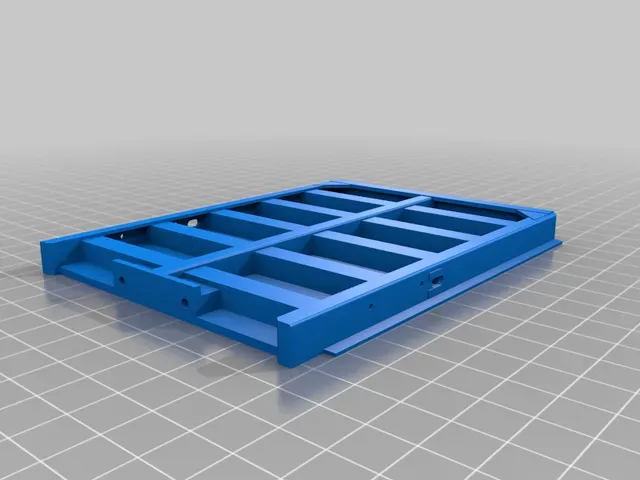

Gluing the 6 deck pieces to a piece of PVC

Bottom End.
