Biqu H2 Ender 3 V2 mounting plate - 3D FUN REMIX

I've remixed remixed model of mounting plate for Biqu H2 V2 for Creality Ender 3 V2 with colab of 3DFun.cz.

→ This remix updates the home X possition of the nozzle that was previously out of the printing area. Now the nozzle is above without any other adjustments. (purge line was out of the bed area)

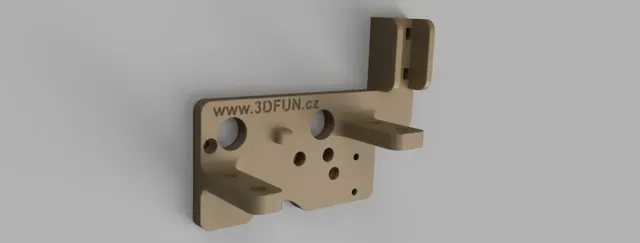

V1: Logo on the back / V2: Logo on the front.

You'll need 6x M3x6mm socket screws.

→ Added better cable holder for more secure and safe cable attachment.

→ Ready for BL Touch (this remained from the previous model BLTouch offset: X= -36.4 Y= 0 )

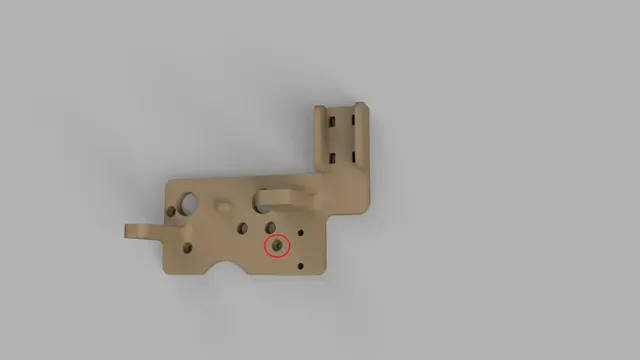

→ This mounting plate has one more screw hole to be screwed together with the carriage on the right side of the plate from the front (this needs to be done first without Biqu attached to the mounting plate).

→ Another screw is from the back directly to the Biqu H2. Two more screws are from the up side to the Biqu H2.

→ Last screw is on the left side of the mount and into the carrieage. There is a tight fit of the holes that were for the previous hotend.

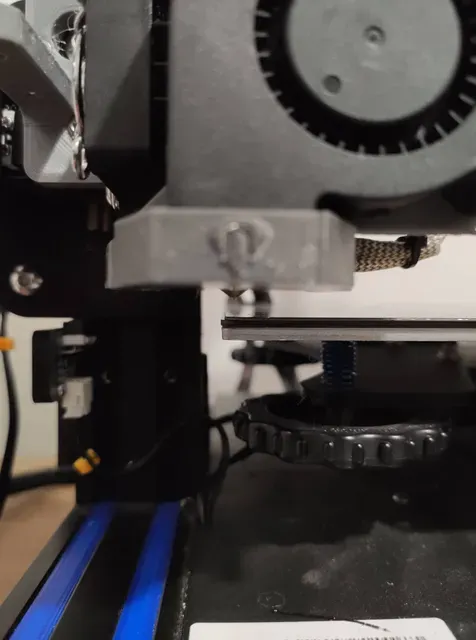

Note: Small upper line support that can be seen on the picture is moved more to the righ side. On the picture is older version of the mount where it slightly interfiers with the fan.

- Please ignore possible errors in slicer.

I hope you'll enjoy this mounting plate.
