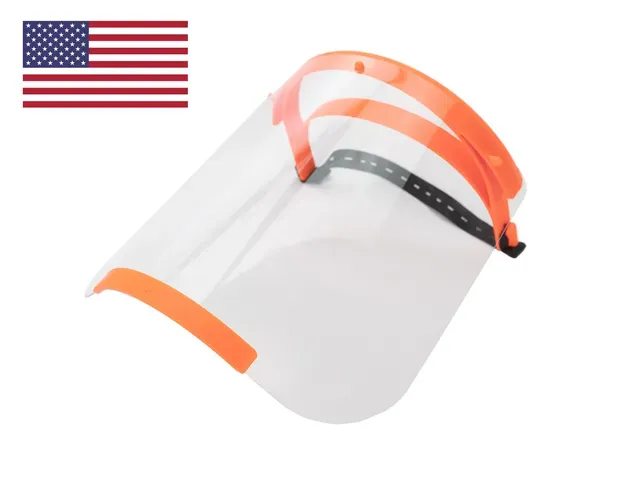

Prusa Face Shield - US version

A prototype face shield that we developed. This is a version for the US based on the community feedback, the design was adjusted to fit:

- American size sheet (11x8,5 inches)

- American triple hole punch (distance 4 1/4", hole radius 1/4")

Useful links

- All about 3D printed Face Shields

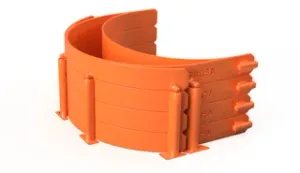

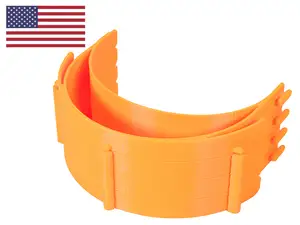

- Stacked versions of the Shield - 1h 20min per pcs

- Prusa Face Shield - EU version

- Learn How to coordinate (not only) the protective face shields printing

- Discover Groups near you

- How to STERILIZE the face shields

- Visor PDF drawing , DXF drawing is in the Files section

- Article: From Design to Mass 3D printing of Medical Shields in Three Days

- FAQs (frequently asked questions)

Update - we've added Groups to PrusaPrinters

Learn how to coordinate on (not only) the protective face shields printing in our article

Discover groups near you

Version PRUSA PRO (RC4) changelog

Changes from RC3:

- Larger visor that provides complete protection of the entire face (flying drops, sprayed liquids)

- 2 pins on the side for a better fixation of the visor

- Visor cutouts for shoulders

- meets the standard of EN 166:2001

Version RC3 changelog

Initial release - based on the RC3 EU (European version)

If you want to manufacture shields for others

PLEASE READ THIS CAREFULLY

- Act as if you were infected by the COVID-19 virus. Wear a face mask and a fresh pair of gloves when collecting each batch of printed parts. Store the parts immediately in a sealable bag.

- Talk with whoever you’re making the shields for, let them know about your manufacturing environment

- There is still debate about how long the virus survives on plastic, but most sources mention 2-3 days. That means that by letting the packed face shields sit for 2-3 days before distributing them, you’ll greatly reduce risk of transmission

- Do not store the entire stock in one place , minimize the risk of cross contamination Assembly manual:

Note that assembly instructions are for the EU version, however, the US version is apart from the number of the pins the same.

- Online: English version , English Community version using a laminating foil , Czech version

- PDF: English version (shorter)

- Video:

Rubber band

You can either use a thicker one and make a hole in it at each end (make at least 10 mm cut) or use a thin one and tie it to both ends of the shield.

Visor / front plate

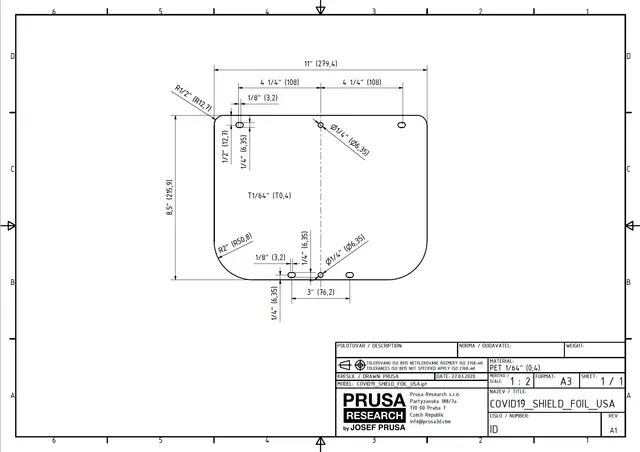

- there is a DXF drawing in the Files section (and an alternative longer version)

- the holes can be made with a standard office hole puncher

- we used 0.5 mm thick petg sheet (Covestro VIVAK), but you should be able to use any clear laser cuttable plastic with similar thickness.
