Kingroon KP3S shroud V2

Updated version 2. Updated the left mounting holes, Made the shell thicker (to 2mm).

All categorized in maps

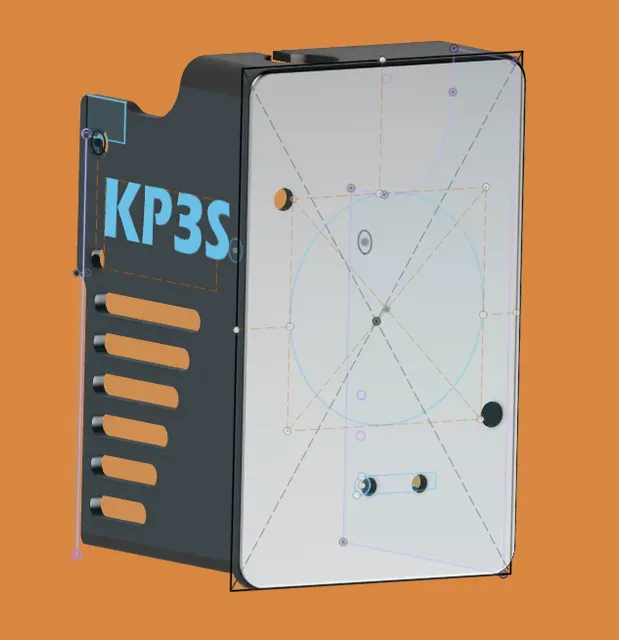

KP3S Shroud Minimal V2: Minimal design for remix/own version purposes. No fillets were applied. The outlines for the 5015 fan are present so you can add your own design.

KP3S Shroud V2 With slots: Slots are added. Fillets are added. The outlines for the 5015 fan are present so you can add your own design.

KP3S Shroud V2 BL Touch (no slots): Borg-themed ready to print with space for the Kingroon BL Touch design.

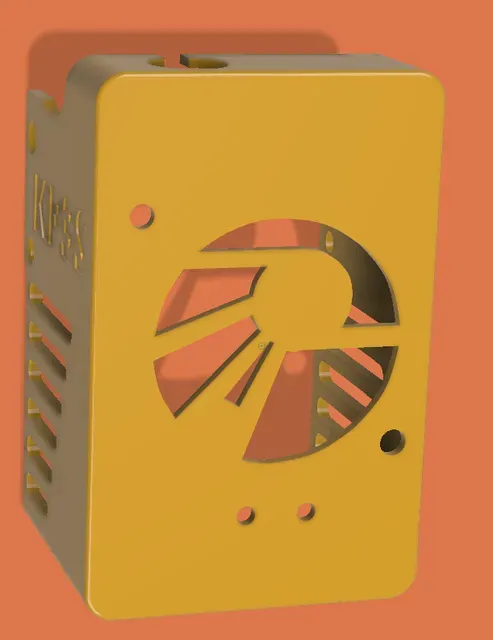

KP3S Shroud V2 slots Borg Theme: Borg-themed ready to print. With ventilation slots on both sides, should fit Kingroon BL Touch.

Based on the original shroud. Mind I'm not a designer so don't blame me for mistakes. Tested and fits the KP3S fan ducts (original and designs from other makers). 100% infill for a more rigid print. Printed with the fan inlet on the build plate. There are 3 designs with a Star Trek Borg theme. I provided also the step files if you want to design your own air inlet for the front fan.

Printer: Kingroon KP3S

Rafts: No

Supports: No

Resolution: 0.12 - I printed at 0.28 with good results

Infill: 100% (for rigidity)

Filament brand: eSUN

Filament material: PLA+
