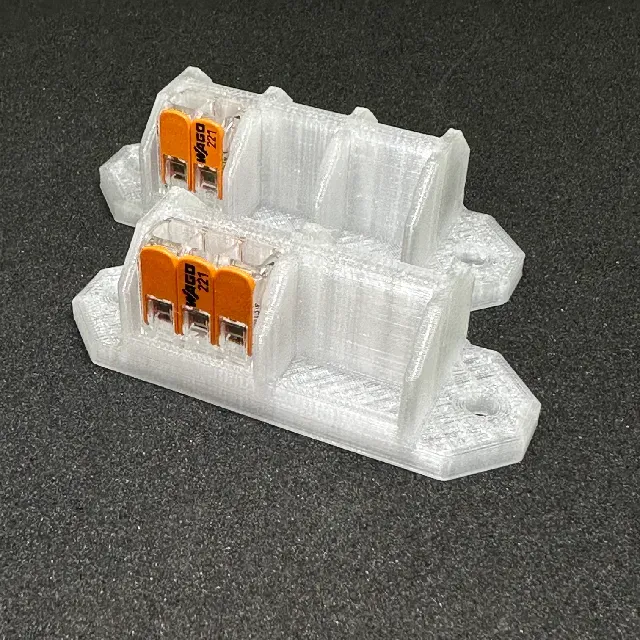

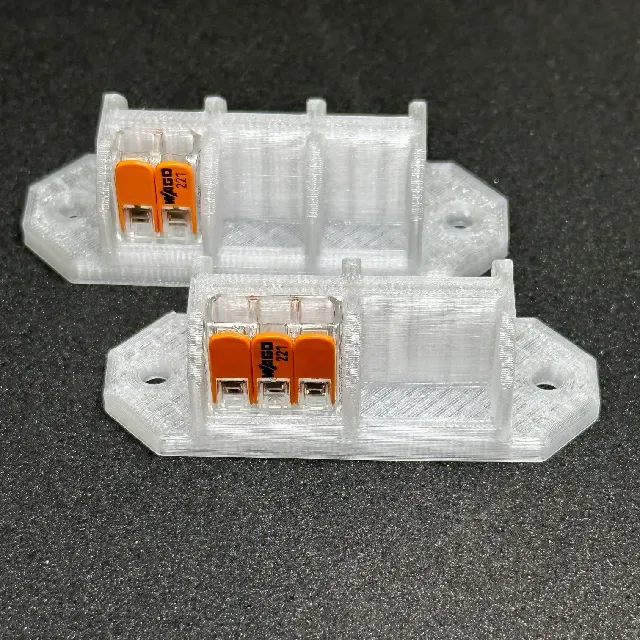

Wago 221 412 413 and 415 double / triple and single / double lined connector for 2020 / 3030 extrusions

Why?

I needed adapters to mount the Wago 221 series connectors to 2020 AND 3030 extrusions. I wanted them to be modular in size and space efficient.

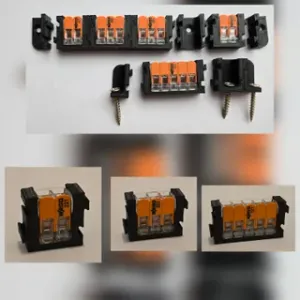

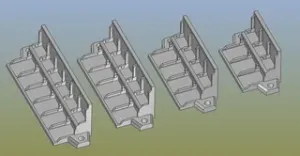

Those adapters are a remix of the following models:

https://www.thingiverse.com/thing:5379627/files

https://www.thingiverse.com/thing:5171423/files

I really liked the original design, but they didn't come without flaws. While one design only offered 221-415 adapters, the other one had pockets for the 221-412 adapters that were to big. In both designs, the drillhole was too small, I wanted it to be at least M4 / M5.

Features:

- Space efficient mounting option to mount 2/3/4/6 adapters - Fit 2020 (single) and 3030 (single and double) extrusions - Mountable with M4 and M5 screws Requirements:

- Nothing special, use any material you like, I prefer ASA/ABS/PETG for mechanical parts. - The slight flexibility of PETG is an advantage when you want to mount the connectors into the pockets, the tolerances are quite tight. As always: comments and feedback very much appreciated :-)
