Brother P-Touch Wall/Cabinet Mount

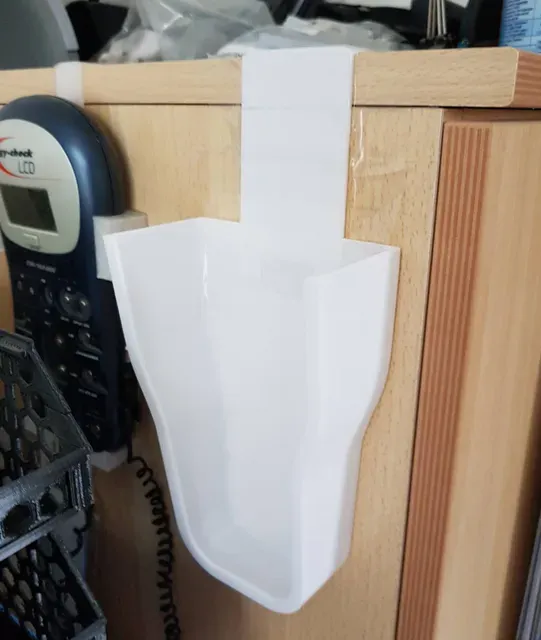

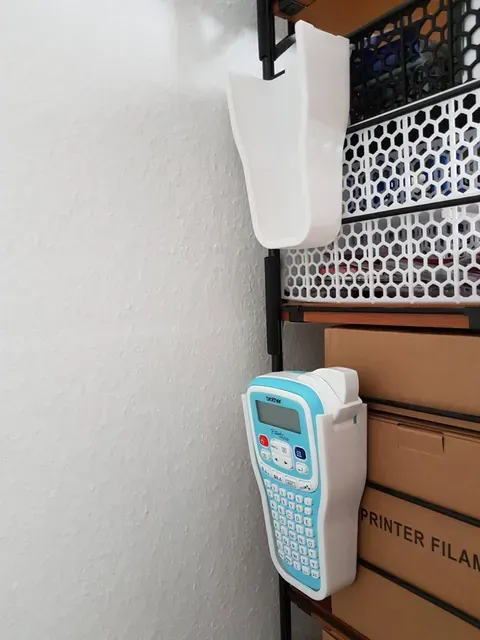

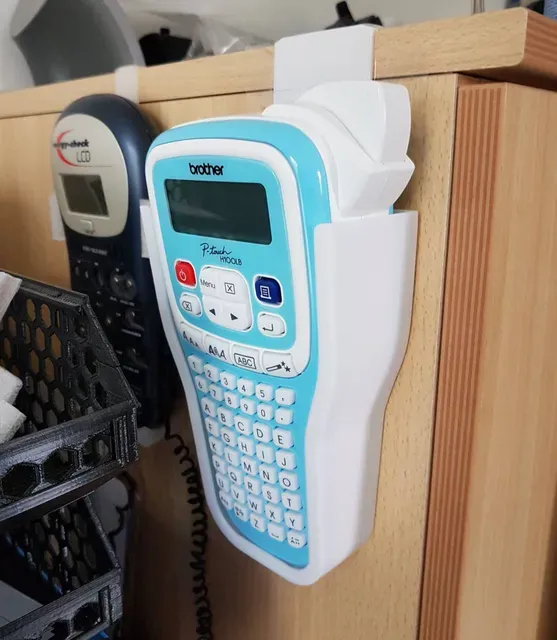

I needed a holder for my Brother P-Touch H100 to mount it to the wall or the side of a cabinet. As I didn't want to drill holes into the furniture I designed it with a hook that can be attached to the side of a cabinet - or as in my first case to the side ladder of a rack.

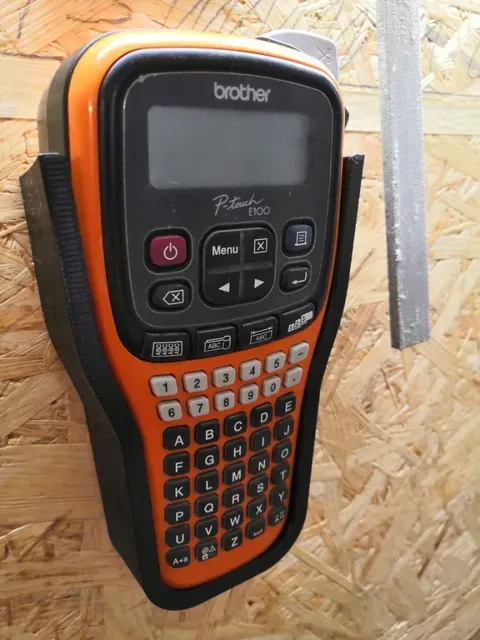

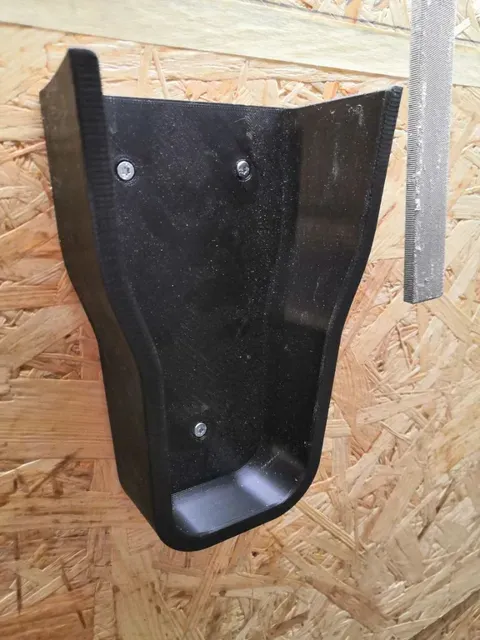

For a friend I also created a version to be screwed onto the wall in his workshop. For this you need three 3.5mm or 4mm countersunk screws.

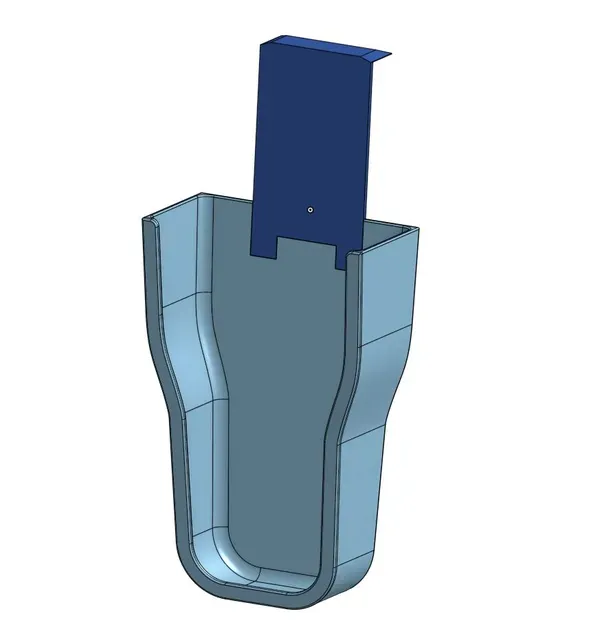

For easy printing of the cabinet hooks I separated the holster from the hook, which is attached to the holster with with four little pins and can be fixed on the cabinet or rack simply with a piece of Scotch tape preventing it from falling off accidentally. (I didn't even glue the hook to the holster, but you might want to)

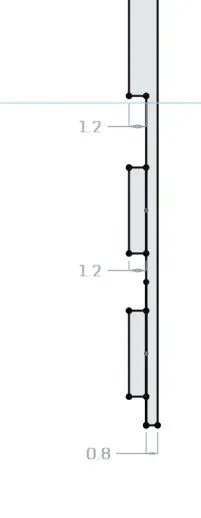

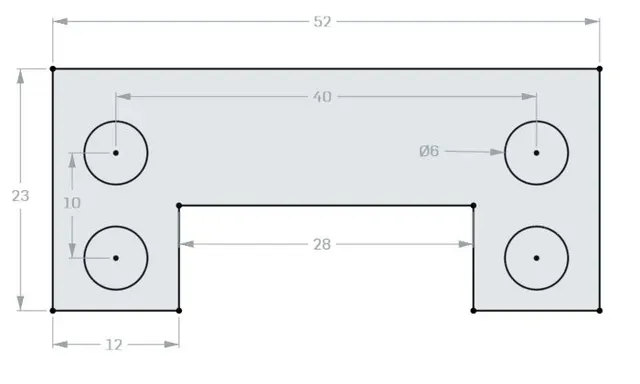

In case you need to design your own hook: I attached sketches of the hook base with the 6mm pins, which I drafted 1° (i.e. 1 degree conic). Or if you need some special hook, leave a comment and I might add another one for you.

No support is required for printing, Just print everything lying flat on its back.(just added the ..-flat versions for easier use of the model)

I printed them in PLA which worked perfectly fine (holders are in use for some months already)

This model is also available on Thingiverse: https://www.thingiverse.com/thing:5531384

Update 2022-09-26: Added a simple wall mount with a single hole which can be used to hang P-Touch on an existing hook, screw or pegboard pin. The hole is triangle shaped to make sure it hangs vertical. Max diameter of the screw or pin: 10mm

Update 2023-11-14: Added wall mount for Brother H110 which is thicker at the bottom. CAUTION: I couldn't test it myself yet - waiting for feedback of requestor.

Update 2023-11-16: Based on the pictures of the first make of the H110 model I made some minor modifications: reduce width at the top by 1mm, increase fillet circle of the bottom corners by 2mm and add a cut-out on the right side for the cutter. Again: please give it a try, I can't test it myself as I don't have a Brother H110 (only a H100). Renamed previous version to V0
