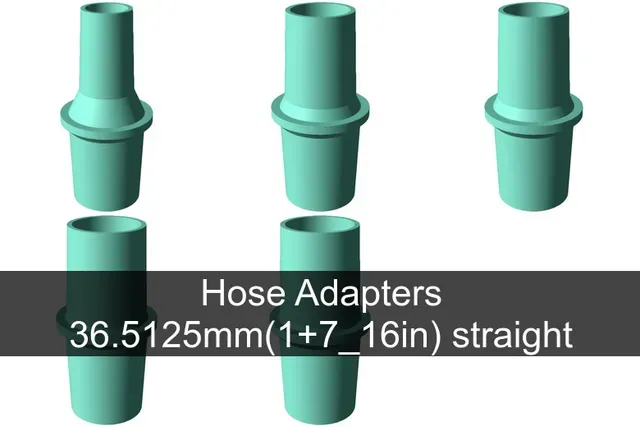

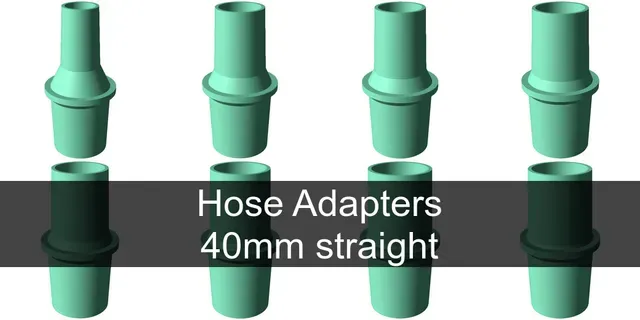

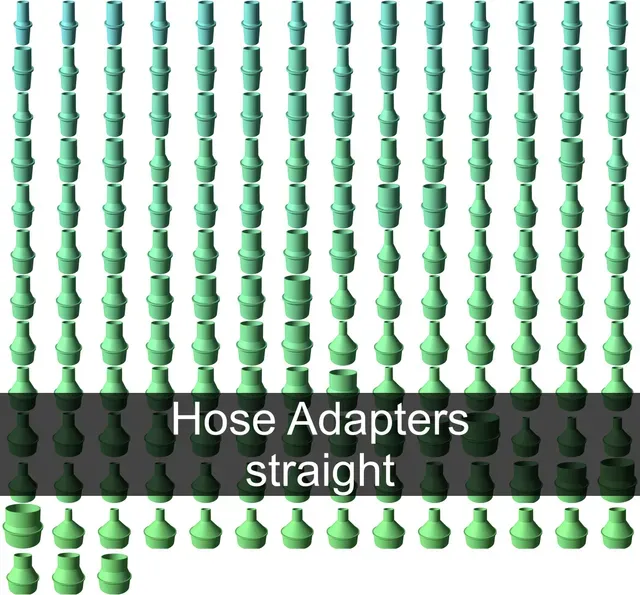

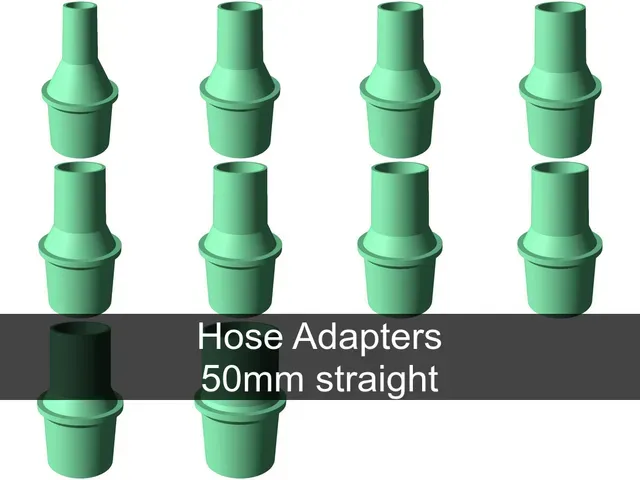

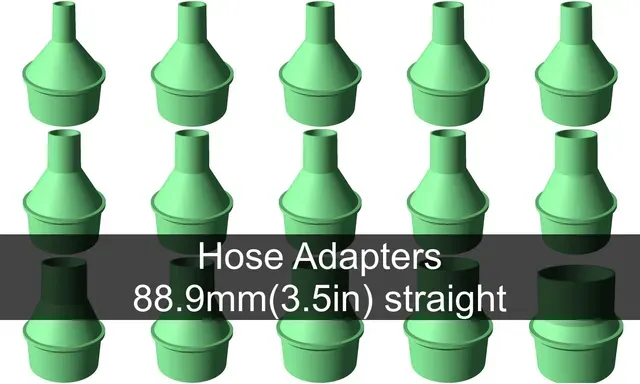

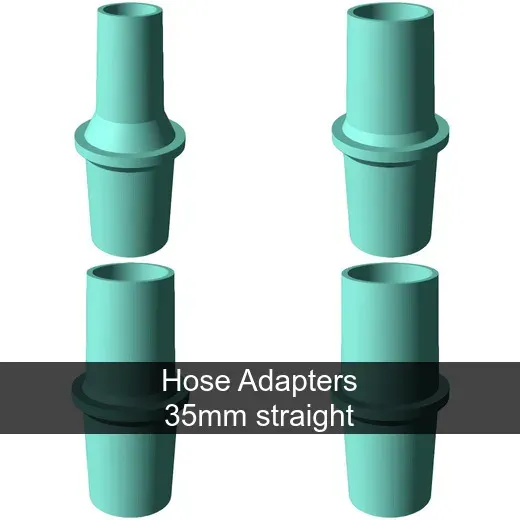

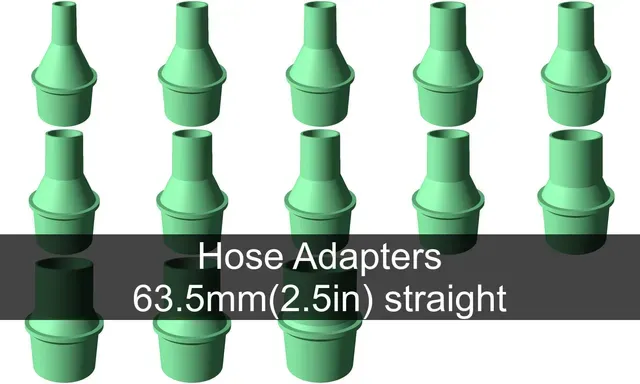

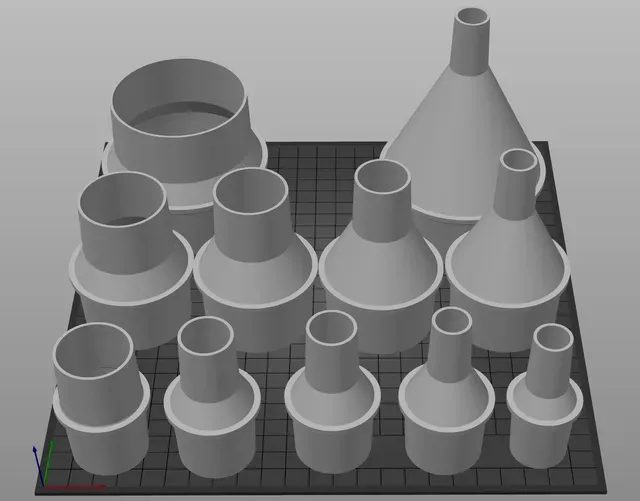

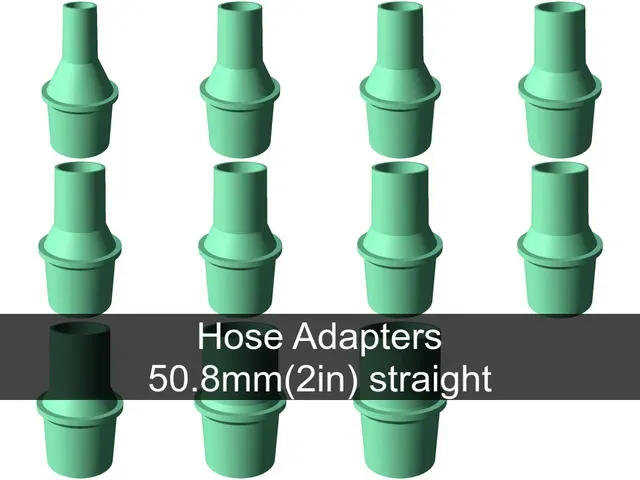

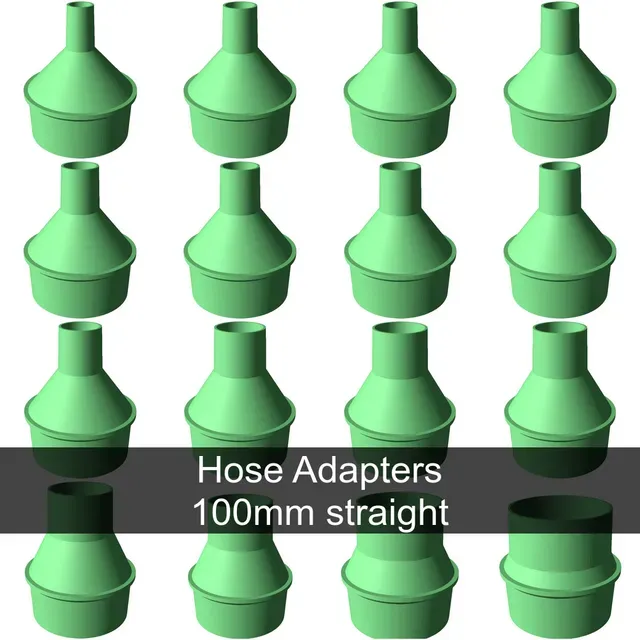

Vacuum hose adapters for all common sizes

Hose adapters for all common (at least what I could find online) hose sizes.

All adapters have:

- Each size has an option of Outer Diameter measurement or Inner Diameter. - Outer Diameter (OD): Intended for the printed tube to go inside your existing hose. - Inner Diameter (ID): Intended for the printed tube to go over your existing hose or nozzle. - 40mm long connector at each end - 3mm taper on each connector, from -1.5 to +1.5 - Wall thickness of 2mm - A hose stop on the large end These were all generated with this OpenSCAD Parametric model . If any of these don't suit you can customise your own, or let me know and I can generate it.

Related models Hose Fittings collection Parametric model (used to generate all the below models)

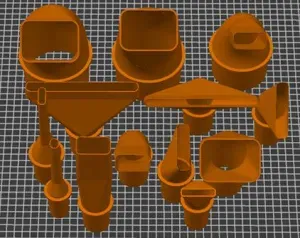

- Vacuum nozzles for all common hose sizes - Vacuum hose flanges to connect to flat surfaces - Dyson V6 hose attachments - Vacuum hose adapters - Straight hose adapters - Y connector / splitter for all common sizes - 30° elbow hose adapters - 30° tapered elbow hose adapters - 45° elbow hose adapters - 45° tapered elbow hose adapters - 90° elbow hose adapters - 90° tapered elbow hose adapters - Magnetic Hose connectors - 50mm magnetic hose connectors - 100mm magnetic hose connectors - Barbed tube connectors - Tube Fittings 4mm-24mm - Vacuum hose to tubing adapters for all common sizes - Tube Y connector / splitter fittings 4mm-24mm edit 2023-02-11

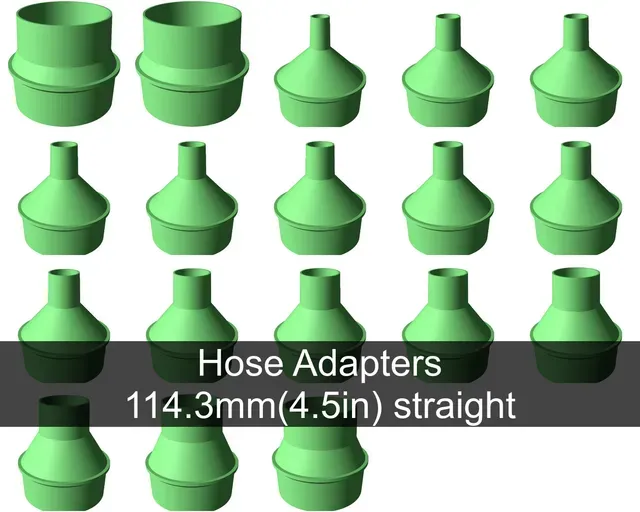

- Added sizes, 4.5", 5", 120mm, 125mm, 150mm edit 2023-02-02

- Added Internal Diameter (ID) connections. Previously I only supported Outer Diameter (OD) only. Now there is ID-ID, ID-OD, OD-OD. - Removed redundant sizes where the Metric and Imperial sizes are very close. I.E. 1.25in is 31.75mm, so 32mm is not needed. - Included connectors for connections two of the same size hose together. edit 2022-12-06

- Added hose size 1 7/8in
