VESA Adapter for Mosaic Palette 3/3 Pro

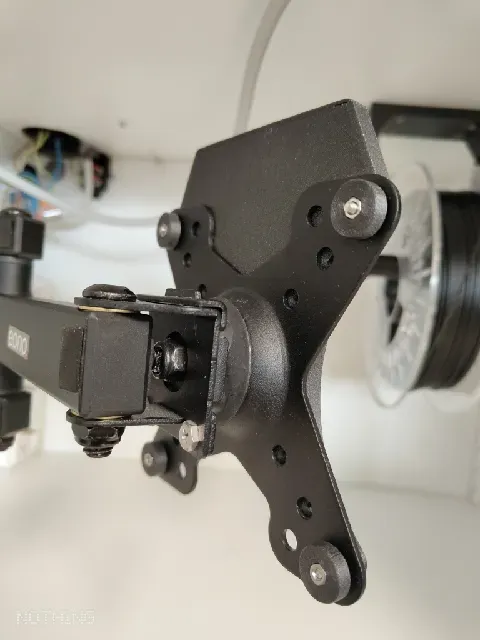

This adapter allows you to mount a Palette 3 or Palette 3 Pro from Mosaic Manufacturing on standard VESA mounts for TVs and monitors. It is suitable for 100mm, 75mm and 50mm VESA mounts.

It is designed for 12mm M3 screws and M3 nuts.

I added washers to hold the nuts and the adapter itself in place.

Print Since the pallet is relatively heavy, the top of the holder should be printed with 100% infill. You should choose a stable material. Shiny or matte filaments are not recommended. Everything can be printed without support.

Washers The holes in the washers need to be pierced to get screws in. This is done to print the washers without supports.

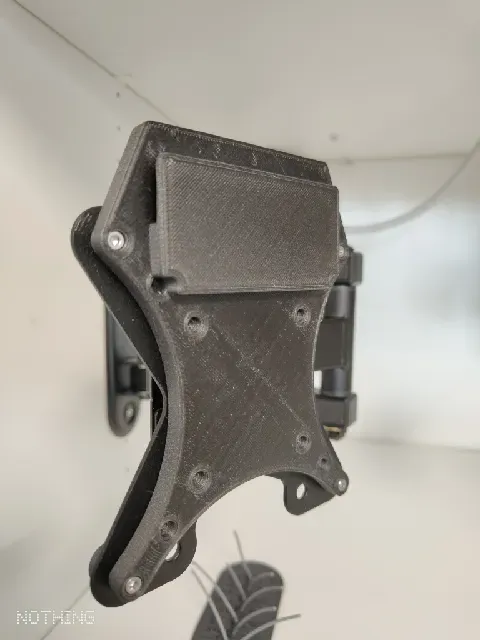

Adapter I added a small support in the adapter to make it easy to print the overhang and remove the support. You can also use the file without a support, but then you have to manually add a support. Caution: the tight spot might be too tight to remove a large support structure.
