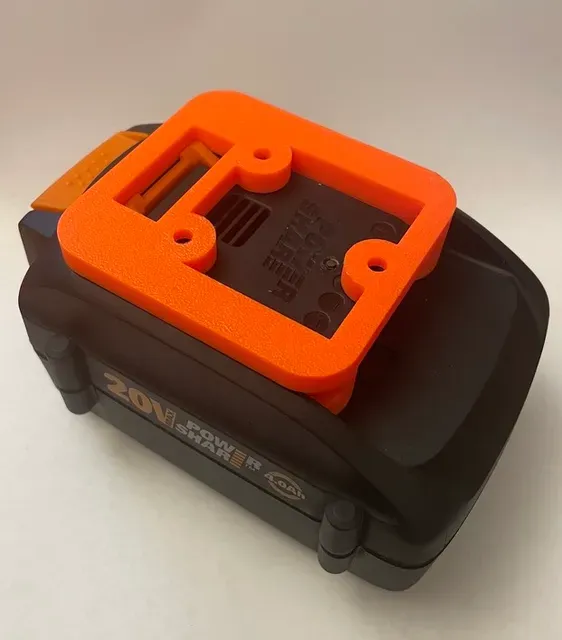

WORX PowerShare 6-pin 20v battery holder/mount

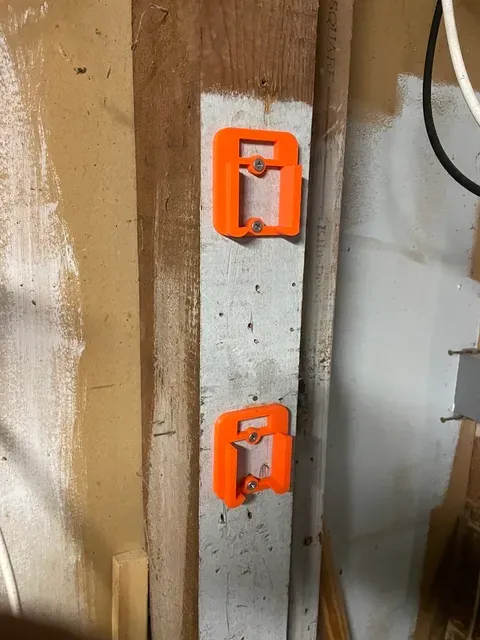

Although there are several models available on another site… I found them all to be unnecessarily too big and complex. Taking inspiration from Area51 's nice and minimal mount for Makita batteries, I set out to design something sturdy and function, yet be very minimal. The mount works great for my batteries and covers up the positive and negative terminals on the battery (just in case).

It prints in PLA in about an hour using my settings, which include a .4mm nozzle, .2mm layer depth, 15% infill and my settings. No supports are needed.

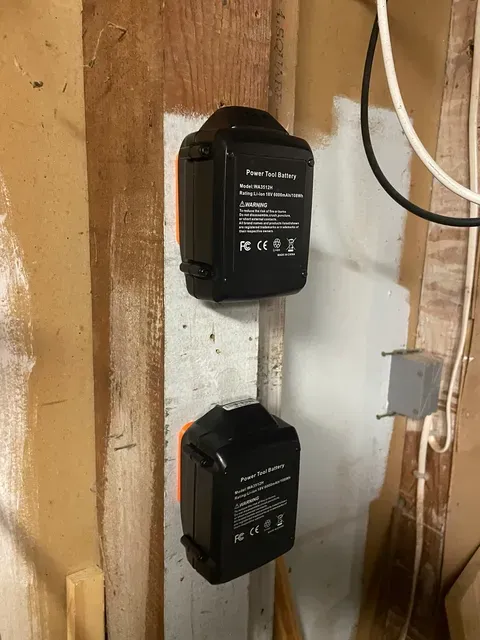

Works (haha) great with my WORX 4Ah batteries and aftermarket 6Ah batteries as well.

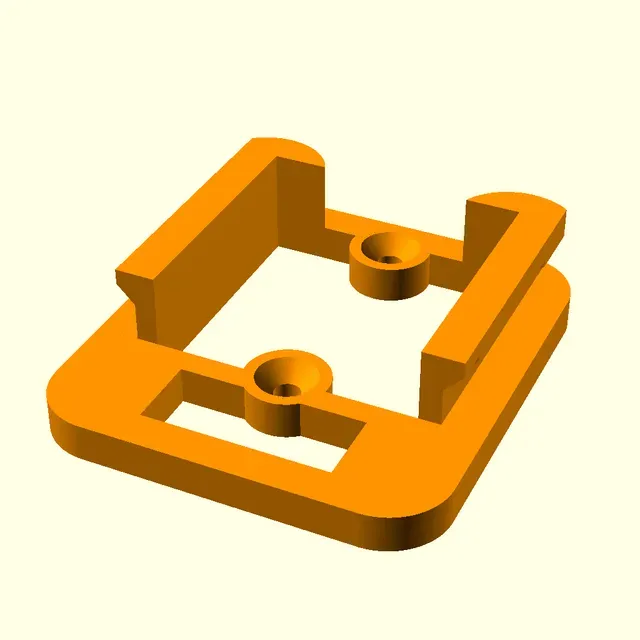

OpenSCAD file provided. Make sure to download the “param.txt” file as well as all the various measurements are in that file.

UPDATE 2022-10-05: Changed screw chamfer - was too narrow at the top. Added a 3-screw mount version.

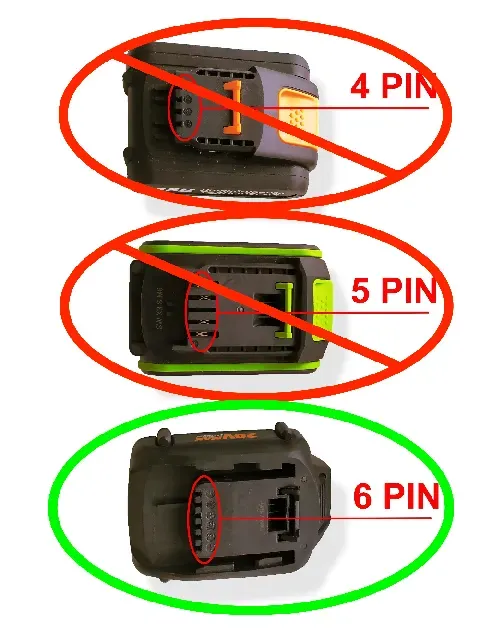

UPDATE 2024-11-28: This is for the 6-pin WORX 20V PowerShare battery. Unfortunately, WORX has changed their batteries over the years. Please check the images to make sure your battery is the 6-pin version before printing.
