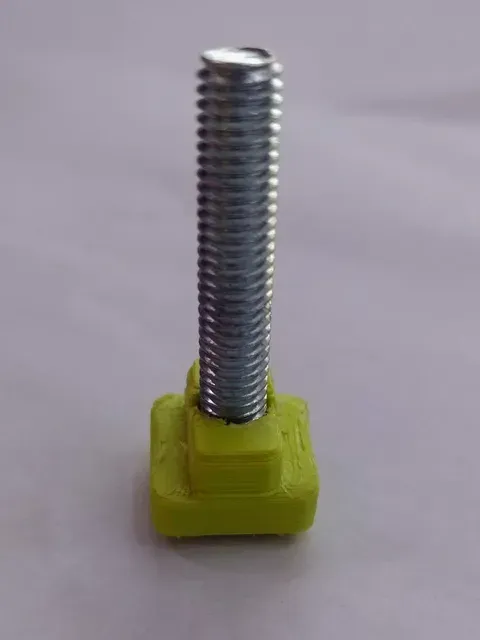

T slot nut for 3018-pro router table using bolts instead of flat screws

Remix of FEW's T slot nut using G-workz3D's m6 nut to use with bolts instead of tapered flat head M6 screws. Screw hole is left intentionally a bit snug and will not allow bolt to enter without very minor filing. I wanted them to fit and not back out on their own. Cutting a .2mm oversized center hole should allow this without filing.

I did also remove .2 or .3mm in thickness from the two sides that slide in the T slot. They were a little tight for my Twotrees 3018-pro.

Printed with Inland Pro PLA Lulz Green, 0.6 hardened nozzle (.4 would work better here), 220c, .24 layer height. 4 walls, 15% infill, with top of model, as installed in CNC table, facing the build plate using supports for the two sides for the T slot.

License applied as per original post by FEW. Original file - https://www.printables.com/model/214435-t-slot-nut-for-sainsmart-3018-pro-router-table

Nut used to model this by G-workz3D - https://www.printables.com/model/192661-m6-nut
