SBox for MINI - stackable toolbox system

Support me & Buy a T-shirt

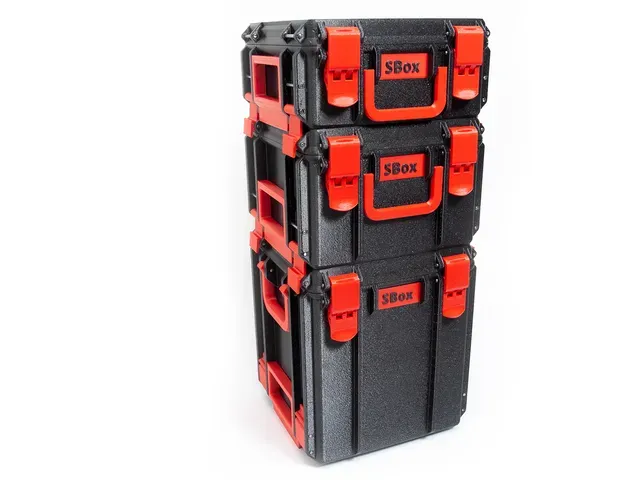

Sizes

All three sizes are fitted for Original Prusa MINI .

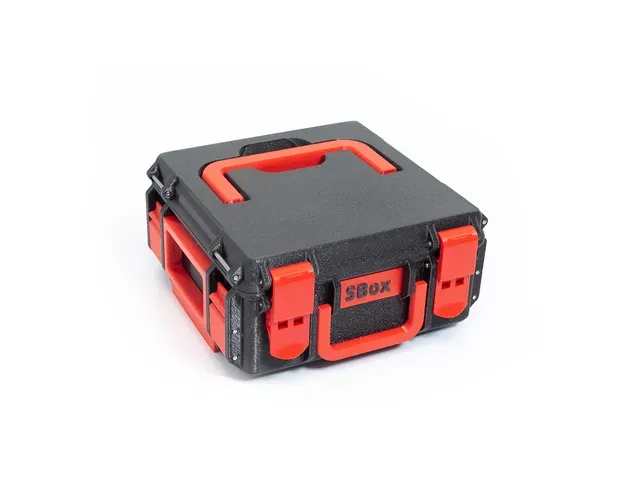

Small size - 180x180x80 mm

Medium size - 180x180x120 mm

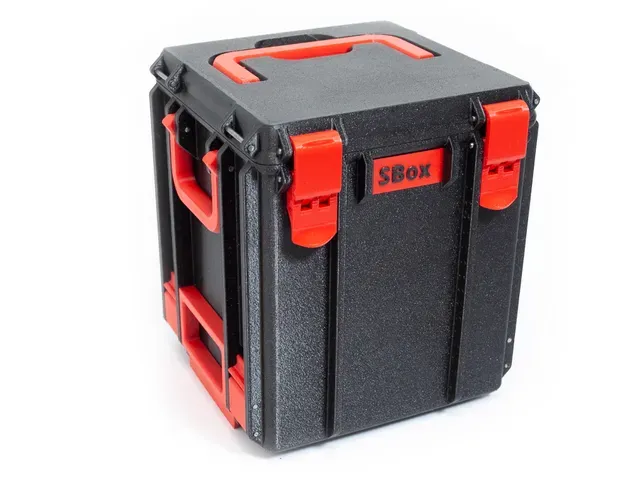

Large size - 180x180x180 mm

Only small and medium size is equiped with front handle. Medium and large size can by optionally equiped with tiltable side top handles. All three sizes can be assembled with or without top handle (for large size is recommended).

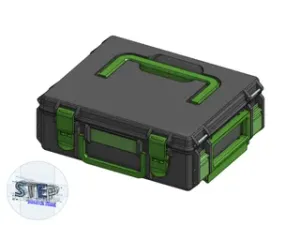

The bigger size of SBox for Original Prusa i3 MK2/3 is available - SBox for MK2/3/4 - stackable toolbox system and is intended for printing on the Prusa MK4 size 3D printer.

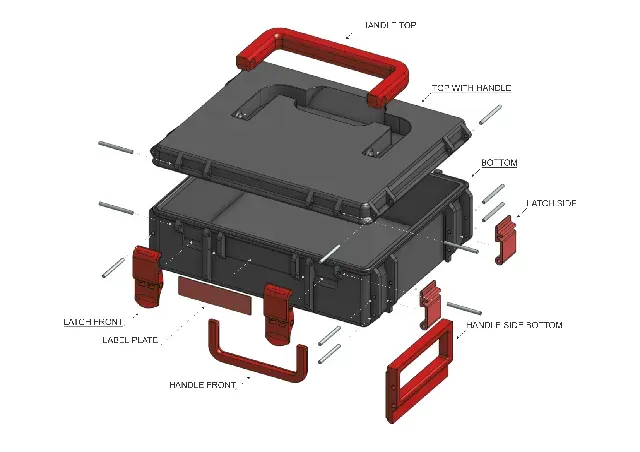

Assembly

list of non-printed parts

- 8 pcs - metal axis 36( 35 )mm x (2.8 - 3)mm or M3 screw with internal hex head - 8 pcs - metal axis 39( 40 )mm x (2.8 - 3)mm or M3 screw with internal hex head - 4 pcs - metal axis 22( 20 )mm x (2.8 - 3)mm or M3 screw with internal hex head (for Medium and Large size) - 2 pcs - metal axis 24( 25 )mm x (2.8 - 3)mm or M3 screw with internal hex head (for top with handle) 2 pcs - metal axis 26( 25 )mm x (2.8 - 3)mm (for hinges)

You can use Locating Dowel or Cylindrical Pins or Stainless Steel Shafts in M3 diameter (lengths 35mm, 40mm, 25mm, 22mm) as a metal axis. T-shirt

Support me & Buy a T-shirt

Extensions

All parts of SBox - stackable toolbox system

Cantilever box for MINI

Drawers for MINI

Crate for MINI

Perforated Crate for MINI
