IKEA Container SAMLA Spool Holder / Storage

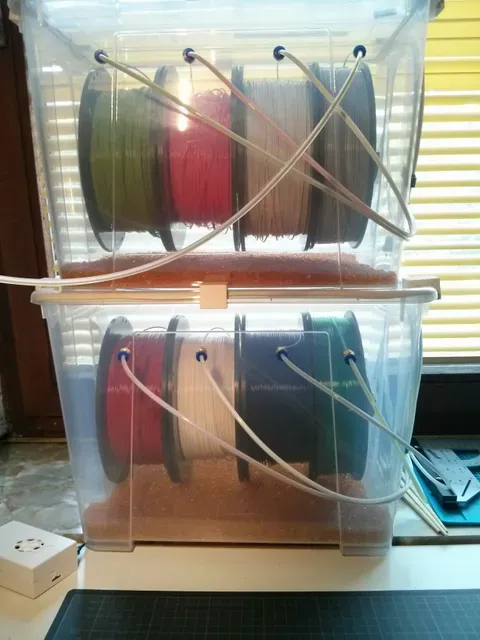

As I saw the video from Thomas Sanladerer I loved his idea of an filament storage which also serves as a spool holder so much, that I've build my own version based on IKEA container SAMLA.

You can find the original video from Thomas here: https://youtu.be/OY5n9q-wS7k and his site here: https://goo.gl/UU7dnV

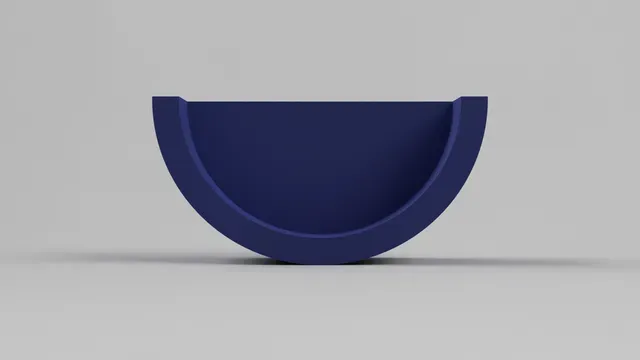

I used some contact cement ( https://goo.gl/7FtFvY ) to glue both spool holters to the inside of the container. The mounting helper did a great deal to keep them at the same height. As an axis I used DN50 (sewage?) pipes like this ( https://goo.gl/2rWFvj ). Mine was with 50.25mm slightly thicker the 50mm but worked perfectly for rigid ink PLA, ASA 1kg spools and PLA from Das Filament (0.8kg spools). For Prusa filament spools I had to sand away a tiny bit from the pipe but now it works, too.

I've used some pneumatic connectors ( https://goo.gl/HSrQXJ ) and PTFE pipes ( https://goo.gl/ddFPgf ) to feed the filament to the printer. The connectors and pipes should have an 2 mm inner diameter and a 4 mm outer diameter.

To keep everything dry I've added Silica Gel granules ( https://goo.gl/ddB1sd ).

To seal the container I've used rubber seals for windows like this https://goo.gl/g6DkH3 . Together with my clamps it seals well enough from my use case.

I can't upload Fusion 360 files here, but you can download those from my Thingiverse page: https://www.thingiverse.com/thing:2458336

IKEA box SAMLA cover clamps: https://www.prusaprinters.org/prints/2943-ikea-container-samla-cover-clamps

IKEA box SAMLA Spool holder with mounting helper: https://www.prusaprinters.org/prints/2944-ikea-container-samla-spool-holder-storage

IKEA box SAMLA Spool holder spacer: https://www.prusaprinters.org/prints/2942-ikea-box-samla-spool-holder-spacer

PTFE tube caps with filament catch: https://www.prusaprinters.org/prints/2940-ptfe-tube-cap-with-filament-catch

PTFE tube organizer: https://www.prusaprinters.org/prints/2462-ptfe-tube-organizer

PTFE tube mount: https://www.prusaprinters.org/prints/2458-ptfe-tube-mount-replacement-for-pneumatic-connecto

Print instructions

Resolution: 0.2mm

Infill: 30%

Supports, Rafts: No
