cooling ducts for BMG/Left SV01/03 upgrade

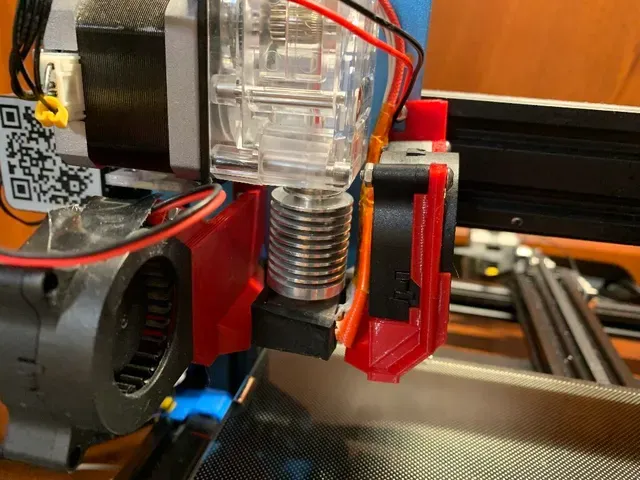

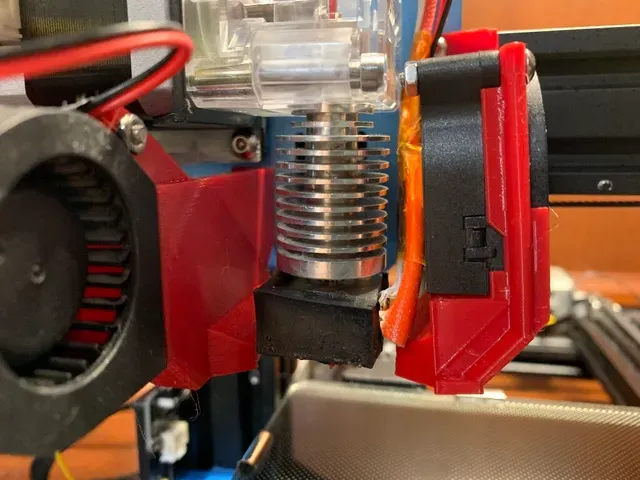

Complete part cooling and heatbreak cooling solution for a BMG/Left upgrade of SV01 or SV03 (Sovol). Total weight of the printed parts is 30 grams or less.

All fans are 4020: two blowers and one axial.

These are an adaptation for the BMG extruder of the following original designs for part cooling fan ducts:

- https://www.printables.com/model/158922-the-no-strings-part-cooling-fan-duct-for-sovol-sv0 - https://www.printables.com/model/158915-2nd-part-cooling-fan-for-sv01-by-sovol-3d-rev5 Rev b has beefier vent holes.

Print Settings

Rafts:

No

Supports:

No

Resolution:

0.2 mm

Infill:

15-100%

Filament: any PETG any

Notes:

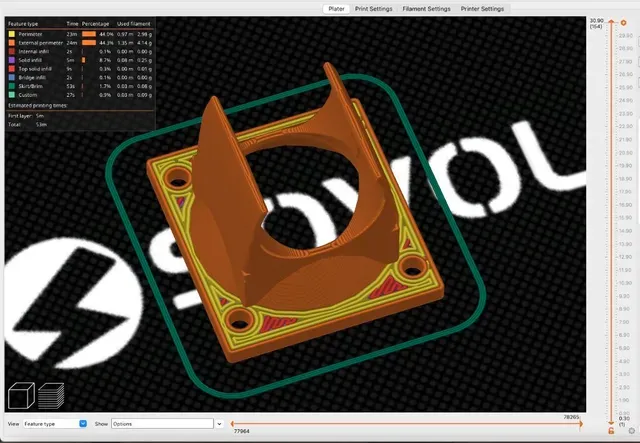

Print in the orientation shown in the screenshots. Supports are built-in where needed, no additional supports are necessary.

Category: 3D Printer Accessories
