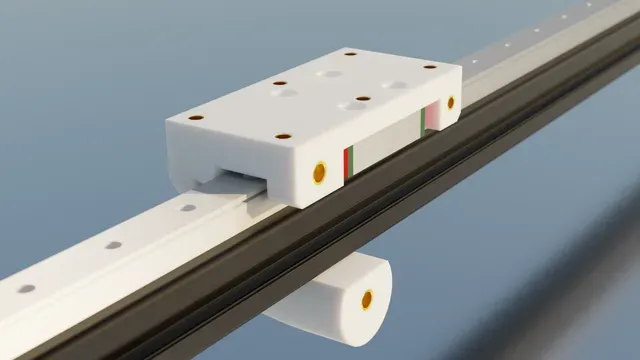

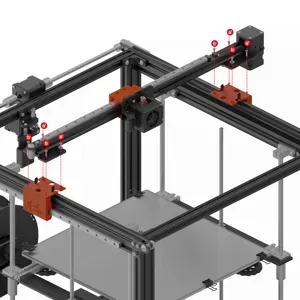

Ender 5 Plus Linear Rail X-Axis Conversion

This is a remix of the linear rail X-Axis conversion kit by SnakeP on thingiverse .

It's different in 4 ways:

- a bit easier to install (comes in two parts - no worries, it's still incredibly strong)

- the top can hold any upgrade the user would like to design (6 mounting points for M3 screws.)

- if desired you can attaches the stock plate to this adapter with a third screw. the stock plate has to be drilled though. Note: It's dimensioned for an M3 Insert! The other two that connect to the plate are M4 instead!

- the geometry is a little cleaner and simplified.

Design your own compatible upgrades like a custom strain relief, easily mount your accelerometer for input shaping with Klipper, add a dragchain that works for your setup, add more stability to your DDX Hotend/Extruder or do all of it at once :D

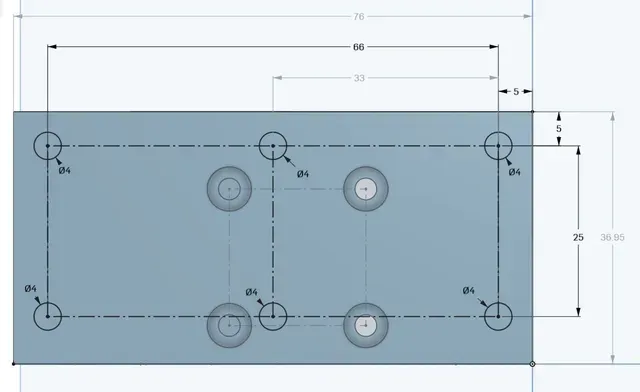

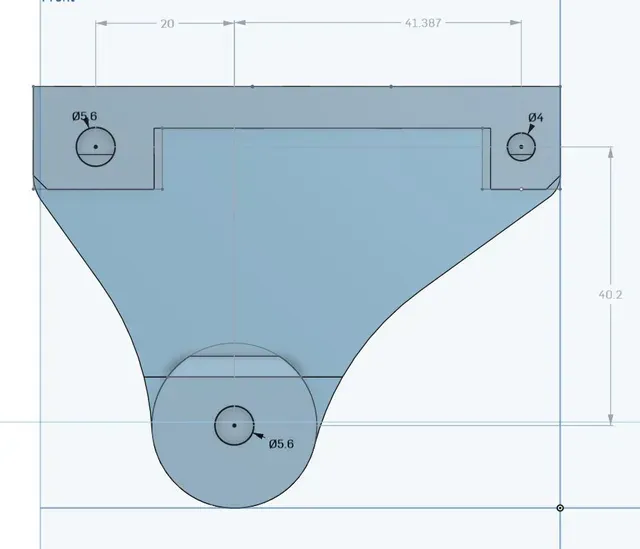

The modular platform is designed to work with Ruthex M3 threaded inserts. You can find the dimension/positions of the mounting points in the CAD-drawing in the pictures

If you build and upload compatible plates, let me know. I will gladly Link your creation!

Required:

- MGN12H rail and bearing ( link to the MGN9H version by DunDundundun)

- 9x Ruthex M3 threaded inserts

- 2x Ruthex M4 threaded inserts

Print with PLA, PETG or PA12 and give it 3 perimeters for the inserts to work properly.
