Virpil VPC WarBRD Base Desk Mount

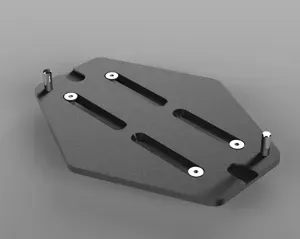

A desk mount for the VPC WarBRD Base from Virpil. This mount turns the joystick base 90° from its normal mounting position, so the base isn't protruding from the desk so much. You should be able to mount it on a desk with a thickness from 30mm to anything lower. I mounted mine on a desk with 28mm thickness. I also included Knobs for M6 screws, a plate for the bottom of the base and a boltcap for the mounting screws to prevent scratches on your Desk.

You also need:

-2x 30mm - 45mm M6 hexagon screw (depending on your desk thickness)

-2x M6 selflocking Nuts

-4x M4 30mm screw

-4x big M4 washer

Print instructions

Print the desk mounts at least with 7 perimeters and top/bottom thickness at 1.2mm.

Those parts have to be really stabel and stiff. In my experience a thick shell is more suitable for that than high infill percentages. For this parts chosed 22%.

I printed with PLA and a 0.15mm layer height, in addition I changed the extrusion width for infill to 0.58mm for higher layer adhesion.

The printing time for one part is about 9h.

The other parts can be printed at normal settings.
