BIQU H2 Ender 3 +Pro Mounting Bracket for BL Touch

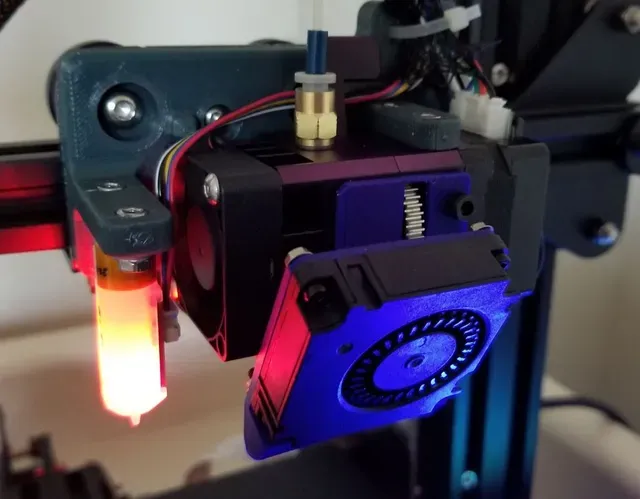

Update: Modified the original model to the “thin” model to bring the print head 6 mm to the right to keep on the build surface from X=0. This aligns with the stock nozzle position on the Ender and also allows for clearance to the bolts on the back of the plate into the Biqu H2. I moved the BL Touch the same amount to keep the same offset below. Additionally, I reduced the thickness 3.3mm to only just clear the bosses that hold the stock Ender heatbreak.

***

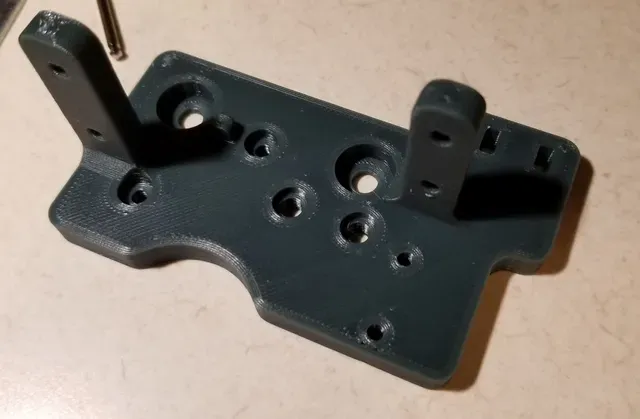

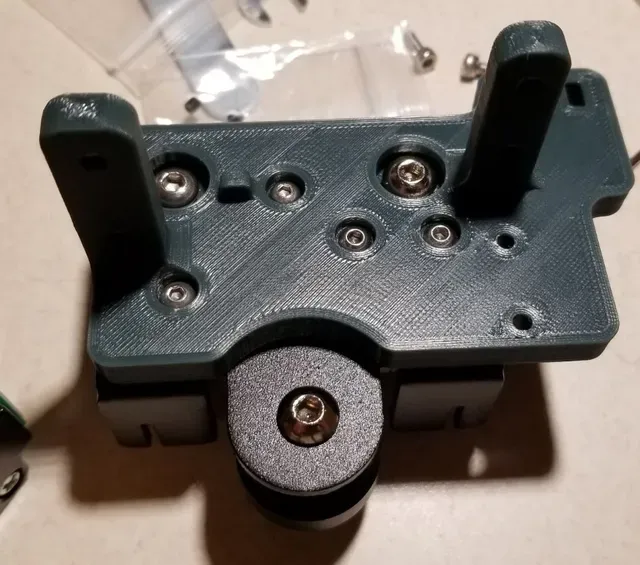

Slight modification to change the source step file to the bolt pattern for the x-carriage on the Ender 3 (validated on Creality model) and Ender 3 Pro. Used as many bolts as possible to add stiffness. Using the same 7mm thickness from the BIQU mount which unfortunately limits build volume by 6 mm. I reused my z-axis limit switch on the right hand side of the 4040 section (Ender 3 Pro) and would up with a 214 mm Y-axis build length. I might try to update and reclaim those 6 millimeters.

Printed in FlashForge ABS Pro Grey with 0.4 mm nozzle and 0.2 mm layer height. I upped the perimeters to 4 and upped a gyroid infill to 50% for more stiffness.

BL Touch offset (z offset is approximate)

* +-- BACK ---+ * | [+] | * L | 1 | R <-- Example "1" (right+, back+) * E | 2 | I <-- Example "2" ( left-, back+) * F |[-] N [+]| G <-- Nozzle * T | 3 | H <-- Example "3" (right+, front-) * | 4 | T <-- Example "4" ( left-, front-) * | [-] | * O-- FRONT --+ */ #define NOZZLE_TO_PROBE_OFFSET { -38, .2, -.64 }
