Box for Wemos D1 mini/pro

This is a second version of my previous Wemos boxes ( https://www.thingiverse.com/thing:1995963 ).

I have made files for "Wemos D1 mini" and "Wemos D1 mini pro".

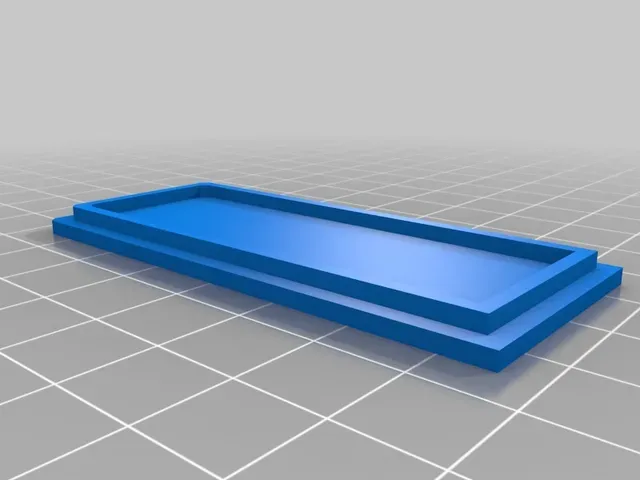

I also made two lids, one closed and one with an opening for the Wemos OLED 0.96" shield in separate files from the boxes.

There are versions with a cable port with 4mm diameter, and also a long version where a wemos prototype shield can fit besides the Wemos.

The USB port is now rounded. The lid can be held in place by a rubber-band between the mounts and over the lib.

Print Settings

Printer:

A8

Rafts: No

Supports:

Doesn't Matter

Resolution: 0.40

Filament: https://addnorth.com/sv/shop?material_name=PETG PETG

Notes:

I use PETG with 245 degrees and BuildTAK bed at 60 degrees.

Post-Printing ============= Wemos board placement

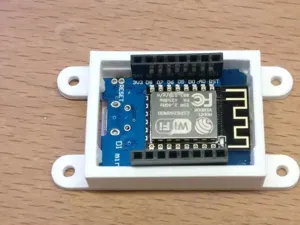

The "Wemos D1 mini" board with a metal lid is mounted with the lid upwards and the USB connector downwards.

The "Wemos D1 mini pro" board with a antenna connector is mounted with the antenna connector and the USB connector upwards..

Category: Electronics
