Voron 0.1 Foldable Spool Holder

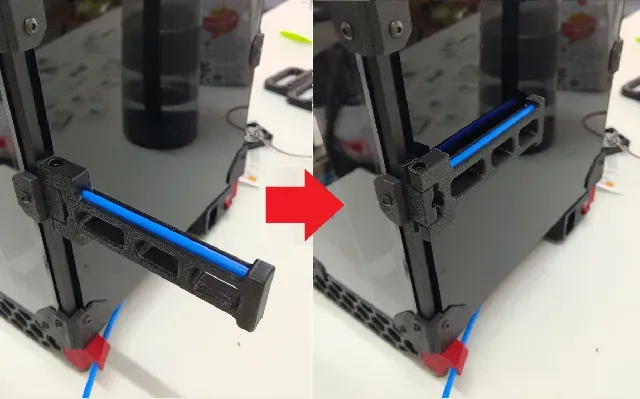

Protusion from original Voron 0 spool holder is getting in the way? Too much work to remove it and leave 1 nut hanging loose inside the frame?

Then you'll need this Voron 0 Foldable Spool Holder!

Features

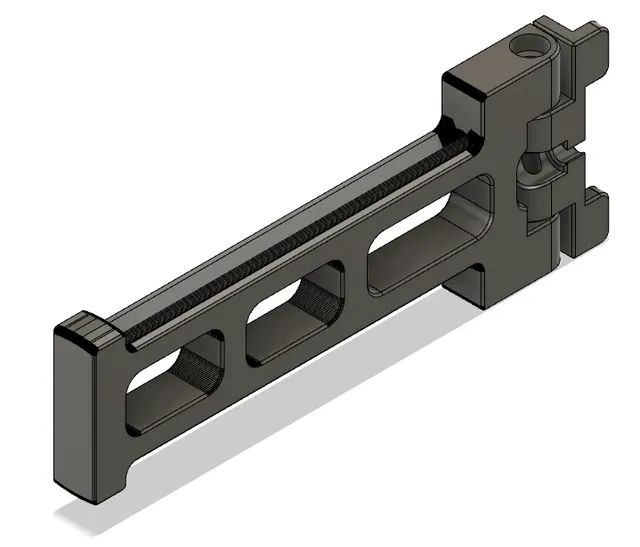

- Keeping the dimension & look of original spool holder as much as possible. (This means you can re-use the PTFE tube from the original spool holder) - Foldable, reducing the overall dimension of Voron 0 for easy storing / traveling. - Compatible with any acrylic panel thickness less than 3 mm. - Easy 2-part assembly.

Assembly Instruction

Print Instruction:

- Support (Touching BuildPlate) may be required for “Connector_V0”. No support required for “Holder_V0”. - Recommended to print in default orientation. - Recommended print setting: - ABS / PETG - 40% Infill - Wall Count: 3 - Top / Bottom Layer: Minimum 4 Parts Required:

- M3 x 35 SHCS / BHCS Screw x 1 - M3 x 10 SHCS / BHCS Screw x 1 - PTFE Tube x 2 (tubes from original spool holder is usable) - [Printed Part] Connector_V0 x 1 - [Printed Part] Holder_V0 x 1 Assembly:

- Remove the original spool holder. You can keep the original M3 x 12 screw, it will not be used in this assembly. - Secure the “Connector_V0” onto the frame using M3 x 10. Note: Make sure that the fillet (rounded edge) is facing the acrylic! - Insert PTFE tube x2 into “Holder_V0”. - Place “Holder_V0” towards the “Connector_V0”. Then, use M3 x 35 as a shaft to connect the 2 parts. Do not overtighten the screw! Note: Make sure the fillet (rounded edge) of “Holder_V0” is facing acrylic too. Note: Make sure the countersunk on “Holder_V0” is facing upwards. - Finally, tighten the M3 x 35 screw slightly until the folding operation of the spool holder will hold itself by slight friction (so it won't swing free and slaps around when carrying you printer!) Note: Seriously, don't overtighten the screw. It may not able to fold. - Enjoy! Note: Made to support Voron 0.1, however should be able to support voron 0.2 as well.
