Halo Face Shield

Inspired by the 3DVerkstan face shield, but with added stability due to the F1 halo inspired nose bridge. Can still be worn over glasses comfortably.

Prints in 1 piece with no supports within 1hr on my prusa mk3. Prints best in PETG, it can be printed in PLA, but the fit might be a bit tight as it would be more rigid.

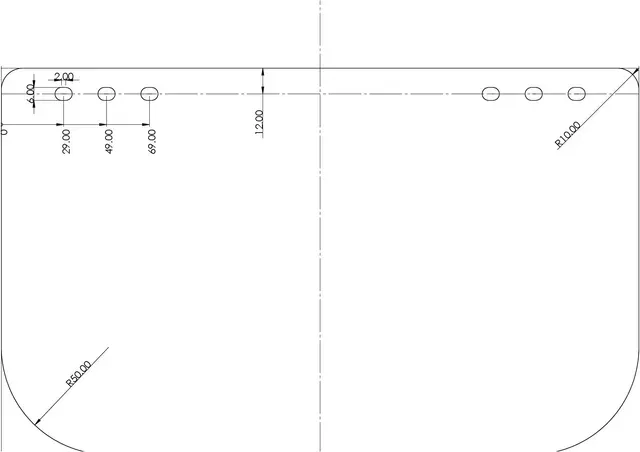

Face shield is standard A4 size. Use the PDF face shield template (link in the comments) and a hole puncher to punch the mounting holes, pegs are spaced 20mm apart. Use a sharp scissors to cut the corners.

You can use the Prusa Face Shield bottom reinforcement for more curvature support:

https://www.prusaprinters.org/prints/25857-prusa-face-shield

Any feedback is greatly appreciated!

Print instructions

Prints best in PETG. No need for supports.

For a 0.4mm nozzle print with 5 walls/perimeters to get it 100% solid.

Face shield mounting holes are 20mm apart, use a hole puncher and the attached PDF template to make the holes. Use a sharp scissors to cut the corners.
