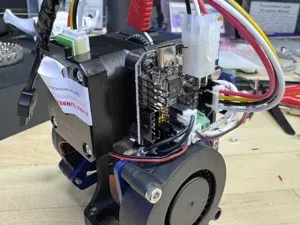

BTT EBB42 Toolboard BondTech LGX Lightweight Direct Mount

Lightweight mount for the EBB42 toolboard directly mounted to Bondtech LGX. Suggested printing with a material with good mechanical properties (e.g. PC-CF) due to the thinness of the part.

BOM

- 1 x Bondtech LGX - 1 x BTT EBB42 - 4 x Male-Female Standoff M3 screws (these come with the LGX, but not installed by default) - 4 x M3 x 8 screws for mounting - Tipties for cable management If you are having issues connecting your hot end heater cartridge to the toolboard, either use tweezers, or insert and tighten the ferrules/wires before screwing the toolboard + mount to the LGX.

Onshape Link
