Typ 2 EV Charging Cable Bracket (Typ Mennekes/BMW/Jetty)

UPDATE

Now avaliable for BMW and Jetty Typ2 Plugs

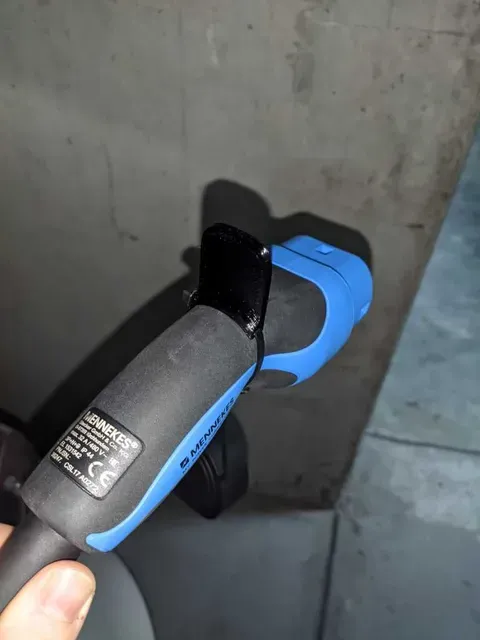

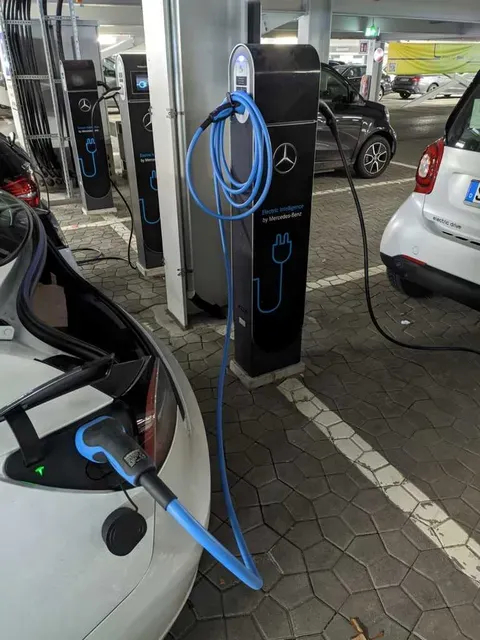

My Simple Design for a Bracket to mount on a Mennekes Typ 2 Charging Cable. This allows you to organize the cable while charging an avoid it to sit on the curb in the wet and muddy environment. :-) Pictures speak for themselves.

As far as i know, there a two Versions of the Mennekes Plug, one is a little slimer around the Grip. If you have this you may need to scale down the part a little. This one is for the bigger one. Also tried it on a Delphi Cable.

V1.0

Perfect fit is only "guaranteed" with

- Mennekes Typ 2 Charging Cable, 7,5m, SN No: 36247. CSL17A0272 - Mennekes Typ 2 Charging Cable, smaler Grip, as seen in pictures: scale down to x/y 80% for use with Version 2: still best fit on Mennekes Typ 2 Cabel, but should fit better on other cables as well, try printing in TPU

- V2.0 - larger Paddel - for smaler Menneks Plug print X/Y 95% - highly recommend printing in TPU - more to come... What you can try: If it won't fit, you can measure the diameter of your Plug and the scale the part a little, print 2 Layers and make a first fit, further adjust till it fits perfectly. If you achieve good fit let me know the settings and Supplier and SN of your cable.

Parts you need:

- Bracket (printed) - M3 x 16 Screw (maybe longer if fit is not perfect) - M3 Nut v2:

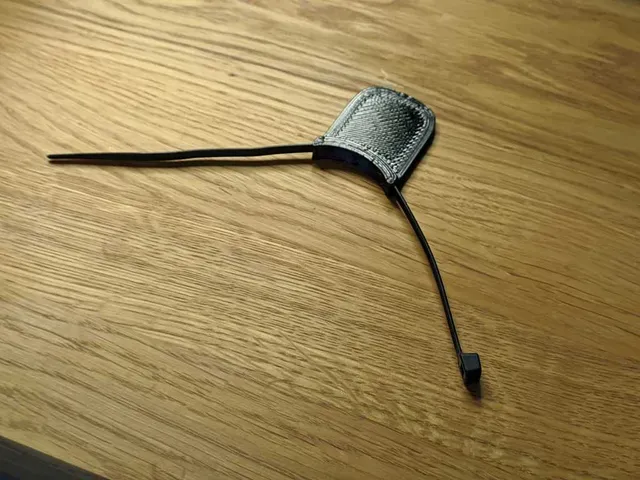

- Bracket (printed) - Cable Tie (max. 4,5 mm wide) Have Fun and Enjoy! :-)

Changelog:

v1: see above

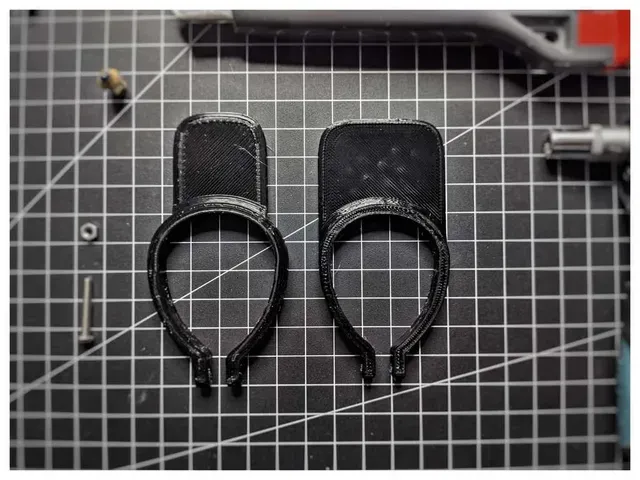

v2: Version for use with cable tie, less material, faster print, higher compatibility, printing in TPU will increas compatibility even further

v2_TFF: Version with TFF-Logo, thanks to @endurance1968

V2_Tie_TFF: Version with TFF-Logo, thanks to @endurance1968

V3: Added a parametric Fusion File so you can do easy changes to fit your Cabel perfectly

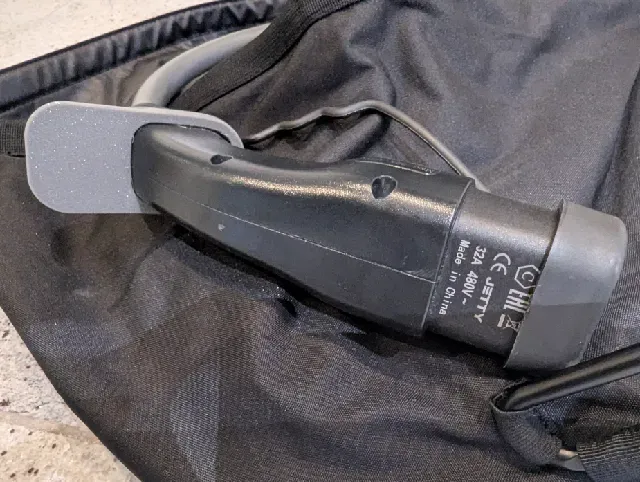

BMW_Halter_v2: added for use with BMW Cables, Jetty Branding

Print Settings

Printer Brand:

Creality

Printer:

CR10S PRO

Rafts:

No

Supports:

No

Resolution:

0.20

Infill:

20%

Filament: ERYONE PETG Black

Category: Automotive
