Pan Tilt Head OT - Digital Bird Camera Motion Control

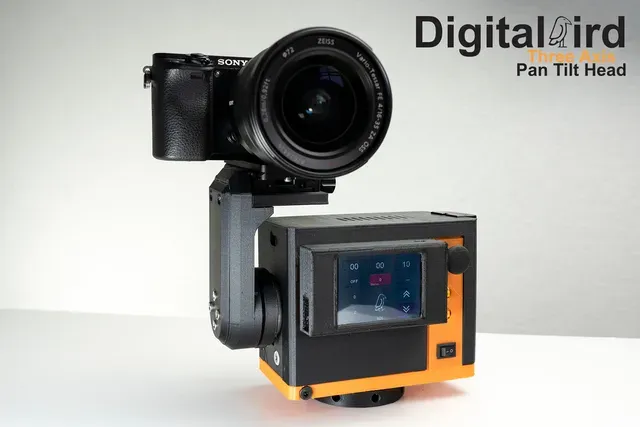

This is the Digital Bird over the top Pan Tilt head part of the Digital Bird motion control system. This is one of two pan tilt heads I have designed for the system the other is a balanced head more appropriate for the mini jib. This head is more compact and is capable of looking straight down however it is not suitable for use on the jib since the balance of the jib is disturbed as the camera moves out.

All parts of the system are WIFI linked and work together or independently to provide a comprehensive motion control system. The system has taken almost two years to develop and has come at some cost. Your support in purchasing the kits is much appreciated and ensures that the system will continue to be developed and supported.

Features:

- 360 deg of continues rotation in the pan axis and 180 deg in the Tilt axis - Capable of lifting a Tilt payload up to 2KG with a 30:1 gearbox and 3KG with the 50:1 gearbox over the full 180 deg of travel more if travel is limited. - Automated mount/dismount via two buttons on the control panel - Sony NP style batteries - 3rd axis support for Focus motor through RJ45 port - Full feature interface though Digital Bird WIFI remote Operating modes:

- A-B straight run - A-B with acceleration controls (ramp/Ease) - A-B-A Bounce mode - Time-lapse mode with built in intervalometer and camera shutter control. - Six key sequencer for more complex moves. - Stop motion functions for animators. - PTZplus real-time camera functions. System Links:

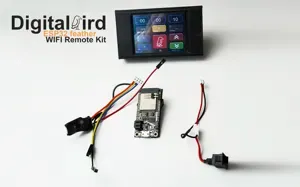

- Component Kits : https://digital-bird-motion-control.myshopify.com - Software : https://github.com/digitalbird01/DigitalBird-Camera-Slider - Balanced Pan Tilt Head : https://www.printables.com/model/326746-camera-pan-tilt-head-digital-bird - Duel action Camera Slider : https://www.printables.com/model/326752-digital-bird-motorized-duel-action-camera-slider - Slider Vertical mounting base : https://www.printables.com/model/326747-vertical-camera-slider-tripod-base - Focus/ Zoom motor : https://www.printables.com/model/326749-focus-motor-digital-bird-motion-control - Digital Pan Head / Turntable: https://www.printables.com/model/326745-digital-bird-video-turntable-pan-head - Compact WIFI controller: https://www.printables.com/model/326750-digital-bird-wifi-remote - Digital Bird Mini Jib: (coming soon) Print Settings

Rafts: No

Supports: Yes

Resolution: 0.2 layer height

Infill: 25-100

Filament: Matt PLA

Notes:

Most parts can be printed with just 25% infill however others need to be very strong.

The following need special care.

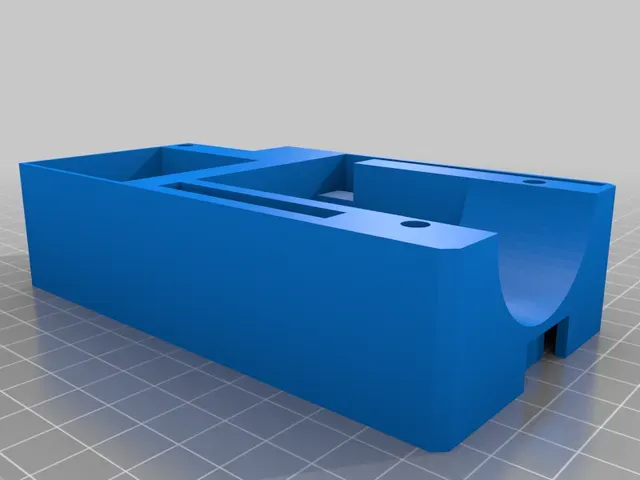

The bottom or base layer should be printed at least 35% fill

The GT2 gear parts, Pan wheel, Camera plate, Tilt motor mount, and Tilt arm cover should all be printed at 100% fill together with any very small parts and the Control plate.

The tilt arm I print at 60% fill

All other parts are at your discretion I typically use 25% fill

Keep it slow when printing the GT2 gear to ensure a clean tooth profile typically half the speed you use for the other parts.

Common sense should prevails when it comes to which way up you print the parts. Generally the way that requires least supports! The camera Plate should be printed on its end as supplied here in order to give the best print quality. You do not have to add supports for any of the screw holes.

Most of the parts use supports somewhere.

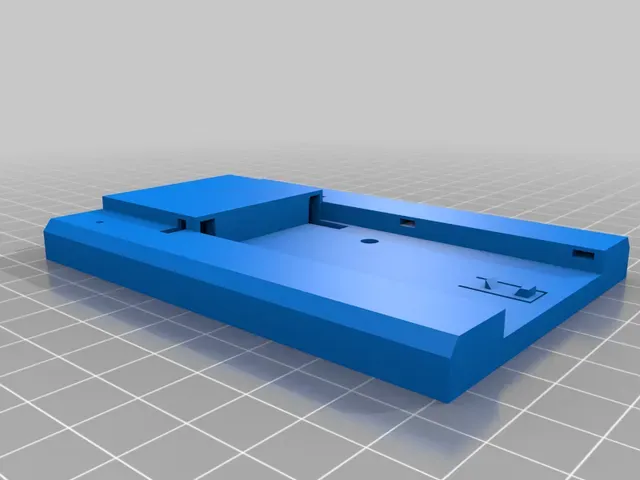

The Control panel has been updated to accept the small OLED display used to monitor the current battery state and display the devices PTZ status.

Bill of Materials

I have provided the Kits in order to make this build as accessible as possible. To this end I strongly suggest you go with one of the kits. They are good value for money and will allow you to complete the build with confidence in less than a day. (3D printing time not included)

Electronics:

- Digital Bird Pan Tilt Board with ESP32 and two TMS2208 v3 Drivers - Shutter cable with 2.5mm Socket - Board mounted joystick - Power Cable with Digital Bird NP Battery Terminals - Two button Mount/Dismount switch harness - Nema17 Stepper cables - OLED Display 0.49 Inch 128x32 res Nuts Bolts & Fixings

- 5/8 -3/8th Camera screw adapter - 4x 10mm long M4 round head bolts - 4x 10mm long M4 Cap head bolts - 3x 75mm long M5 Cap head bolts - 2x 45mm long M4 Round head caps - 7x small screws M1.7 6-11mm long - 1x M5 low profile bolt 50mm long - 1x M5 low profile bolt 10mm long - 1x M5 cap head bolt thread removed (for pan shaft) - 3x M4 Grub screws 20mm long - 1x M4 Grub screw 12mm long - 1x M5 Brass insert Drive components

- Gt2 Drive pulley 20T 6mm belt - 200mm closed loop GT2 6mm wide belt - Flanged shaft coupler for 8mm shaft (Adapted for project) - 1x 6811 2RS bearing 55x72x9mm - 1x TH MR136 32.8 x 41.8 x 6 (45°x45°) Bearing - 1x 10x4x4 bearing1 - 1x 16x5x5mm SS Bearing Sundries

- 2x 8x3mm circular Neodymium Magnets Motors:

The tilt motor does all the hard work on this system and requires a 50:1 geared tilt motor. which has been tested up to 3KG of camera over the full 180deg of tilt motion. Do ensure you buy one with a 'precision' gearbox however since low backlash is a priority.

- Nema17 40mm 5mm shaft 4 wire (Pan) - Nema17 40mmm with precision 50:1 gearbox 8mm shaft. SKU: 17HS15-1684S-HG50 (Tilt) I purchased mine here: https://www.omc-stepperonline.com/precision-planetary-gearbox/nema-17-stepper-motor-l39mm-gear-raio-501-high-precision-planetary-gearbox-17hs15-1684s-hg50.html Camera support

A camera swiss plate with a turn knob length of at least 12mm is required to clear the top of the new arm. This one will work as will many others . https://www.amazon.co.uk/gp/product/B07Z42X82F/ref=ppx_yo_dt_b_asin_image_o00_s00?ie=UTF8&psc=1
