VESA adapter plate for quick release monitor stand

Adapter to mount regular VESA 100mm screen to a quick release stand.

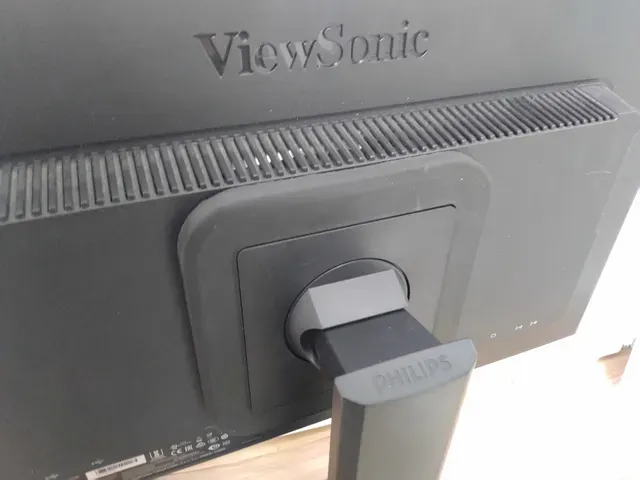

Philips 240B9 monitor came with some weird proprietary mounting system that does not support standard VESA mounting. Since I'm already using third party 2 monitor stand I decided to make an adapter, so stock one can be used elsewhere.

- Total size: 170x170x14 mm - Layer height: 0.2mm - Infill: Gyroid 20% - 6 perimeters and 6 layers top and bottom - I've also added 100% infill blocks around the latches - You would also need 4 M4 16mm screws to mount it to your monitor, since the base is pretty thick at 6 mms.

A bit messed up while modeling, so mount on the last photo was “fixed” with soldering iron. New .stl here won't have that problem.
