Anycubic Kobra Max /Plus and Vyper Filament Sensor Support / Guide / Mount MKII

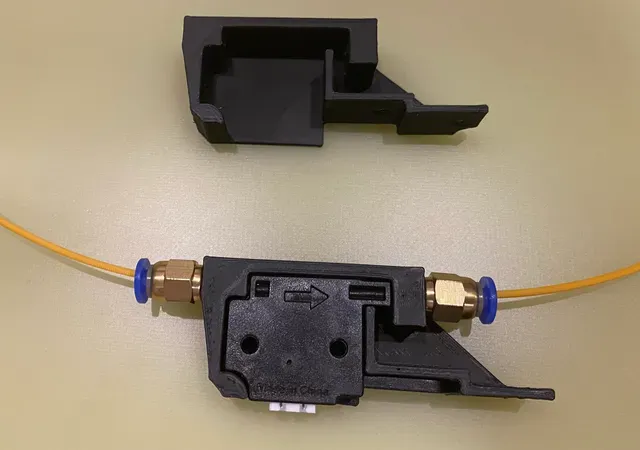

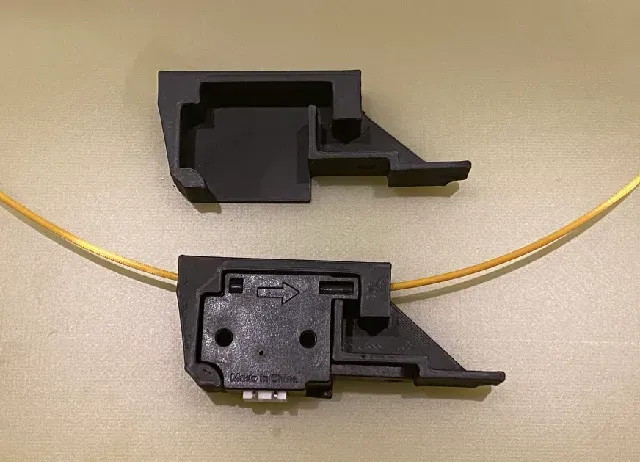

New updated Model for the Filament Sensor guide / support of the Anycubig Kobra Max and Vyper. The Sensor fits into the guide without any gaps, it can be used with and without PTFE-Couplers.

Please be aware, that your printer needs to be dialed in for dimensions.

Make sure, your infill is set, so there is enough material around the holes, were the PTFE-Couplers are screwed in.

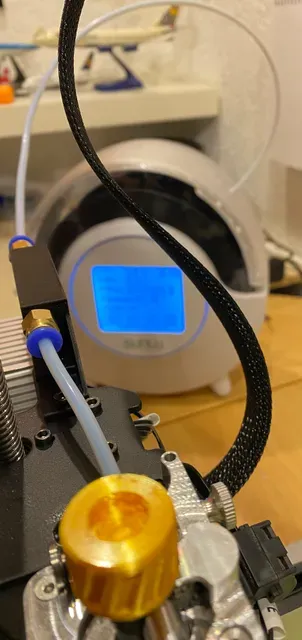

For installation, make sure screw in the PTFE-Couplers, the left one siding the Spool can be kept on. The right one needs to be taken off before assembly to the printer. You should screw it in before mounting, to have a thread inside. After mounting, you can screw the Coupler back in and connect it to the PTFE-Tube that is connected to the Extruder.

Please be aware that some M6 Couplers may have a very small inner diameter and are not suited for use with this Filament Sensor mount, as there might be a step that will cause the Infill to get caught on it. I added a Chamfer to some of the PTFE Couplers to make this work.
