AO-10x Bracket for pablogil's Full Graphic LCD Case

This bracket will allow you to mount the Full Graphic LCD case to your Mendelmax / Ao-10x style Upper Gantry frame (Should work with a TAZ too for that matter) I've included two mounting styles, one will require support to print. There is also a connection cover backplate, though that particular piece as designed will be a pain to print. It's there if you want to attempt it anyways.

Print instructions

Category: 3D Printer Parts Summary

This bracket will allow you to mount the Full Graphic LCD case to your Mendelmax / Ao-10x style Upper Gantry frame (Should work with a TAZ too for that matter) I've included two mounting styles, one will require support to print. There is also a connection cover backplate, though that particular piece as designed will be a pain to print. It's there if you want to attempt it anyways.

Instructions

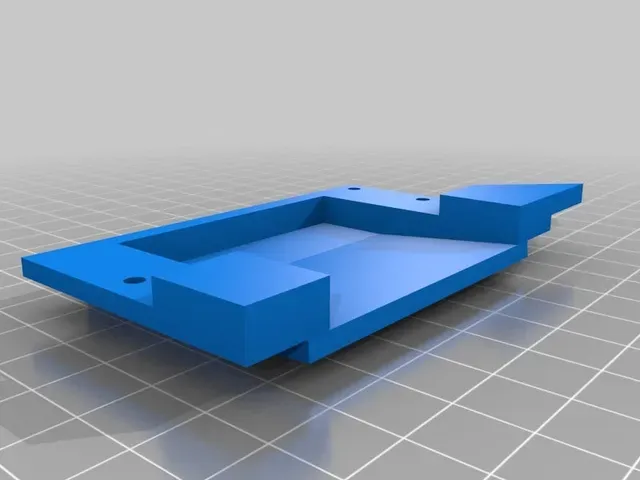

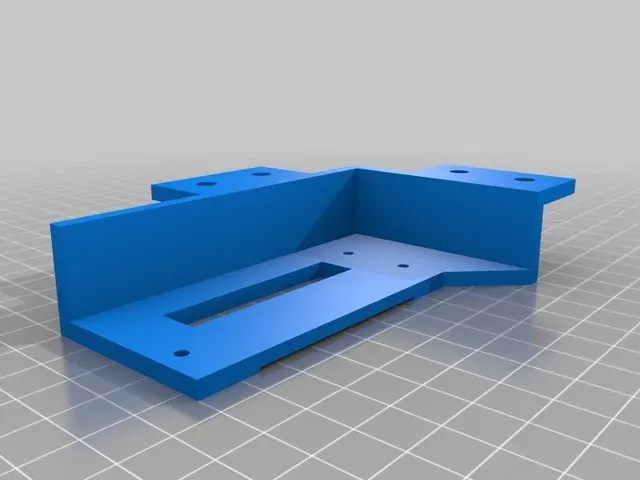

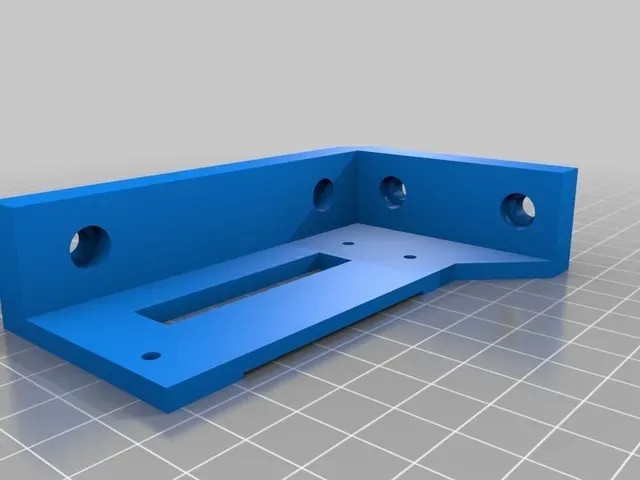

The tabless version should print fine without support. uses M5 mounting screws. The tabbed version will require support, The backplate mounts with M3 screws and sandwiches the mount and the LCD case itself. It will rewquire massive amounts of support to print, but most of the support marks will be hidden internally, so I think it still serves its decorative purpose adequatly. I plan on making an additional cable routing piece once I figure out how everything needs to route once I have this printed and on the machine.
