JKTech Enclosure Electronics V2 - 2023 Update

Hey!

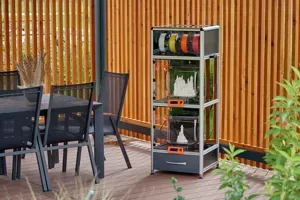

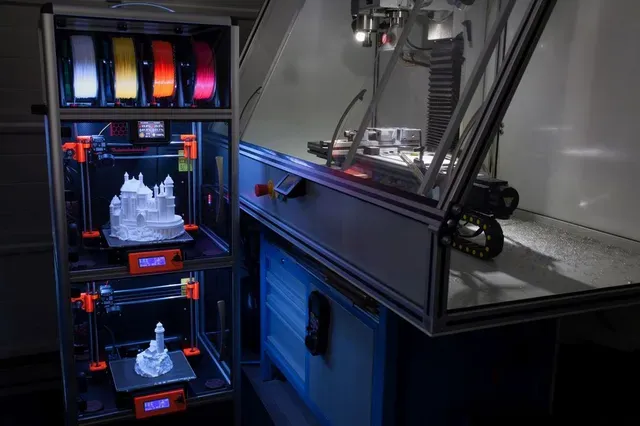

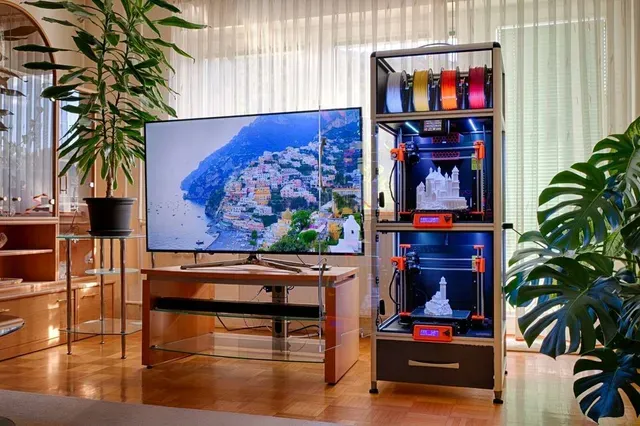

This JKTech 3D Printer Enclosure Controller V2 is part of JKTech Smart Enclosure 2023 project:

---- Link coming soon ----

This is controller for ANY 3D Printer Enclosure that will control your PWM FAN (for HEPA+Carbon Filter) and monitor its RPM. Device also measures Temperature and Humidity of 2 different compartments and displays it in °C or °F. It will also control Digital RGB lighting system with different static and dynamic presets.

Device features:

- PWM FAN Control (Power + RPM) with ability to power off FAN completely (MosFET)

- Digital RGB LED Control (3 and 4 Wire Digital LED strips supported. Like WS2812B etc.)

- 2x Temperature+Humidity monitoring for two different compartments (Printer, Filament or Room)

- Fire Detection algorithms

- Dynamic RGB LED illumination options

- Door sensing function (full white light when door is open for easy operation of 3D printer)

- Very high precision FAN RPM reading

- Brightness of Display and LED strips is now selectable.

- °C and °F options

You can purchase Electronics V2 here: https://www.jktech.si/en/store/3D-Printer-Enclosure-ELECTRONICS-V2-DIY-Enclosure-files-plans-p142928919

FOR ADVANCED USERS:

This hadrware version is FINAL now and it's has a ton of new features and also upcoming upgrades:

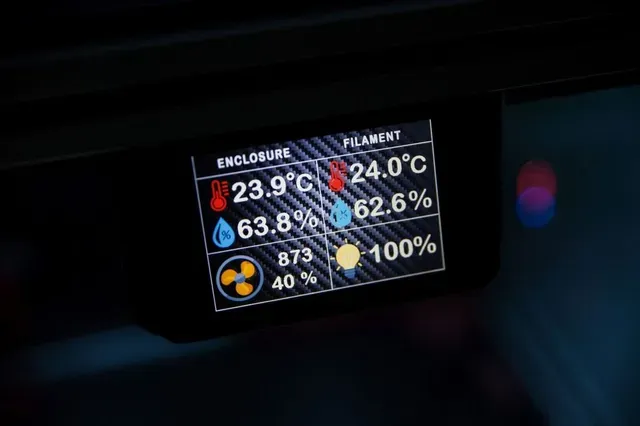

- Crystal clear TOUCH 3.5” HMI 480x320 display with it’s own GPU and great refresh rate!

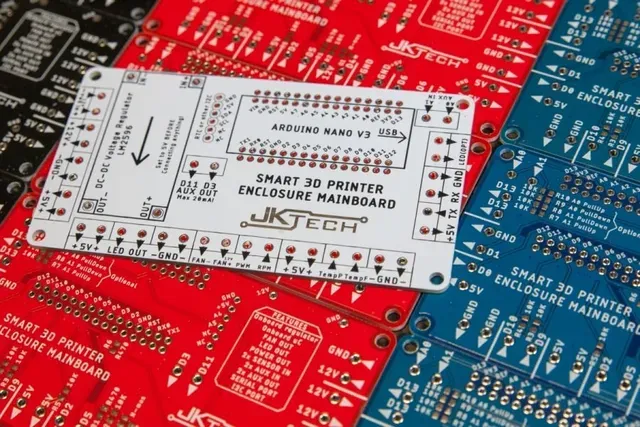

- Professional MAINBOARD PCB with DC-DC Regulator and screw terminals, so you can hook everything up without soldering!

- Arduino Code - well commented and editable for your personal customization.

- 3-wire AND 4-wire addressable RGB LEDs are supported! Virtually any addressable LED strip will run!

- New Illumination modes! Currently there are a lot of RGB color modes for enclosure.

- New FAN controller with FAN icon actually rotating on display!

- Multiple temperature sensors supported!

- Easy user definable variables to make custom device setting to your needs (Arduino code)

- AUX Power OUT (5V,12V) (for relay, raspberry etc.)

- AUX signal Ouputs / Inputs for additional custom sensors and stuff.

- I2C port for additional sensors etc.

- EEPROM function to save all the your selections in memory during power-down.

- Everything is nicely hidden inside electronics enclosure and super clean!

You will receive:

- Fully presoldered mainboard for Electronics V2

- Onboard DC-DC regulator preset to correct voltage

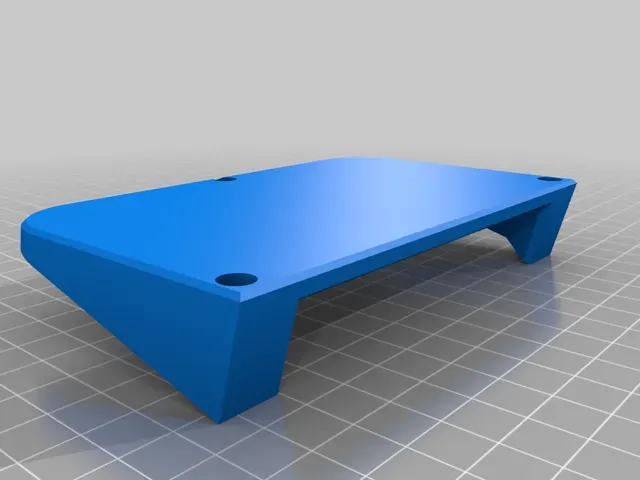

- All Electronics V2 files inc. Manual, Instructions, Bill of Material with links, Software, Arduno Code, photos, 3D model of enclosure in editable STEP and STL formats.

- Files delivered to your e-mail.

- Mainboard shipped with Priority+Tracked post or even Express DHL shipping.

For more information about getting "Mainboard" shipped over or other questions, please contact me over e-mail: sales @ jktech.si

Thanks everybody for supporting my projects!
