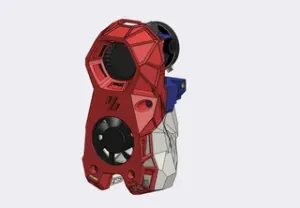

Voron StealthBurner + Orbiter v2.0

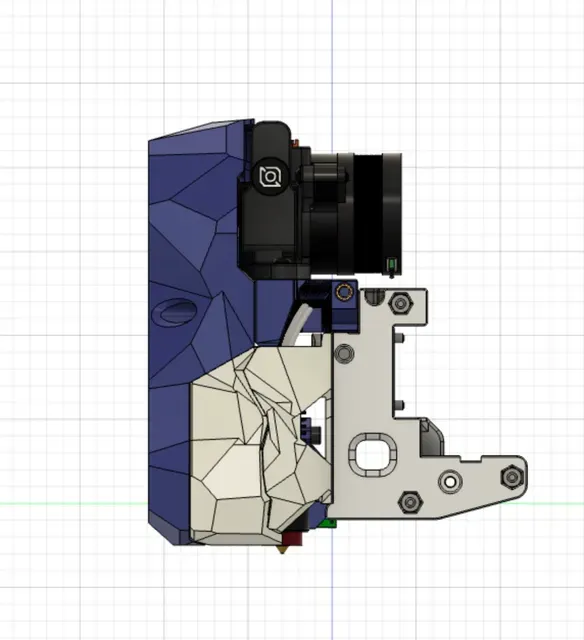

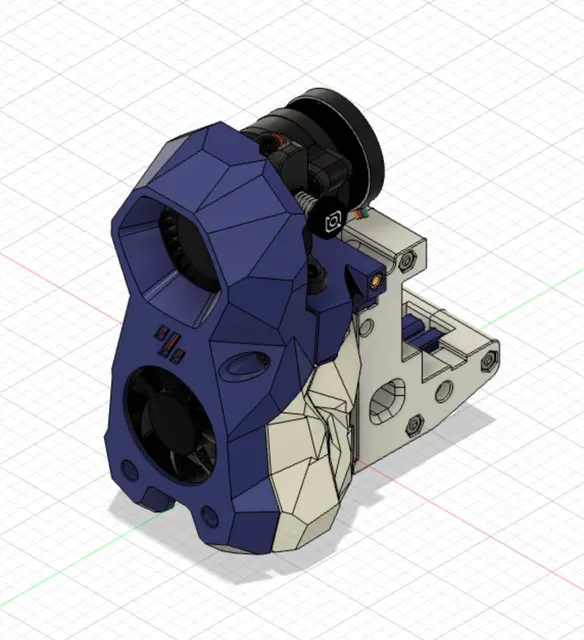

This mod comprises 2 parts, the Orbiter v2.0 Mount and a slightly revised StealthBurner Front Body.

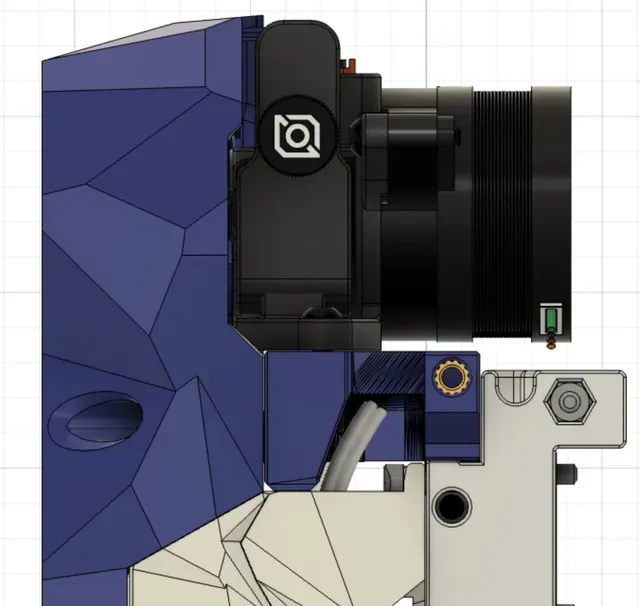

The front body has some clearance cutouts for the Orbiter filament tension lever and some extra cable management sections for the fans and LED wiring.

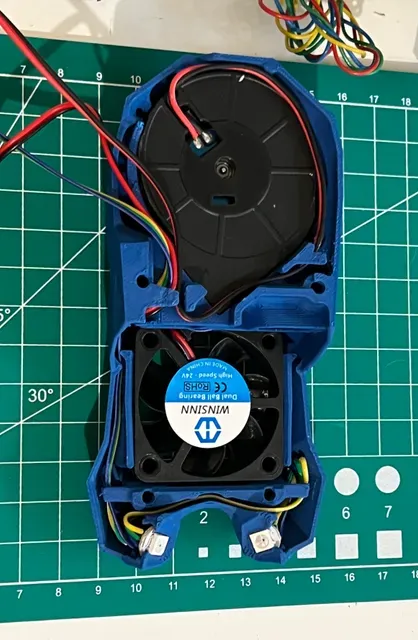

I used a Winsinn Blower Fan and after removing the sticker from the back, it fit perfectly with 0.1mm spare.

This mount is designed to use M3 Heat-Insert nuts, just like the rest of the StealthBurner design (except where noted in the Voron instructions).

This mod is compatible with all other standard Voron StealthBurner parts, except the cable chain system. It's mainly intended for use with CanBus - here is my CanBus mount for the EBB36 :

https://www.printables.com/model/316984-ebb36-mount-with-cable-strain-relief-for-the-orbit

I recommend printing these in ABS+ or ASA along with the rest of the Voron parts.

Voron StealthBurner Mount for Mega Zero V1 and Ender 3 is now available

CAD file has been included.

My Printer in action with this mod:
