Minimalistic Ender Bed Handle (snap-on - no new leveling)

Update from 2021-05-29

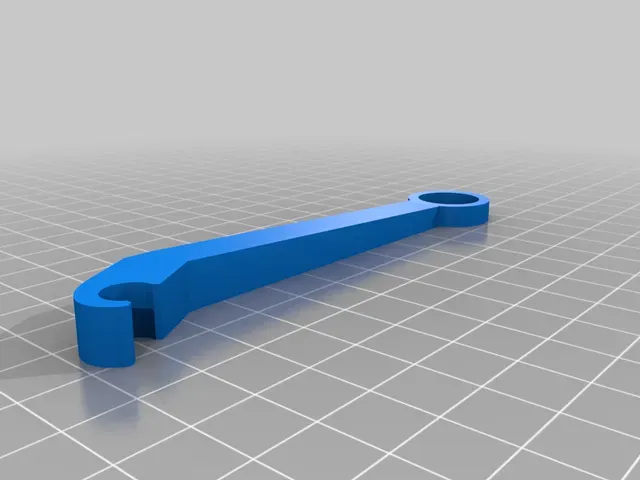

For easier printing the orientation of the 8.45mm version is now "ready to print".

To cover previous requests and prevent confusion I uploaded all STL files with new names. They are now named after the dimensions: heigth x length

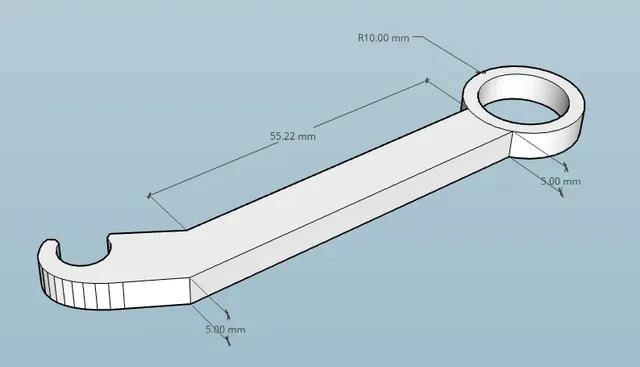

In addition there is now a picture for reference what these measurements mean. It shows the original handle (8.45x55.2mm). Every other version is some kind of remix made from this one. So the provided source file just contains the original.

Update from 2021-05-21

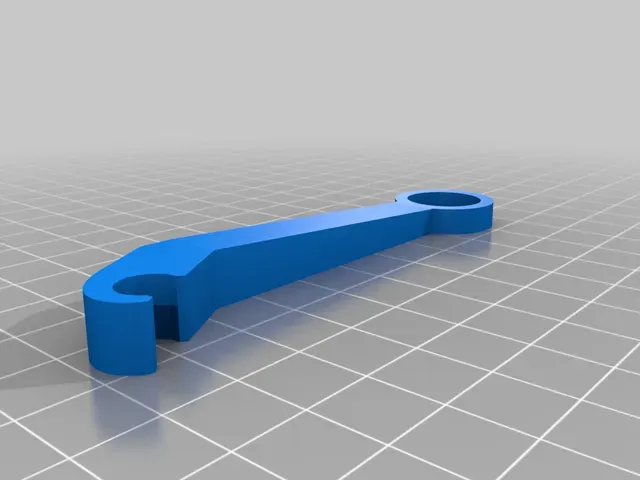

There is now a slimmer version available addressing the concerns that the V-Slot wheel might be affected by some "brake effekt". The height of th orignal clamp is 8.45mm and the slim version offers just 5mm height.

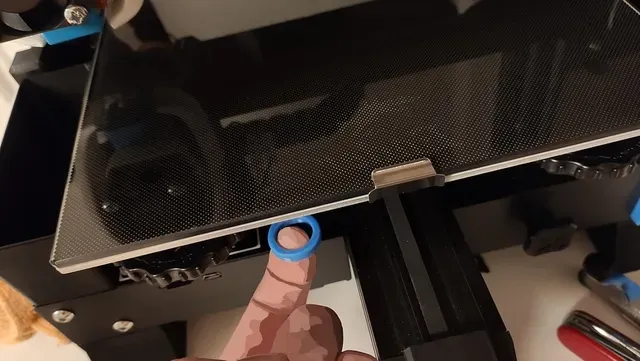

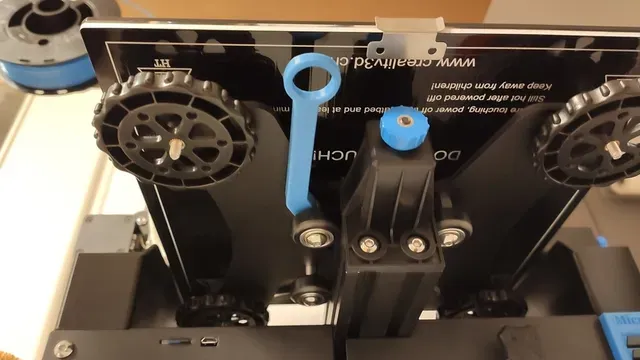

This is a pretty simple handle for the print bed of an Ender3v2 which will fit previous versions as well I assume. My design comes up with a "snap-on solution" that gets mounted on the left front wheel of the Y-axis carrier. It will need some force since it sits really tight on the shaft.

The base idea contains the aspects of

- easy to print

- installation without tools and within seconds

- decent

- no restrictions to bed movement or attached stuff (cameras, lights, etc.)

- just something to grab on for push / pull movement while the bed is hotter as 60°C

- maybe a bit pivotable

So, what's the story behind this?

From my current point of view (or needs) most handles available here

- get attached to bed leveling screws

- require disassemble and / or new leveling of the bed

- are bulky or big

- take a lot of room or filament

- are sometimes difficult to print

- have other restrictions

This thing was made to work and not to look nice.

As usual the SketchUp file is included so you can modify it for your own needs. Longer shaft, smoother edges, different grip design, whatever... just go for it :)

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

No

Supports: No

Resolution:

0.16

Infill: 25%

Filament: 3DJake ecoPLA Sky Blue

Category: 3D Printer Accessories
