V-Slot Mounting Base - Modular Mounting System / GoPro

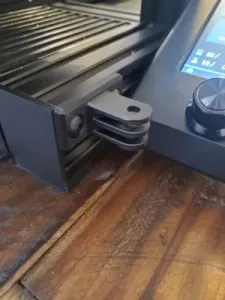

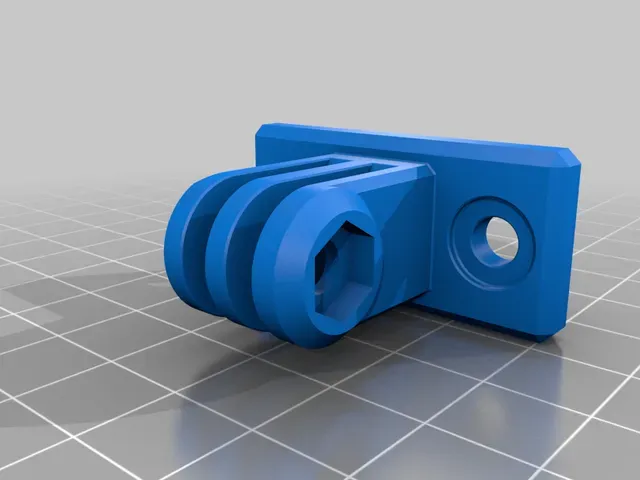

This is a mounting base for connecting the modular mounting system arms to a v-slot rail (2020, 2040, 4040, etc.). I created it because the existing mounts had the pivot point too close to the base which caused interference with the knobs and did not allow for full range of motion.

You'll need (2) M5 x 8mm bolts and t-nuts.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

Doesn't Matter

Supports:

Doesn't Matter

Resolution:

0.2mm

Infill:

20%

Notes:

Use at least 3 or more perimeter walls to increase the strength .

Tree supports help the print to come out super clean.

Print with the base down and arms pointing up (see image).
