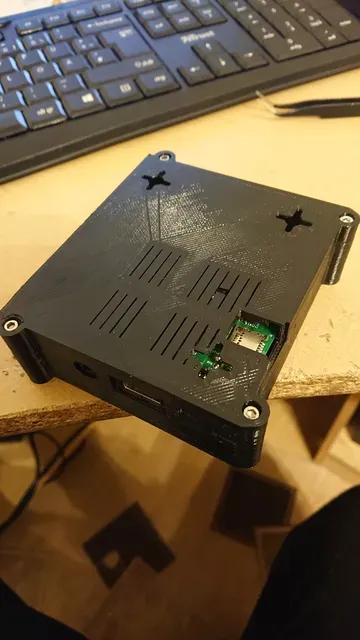

Raspberrymatic CCU3 Case Upgrade RPI-RF-MOD

I have remixed this case https://www.thingiverse.com/thing:3013954 because the holes are to big (light comes out overall), no option to putt ist together with screws, no wallmount option and not accessible al ports with bigger cables

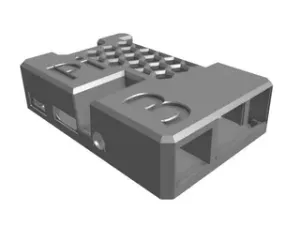

The case is for a Raspberrypi 3

All ports are open and accessible

You need 2 x M2.5x5 Screws for the Pi and 1 x M3x6 for the Homematic module an 4x M3x16 for the case

suggestions? let me know

add a version with more and bigger ventilation slots

Do you like what I created? Then I would be happy about a donation

https://www.paypal.me/raabi1991/

Print Settings

Printer:

Tronxy X5SA Pro

Rafts: No

Supports:

No

Resolution: 0,2

Infill:

40

Category: Electronics
