Milwaukee M12 tool holders for Wall Control Pegboard

A simple pegboard storage for Milwaukee M12 power tools, adapted to work with the DDD Wall Control pegboard system . I took the tool holder created by Yangorang, and remixed it to work with that universal pegboard system.

Parts

To put it up on the pegboard, you will need to print the following pieces from the DDD system (I included the files here for convenience)

- 1 of 2x0 Flat Left sidepiece - 1 of 2x0 Flat Right sidepiece - 4 of 4x10x8mm Pin - 1 of the tool holders My print was no supports, 20% infill, but 3 perimeters for extra strength.

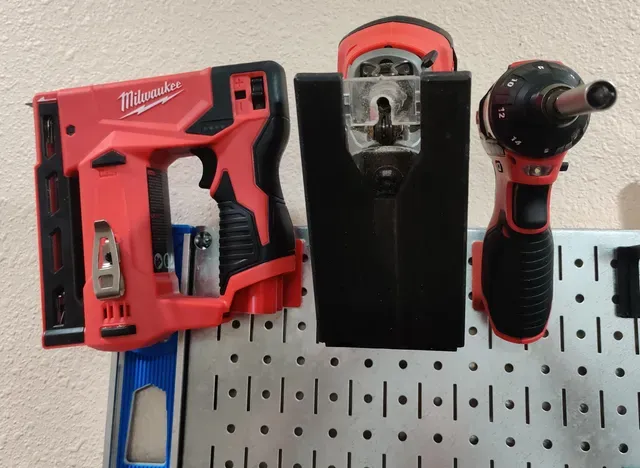

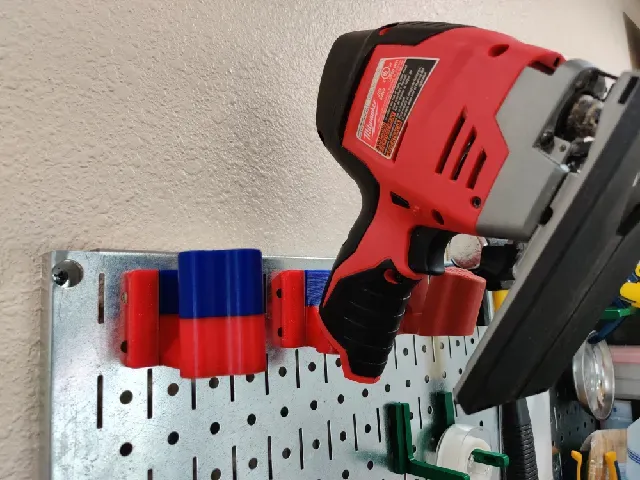

The tool holders come in 3 flavors, which you can see in the pictures:

- straight - holds tool up right, parallel to the wall - straight_extended - same, but slightly farther from the wall for thicker tools - angled - holds the tool perpendicular to the wall, saving some space Instructions

Insert the pins into the slots of the side pieces, then insert the side pieces with the pins into the tool holder. You will likely need a mallet/hammer to tap them in fully as they are a tight/strong fit. Make sure the orientation of the hooks is correct for the holder to face up! For more on how to use those pieces, you can see the wonderful DDD Printable Wall Control System .

I will be adding a pull request for these pieces to their github repository, which is the primary place you should use for getting the files for the system as it is updated often
