Secure Apple AirTag holder for your bike

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC
Можно печатать и изменять для себя с указанием автора; продавать модель и отпечатки нельзя.
Форматы
3MFSTL
  • 87 Лайки
  • 207 Загрузки
  • 1 Напечатали
  • 2 Комментарии
  • 4 024 Просмотры

Автор:manmac

Опубликована

Описание

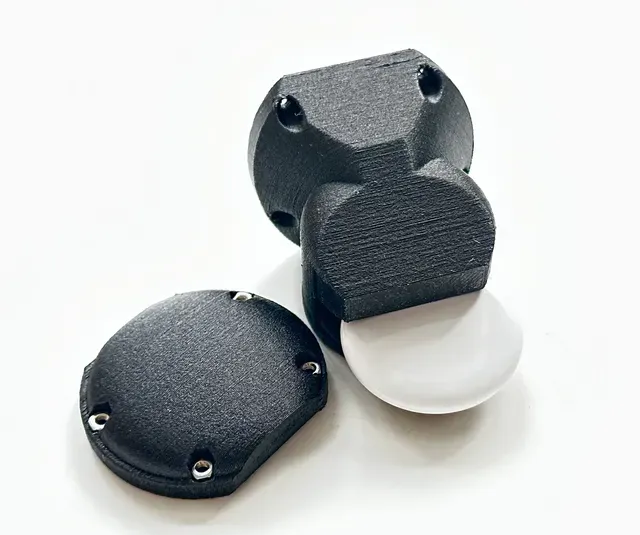

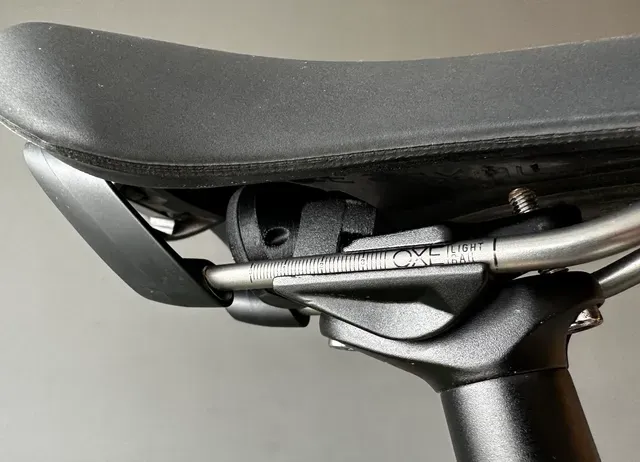

This AirTag mount was designed with security in mind to withstand attempts of removal. Combined with screw locks you will have a ridgid, light and secure tracking solution for your beloved bike.

UPDATE:

- added cover designed for ruthex m2 threaded inserts You will need

- 4x M2 bolts (or ruthex m2 threaded insert) - 4x M2 screws (> 8mm long) - 1x AirTag Print settings:

- works fine with a standard 0.4 noozle and 0.2mm layer hight - up to 100% infill to increase strength - can be printed without supports (upright position) - use at least PETG for long lasting outdoor use How to achieve high rigidity:

- use more strength filaments like the polyamide with carbon fibre - or check out the strength test from Stefan from CNC Kitchen (starting at 11:41) Options:

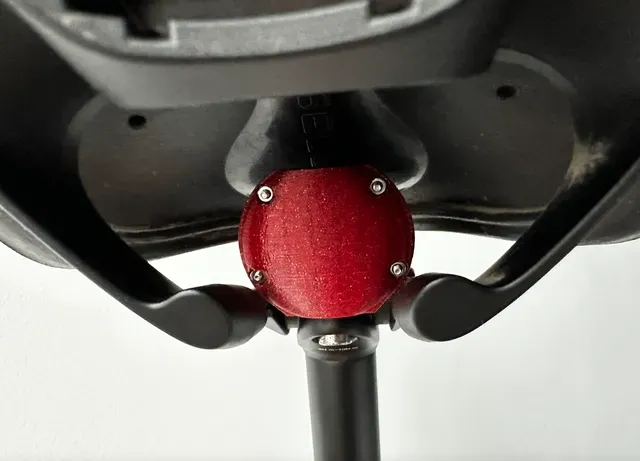

- print in black so the holder is not easy to detect - print the cover in red if you want to mimic a backlight In case you want to disable the AirTag speaker check out the following videos or just search on YouTube. Please have in mind that following any of these descriptions will break the warranty and is on you own risk.
