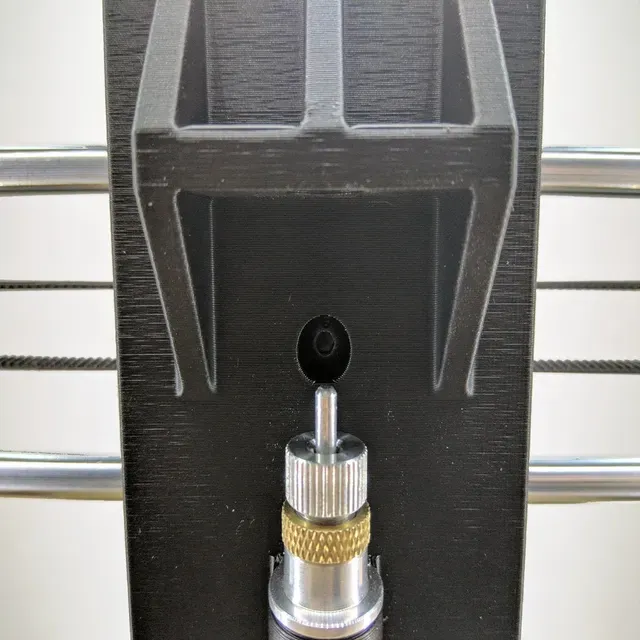

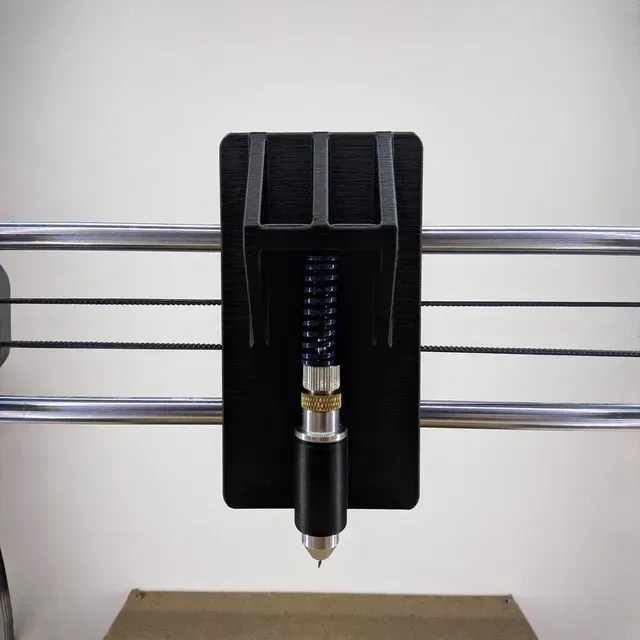

Anycubic i3 Mega Drag Knife Mount

If you want to turn your Anycubic i3 Mega into a vinyl cutter/plotter, then you can use this mount to do so! Mounting it requires my universal mount for the Anycubic i3 Mega.

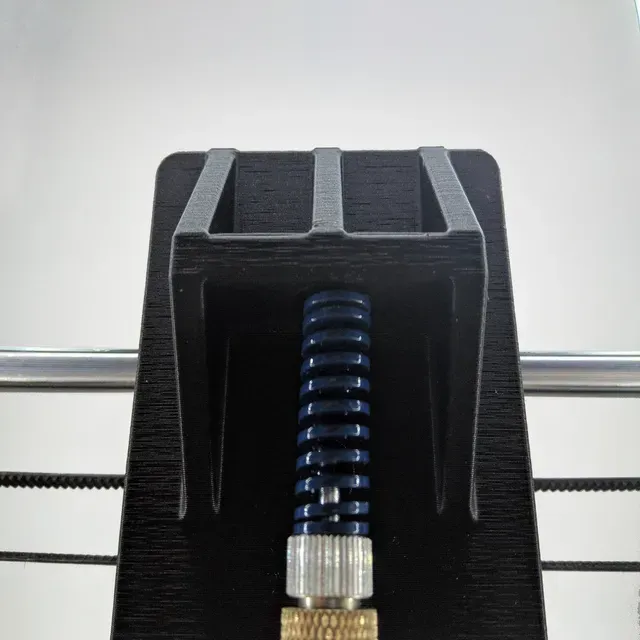

You need a spring that allows the drag knife to move up and down ever so slightly, in case the bed isn't perfectly level. For this, I used a hot bed leveling spring, which you can get from AliExpress (link below).

For the drag knife holder, I bought a set from AliExpress (link below), which includes the holder and several different knives. Depending on what type of cuts you want to make, the knife needs to have a certain angle.

Support

If you'd like to support me for the 3D models I distribute for free, you can use my AliExpress affiliate link: https://s.click.aliexpress.com/e/_oFT8Gq6

Whenever you buy something through this link, I get a small kickback without costs for you ;)

Thanks for your support!

Print Settings

Printer Brand: Prusa

Printer: I3 MK3S

Rafts: No

Supports: No

Resolution: 0.2mm

Infill: 15%

Filament: ColorFabb PLA/PHA Semi-matte Black Notes:

I printed this mount with the dovetail part at the bottom, which means that you will need some support material from the spring plate to the part where the drag knife sits (in other words, the print orientation is upside down from how you see it in the pictures).
