Orange Pi 5 case

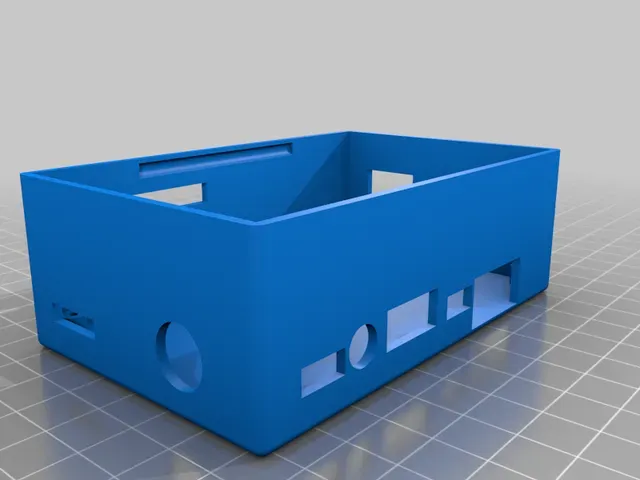

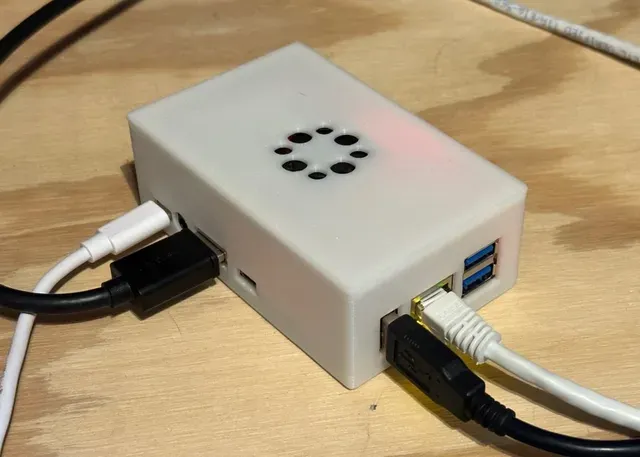

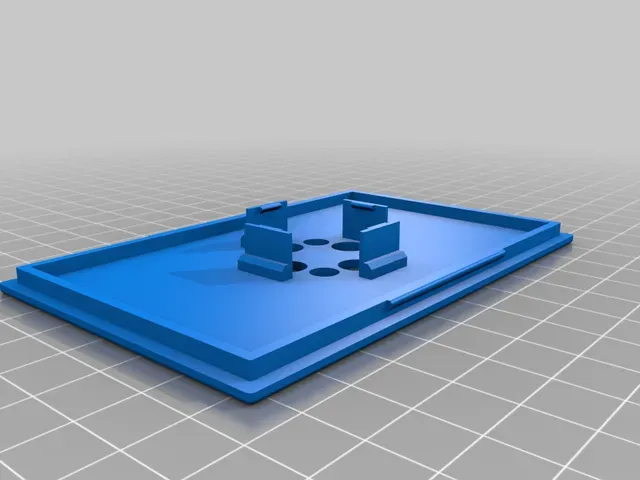

This is a case for the new Orange Pi 5. There are 2 different cases, and 2 lids to choose from. A case with the GPIO and LCD connector holes, and one without those. There is a lid with a fan holder for the CanaKit 30mmx7.5mm Fan used on Raspberry Pi(s), and a lid with holes but no fan holder so you can drill and mount any fan you like, or no fan. I used 2-56x1/4 inch flat head screws to mount the board into the case. When putting the board into the case, I found it easier to put the corner with the power button into the case first, then the board goes in without to much effort. Doing it any other way, I was worried the power button might get damaged. The case and lid are 2mm thick, so it feels like a solid case when done.

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

Doesn't Matter

Supports: Yes

Resolution:

0.2

Infill: 100%

Filament: Ender PLA White

Notes:

Actually I have a Ender 3 S1 Pro. I used Cura 5.2.1 and did print with a brim and supports. The brim is probably not needed, but the supports on the case are.
