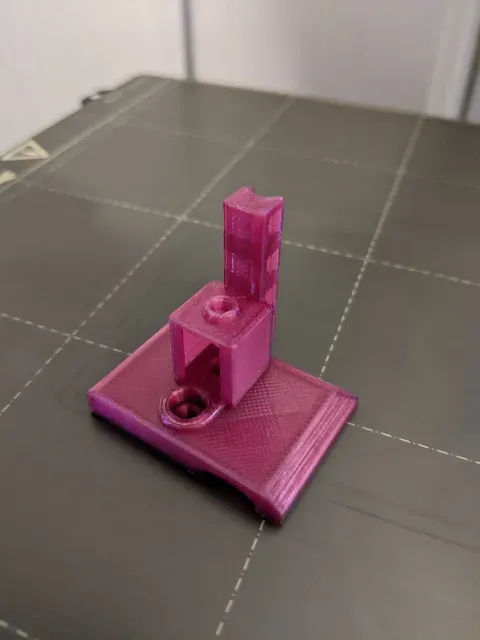

Prusa MK3S Filament Filter with Camera Cable Management

Remixed from https://www.thingiverse.com/thing:3433713

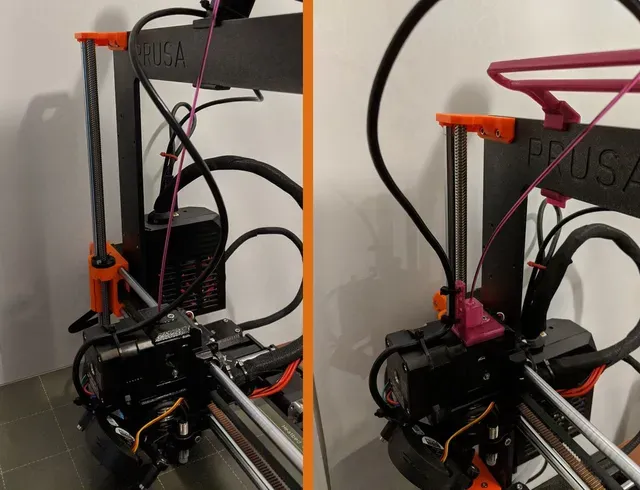

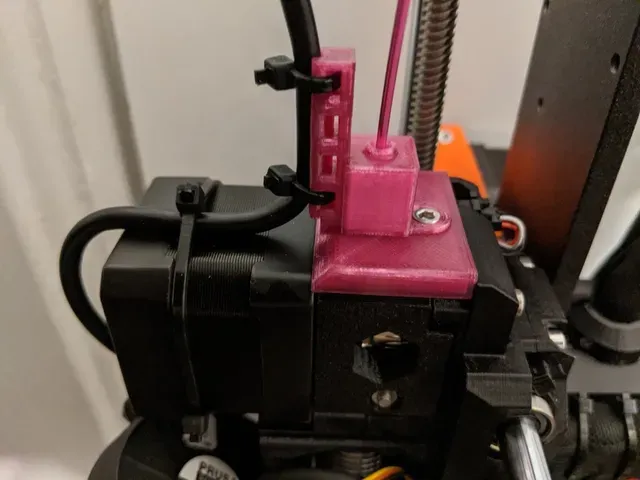

After adding an endoscope mount to the side of MK3S ( https://www.thingiverse.com/thing:3829076 ) I found I had a new challenge for cable management. I ended up using zip ties to run the cable up the back of the extruder motor Which worked pretty nicely. I then found the cable needed some rigidity and direction-handling to ensure it wouldn't bend back toward the frame after a long stretch at max range.

Changes

- Added camera cable support

- moved the filter door to the opposite side of the tower

Print instructions

Category: 3D Printer Parts Summary

After adding an endoscope mount to the side of MK3S ( https://www.thingiverse.com/thing:3829076 ) I found I had a new challenge for cable management. I ended up using zip ties to run the cable up the back of the extruder motor Which worked pretty nicely. I then found the cable needed some rigidity and direction-handling to ensure it wouldn't bend back toward the frame after a long stretch at max range.

Changes

- Added camera cable support

- moved the filter door to the opposite side of the tower Print Settings

Printer Brand: Prusa

Printer: I3 MK3S

Rafts: No

Supports: Yes

Resolution: .20

Infill: 20%

Filament: Prusament PETG Transparent Violet
