Bambu Lab P1P - "Vision" Enclosure

Buy the Full Vision kit

I've teamed up with VOXELPLA to make a kit that includes acrylic panels, printed parts, screws, and tool. The magnets and threaded inserts are pre-installed, so you won't need anything outside of the kit. Shipping is free in the USA and ships out the same day.

- VOXELPLA (United States)

Vision has a strict non-commercial license, it can only be sold with licensing through Hume Beam Engineering Solutions.

Support

All my designs and mods on Printables are free to use and remix. They have a non-commercial license. If you enjoy this or any of my other designs you can send me a small donation using the link below. Thanks :)

https://www.paypal.me/humebeamengineering

Reviews on Youtube

ModBot (skip to minute 5.00)

About

Vision is a high visibility enclosure for the Bambu Lab P1P that prints completely without supports , featuring magnetic sides (3 mm PC or Acrylic panels, optionally 4 mm with optional 4.5 or 6 mm lid) that quickly can be removed when printing PLA for example. It also allows for ease of maintenance.

The printed parts are installed with standard / full length M3 heated inserts (M3x5,7 mm), cap head hex screws and some flat head screws are required for the handles. Check out the Bill of Materials further down.

The enclosure is compatible with the original Bambu Lab X1C glass top cover, although a drawing (DXF) for cutting one in PC is available as well. If you plan on resting the AMS on top, I recommend using the X1C glass cover.

NOTE: Some people seem confused about this but the top glass rests on top of the corner pieces as well as the rear and middle support pieces and on the front P1P panel. The reason for this is to enable the use of the original X1C hardened glass cover which is normally too large/deep for the P1P and would otherwise not fit. It's not a bug, it's intentional. :)

It's also important to use flat head screws for the handles and the rear of the hinges, more on this in the guide at the bottom.

Buy the panels

If you're looking for the panels, you can buy them from NetLaser, LaserFoundry or Bluerolls (authorized resellers *). These are pre cut and fit the design perfectly:

- LaserFoundry (United States)

* A portion of each sale is donated to help development of this and my other designs.

Buy the printed parts

The printed parts are now available from MatterHackers (authorized reseller *) at a very affordable price, free US shipping included:

- MatterHackers (United States)

* A portion of each sale is donated to help development of this and my other designs

Selected Makes

Here are a few Makes posted so far. Thanks for sharing!

Make by phobus

Make by Chasers

Make by Ayntraxt

Make by joshmurrah

Make by Exciting7855

Make by GekkeGengis

Make by Chinaquads:

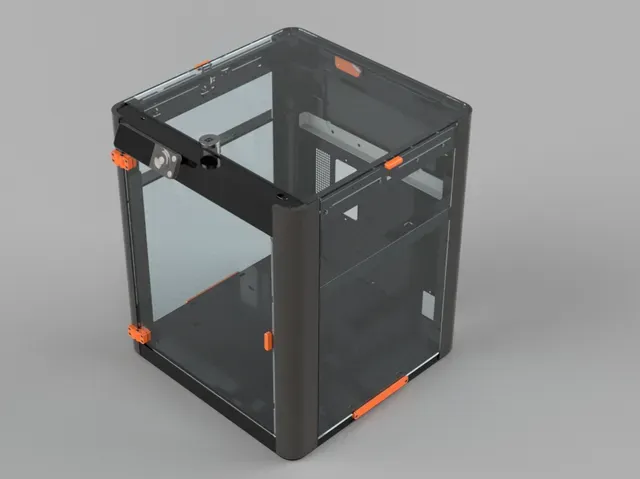

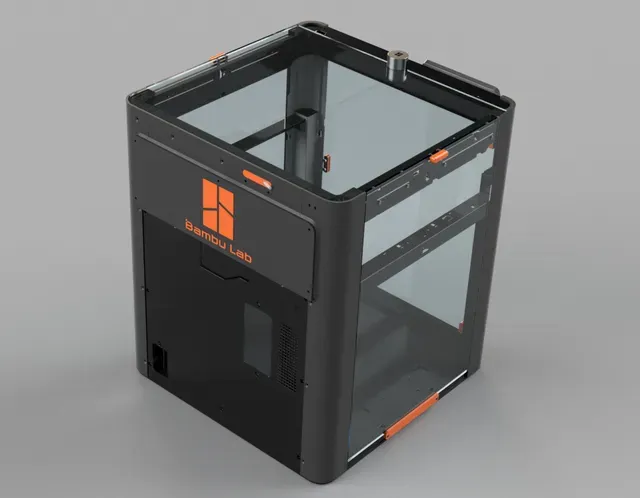

Renders

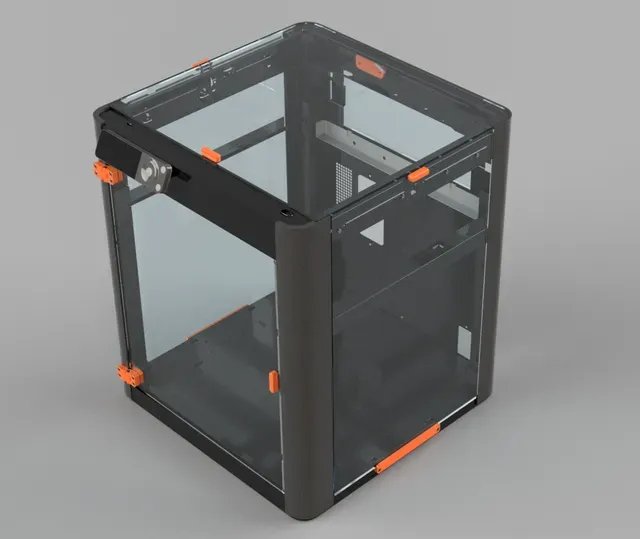

The hinges are easy to install, cap head M3 screws and heated inserts.

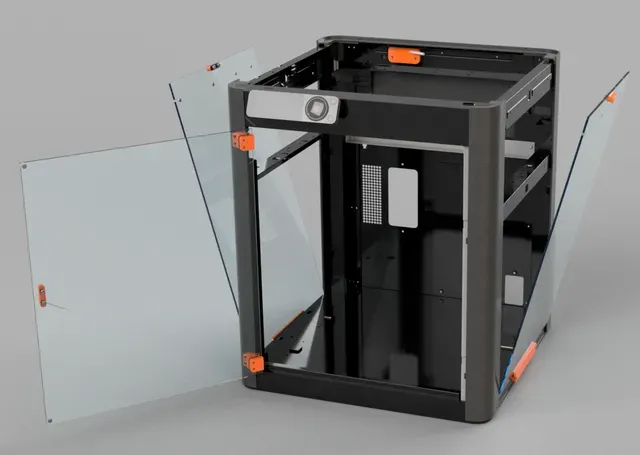

Sides are attached by magnets, easily attached and removed in seconds.

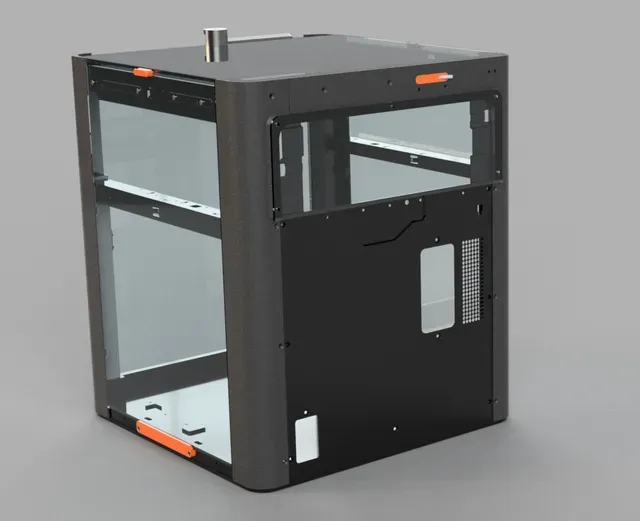

The rear cover can either be printed or a PC panel can be used (DXF drawing will be supplied)

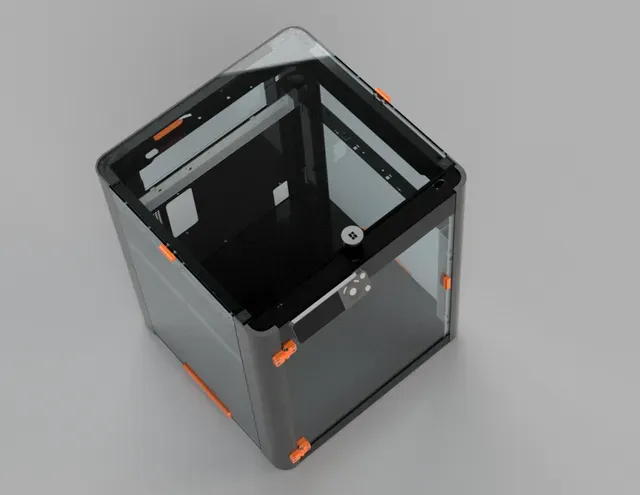

You can either use the Bambu Lab X1 glass top cover or a PC panel.

Print Settings

I recommend using a minimum of 3 walls, top and bottom and infill of 20% or higher. Also, a wide enough brim is highly recommended to ensure bed adhesion, most parts are thin and tall. The tall files are best printed one at a time. For best bed adhesion I recommend Vision Miner Nano Polymer.

Notice: If you get a warning that the 3MF files are not coming from Bambu Lab just ignore this, they were exported from my design software.
