Steel Sheet Holder for Voron 2.4 & Voron Trident & V0

Jan. 23, 2023 Update:

- Added sheet holder for Voron 0. The slots are 1.5 mm wide and 128 mm in length - Added the 350 mm size holder without logo as STP for customization. ----------------------------------------------------------------------------------------------------------------

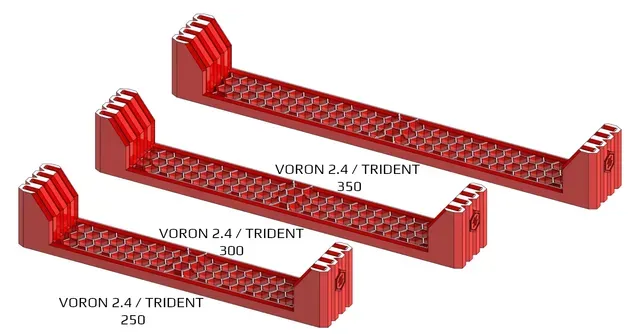

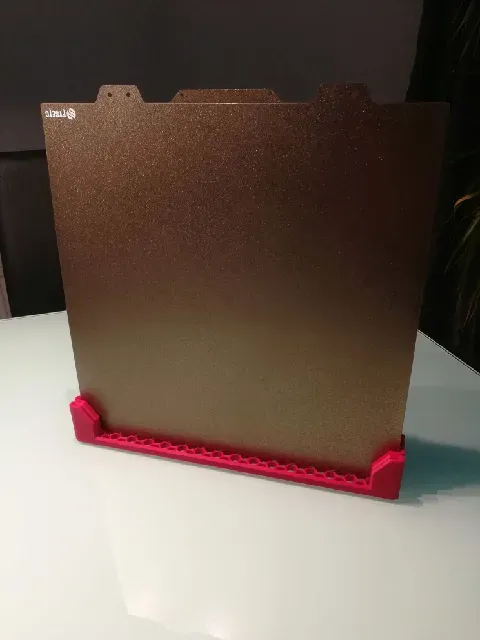

Remix of SLcompany's great design to fit the Voron 2.4 or Voron Trident steel sheets in the sizes 250 mm, 300 mm or 350 mm. The holder can store 4 steel sheets.

The respective holders are available with or without Voron logo on the front and back.

The slots of the holder are 1.5 mm wide and 358 mm, 308 mm or 258 mm in length, depending on the variant.

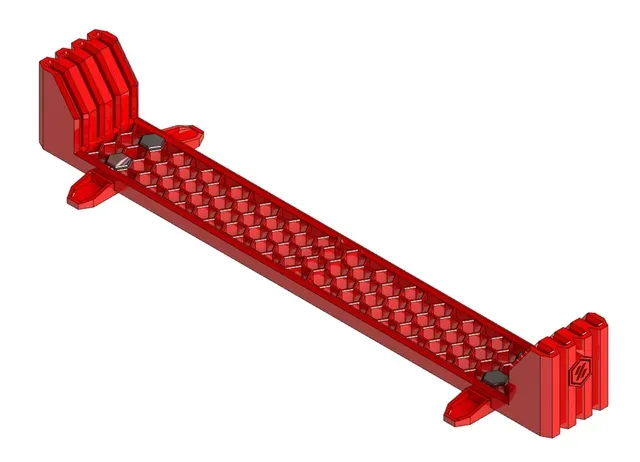

Optionally there are two variants of stands for more stability.

BOM for 2 stands of the threaded inserts variant:

4x Threaded inserts - M3 x 5 x 4 4x DIN 912/ISO 4762 - M3 x 6 2x Printed part - STAND.STL 4x Printed part - COUNTER-SUPPORT-TI.STL 4x Self-adhesive rubber pads (optional)

BOM for 2 stands of the self-tapping variant:

4x DIN 912/ISO 4762 - M3 x 6 2x Printed part - STAND.STL 4x Printed part - COUNTER-SUPPORT-ST.STL 4x Self-adhesive rubber pads (optional) Note: Use of M3 tap drill recommended.

Print Settings

Rafts: No

Supports: No

Perimeters: 3

Layer height: 0,2

Infill: 20%

Filament material: PLA / PETG / ABS / ASA

Suggestions for improvements and constructive feedback are always welcome.
