Umbilical for EBB42 with LGX on Voron stealthburner

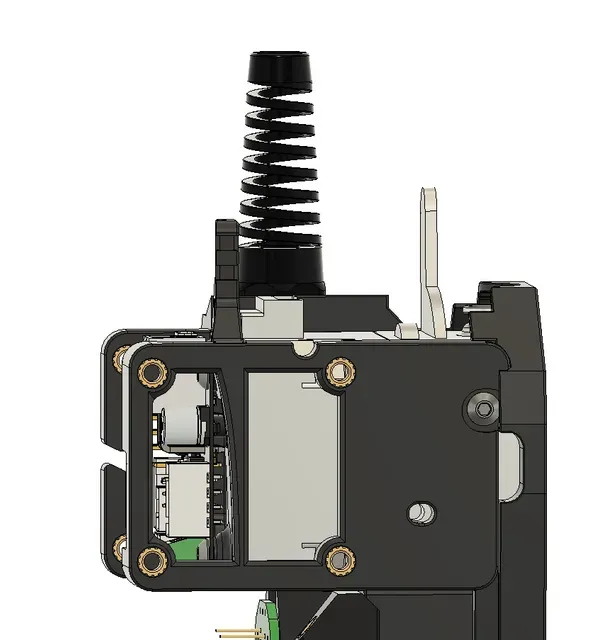

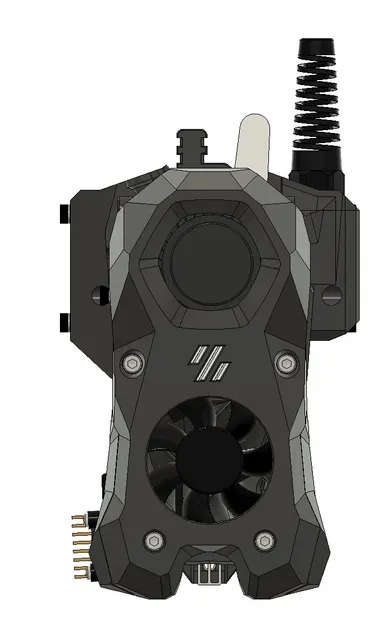

Made a mod to fit a EBB42, LGX and a cablegland for umbilical, using active cooling to keep both stepper and EBB cooled down.

Bom:

2x M3x14 SHSC

6x M3x18 SHSC

2x M3x20 SHCS

2x M3x30 SHCS

5x M3x6 BHCS

1x M3x8 BHCS

8x Heatinserts M3x5x4

1x 4010 DC FAN

First replace the screws on the back of the LGX to those with integrated nuts.

Print the following files:

LGX adapter

Left side holder

Right side holder

Ebb 42 holder

Left cover

and choose either Right side cover or Right side cover for heater cable (got more room for the cables)

Print with 4walls 5top/bottom 40% infill

The prints are oriented for 45 degree printing so turn them for your slicersettings.

*update 20230407 added a new adapter for the chaoticlabs cnc tap, its a 2 part design, download and print “LGX adapter cnc tap part 1” and "LGX adapter cnc tap part 2"

*update 20230409 added a left cover with 1mm more clearence for the fan

*update 20230418 added missing ebb42 holder
