Wall mount for garage door remote opener

Сведения о модели

Площадка
Printables
Цена
Бесплатно
Лицензия
CC-BY-NC-SA
Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы
STLGCODE
  • 55 Лайки
  • 386 Загрузки
  • 7 Напечатали
  • 16 Комментарии
  • 1 105 Просмотры

Автор:Adam

Опубликована

Описание

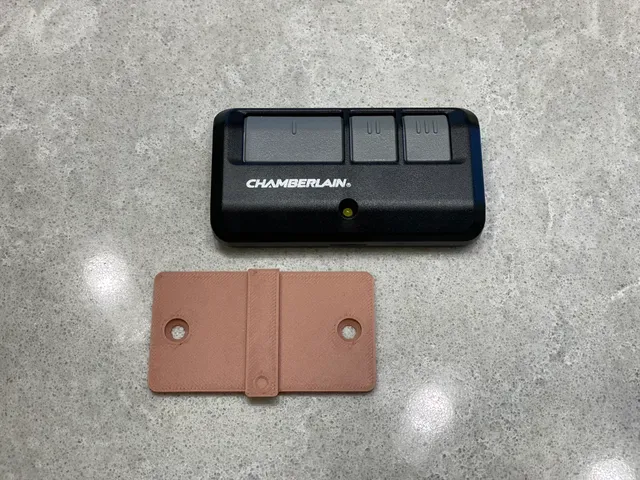

This is an easy-to-print wall mount bracket for your car visor mounted garage door remote. I've tested it with a Chamberlain 953ESTD, but the visor clip seems to be quite standard.

Design features

- The backing plate ensures that you will not scratch the wall sliding the remote in and out of the bracket, and provides a stable surface so the button presses don't cause the remote to wobble - Can be attached with adhesive, or screwed into the wall (screw spacing is 50 mm) Printing instructions

- Print as-oriented in the .stl file (rail on top) Attachment instructions

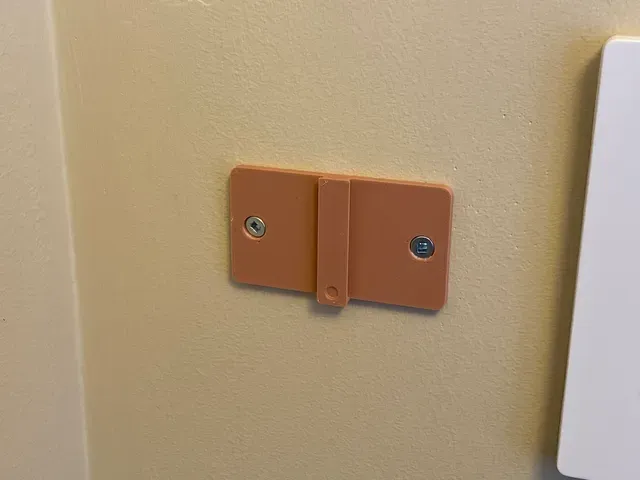

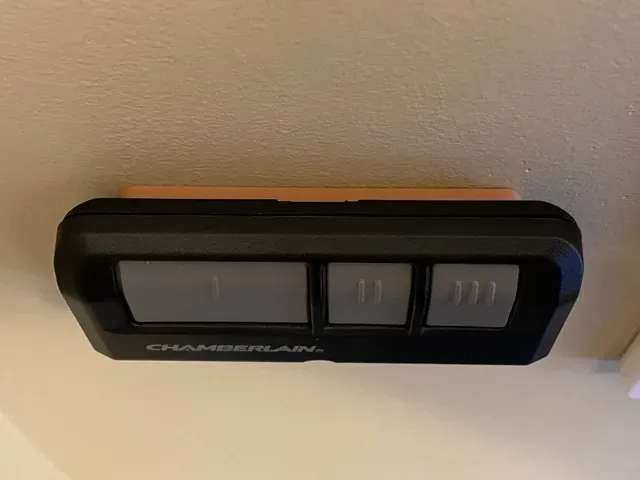

- Use your favourite adhesive, or two #6 countersunk screws to attach it to the wall - Slide the remote in (remove the existing visor clip if it's still attached)
