Open source electric longboard with 3d Printed parts

The "PEX board" is an open-source electric longboard project that everyone can build without any particular skills (except for longboard basics).

FYI, I have not designed the wheel pulley, I used this model: https://www.thingiverse.com/thing:1719940 (9mm version)

Budget for mechanical parts and electric components: $220 to $300 (USD)

Budget for a longboard with adapted wheels, trucks and deck: $80 (USD)

Overall budget: $300 to $380 (USD)

Build time: 4 hours to one weekend

Theoric speed of my current setup: 35km/h - Effective speed with my settings: 25km/h

Theoric range of my current setup: 25km / Effective range: I need to compile some data before to have a number.

Part list:

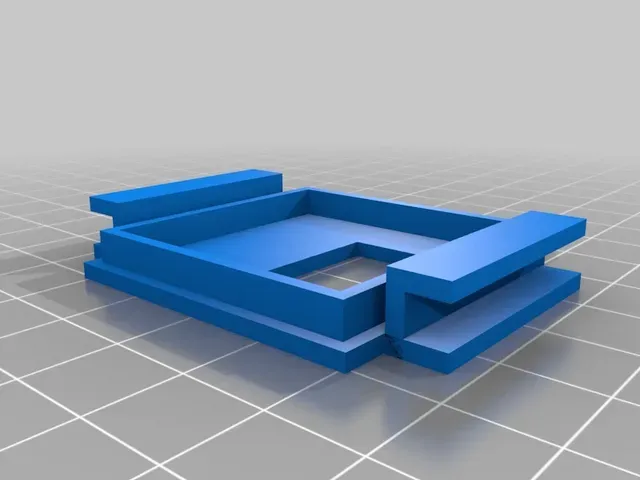

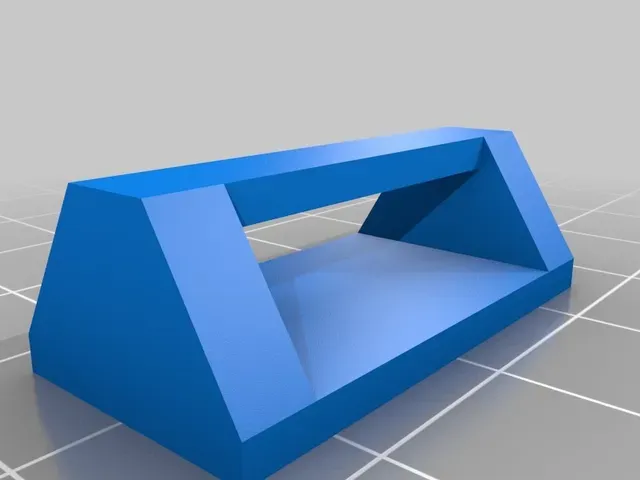

ESC Motor Connectors Box Motor Mount Remote

It takes me a lot of time and a lot of beer to design these parts from scratch. If you can't buy me some time you can at least help with the beers on http://paypal.me/supportp3x .

Print Settings

Printer Brand:

Wanhao

Printer: Wanhao Duplicator i3 V2

Rafts:

Doesn't Matter

Supports: Yes

Resolution:

100

Infill: 100%

Notes:

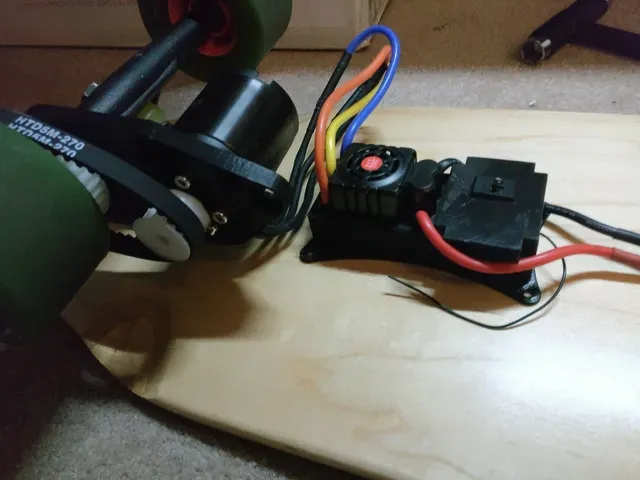

You can use PLA for all main parts but I recommend Alloy Nylon for the Wheel pulley and the motor pulley.rnrnAll the assembly details and the required parts are described here: http://eboardmaker.com/build-electric-longboard-tutorial/

How I Designed This

Versionning

- Version0.1: Release of a better ESC enclosure with cable protection and handler, added a new cable enclosure for the Y series cable for the batteries, in order to have a clean setup and protect the cables.rnrn- First release

Category: DIY
