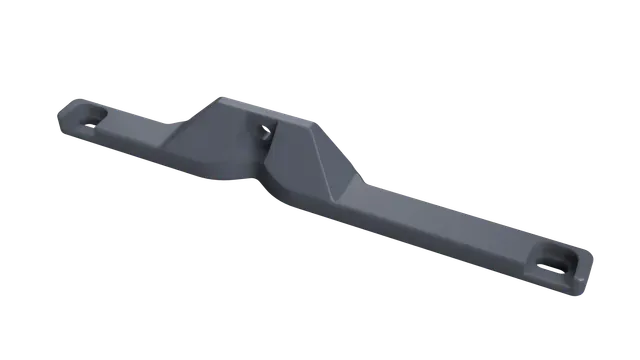

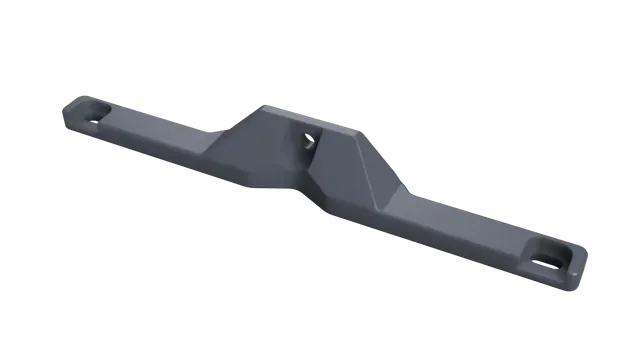

Ender3 Switchwire style psu mount

I wanted to rearrange the electronics of my Ender3. I found the Voron Switchwire design very interesting so i chose that.

Since I only found designs for the Ender3 Pro and Ender3 V2 I had to create a custom part for the psu mount. The E3 Pro and V2 have a 4040 extrusion while the stock E3 has a 2040 extrusion.

Here is a link to the original design: Ender_3Pro_Switchwire

My part is heavily based onto the ones in the Original.

After printing I noticed that there was little space for wiring left. So I decided to move the mounting hole 15mm to the left which makes it a lot more comfortable to attach the wires.

I have included both designs in this post.
