Sovol SV06 60x60x15 Fan Mainboard Cover

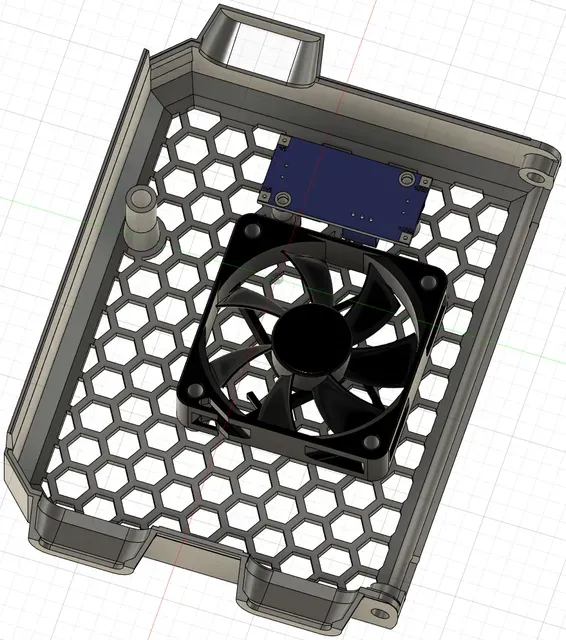

This is a mainboard cover for the Sovol SV06 with an 60x60x15 fan and built-in DC-DC converter mount in mind. The screw to adjust the voltage is exposed so you can adjust the voltage later on to reduce the fan speed. The honeycomb structure also helps for better ventilation.

You need the following additional parts:

- 6x M3x8/M3x10 screws, 4x M3 nuts. 4x screws and nuts for the fan, 2x two for the DC-DC converter if you don't use a 24V fan. - A 60x60x15mm fan, 20mm is may be also working I used a SUNON HA60151V4-A99 DC 12V with only 15dbA. - optional: 1x M4 heat set insert to use the same open/close mechanism I printed the part with an 0.4mm and 0.6mm nozzle and support on. Please rotate the honeycomb structure down so it touches your build plate.

Attention:

- There is one STL which supports a M4 heat set insert. This is the same solution which is used in the original. - There is a second STL where the original M4 screw is just screwed in. Update 2023-01-26

Added step and f3z file with original Sovol SV06 cases as reference and DC-DC pcb and fan model from grabcad.
