DEMON PRO SKR 3 EZ Sovol SV01 PRO

…Please at least be sure to hit like & post a make, I'd love to see your prints!

Brought to you in conduction with 3DPrintDemon.

Treat yourself & your Sovol SV01 Pro to a seriously cool upgrade!

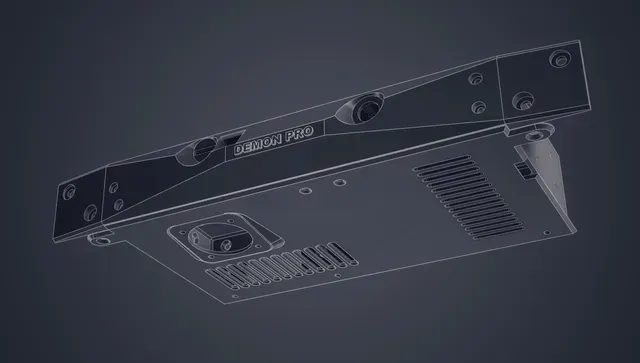

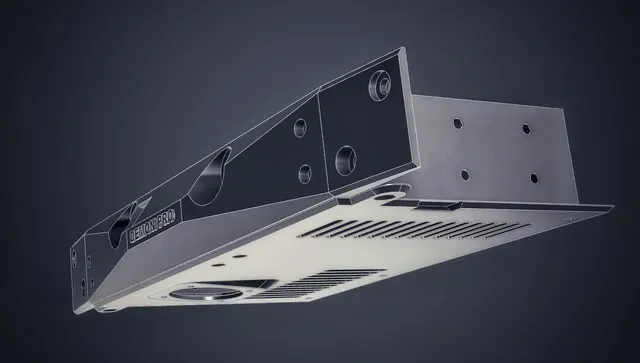

Adds a whole new look to your printer & can be all printed on the machine itself before the upgrade.

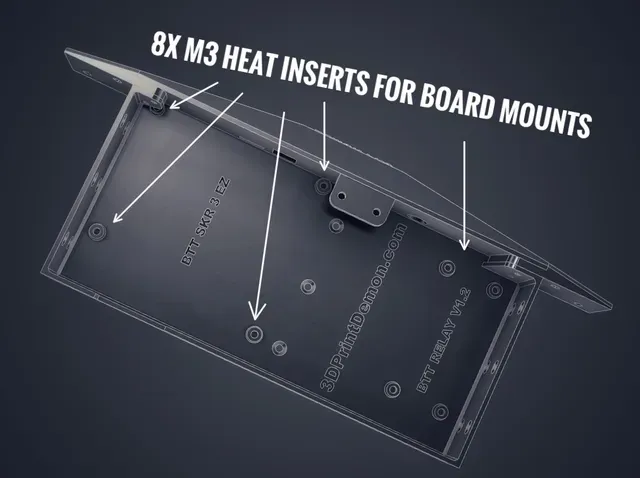

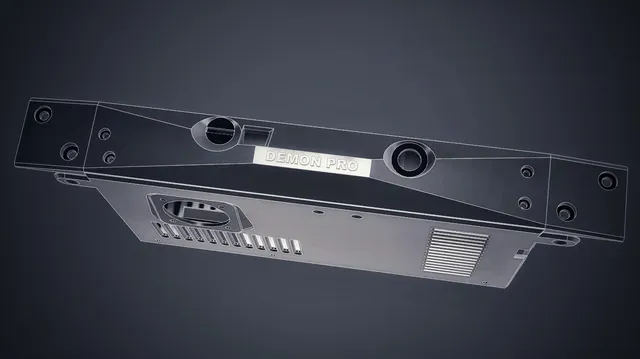

This unit is designed especially to carry the SKR 3 EZ mainboard, the Sovol stock board or even the SKR Mini E3 V3 will NOT FIT!

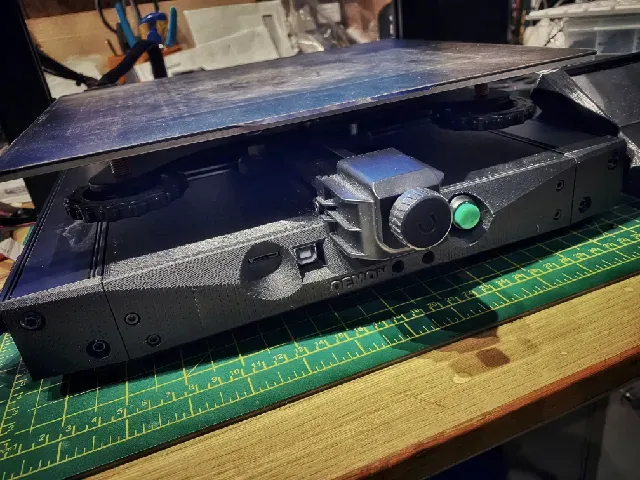

This unit is also designed to house the BTT auto shutdown Relay Board. Which is what the big green button is for, it re-powers the printer after auto shutdown.

Switch used 12mm momentary off/on.

Printing is really easy, print all parts on their flattest surface, print the main Case Body in PETG, the rest can be PLA.

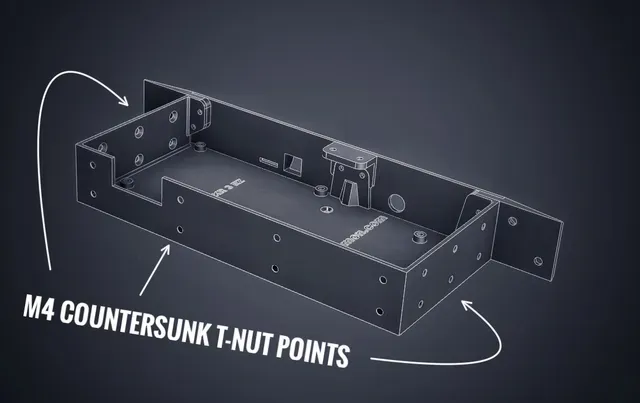

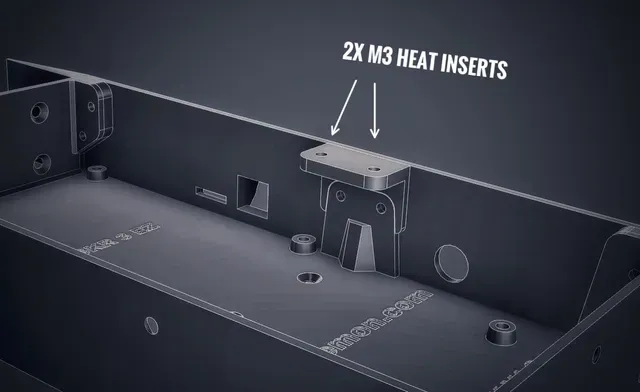

You'll be best off buying a large multipack case of bolts, heat inserts & T nuts then you can pick the best length for your printer. See photos for more info.

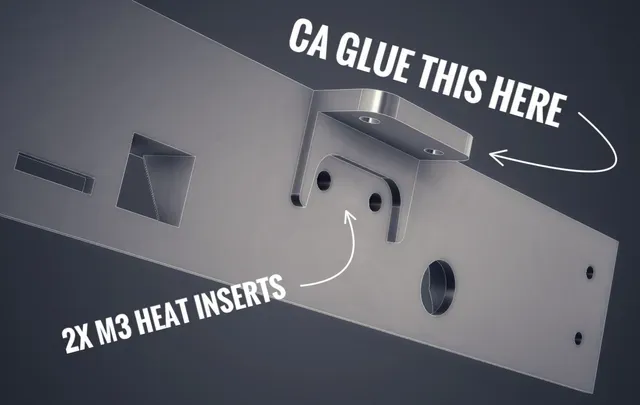

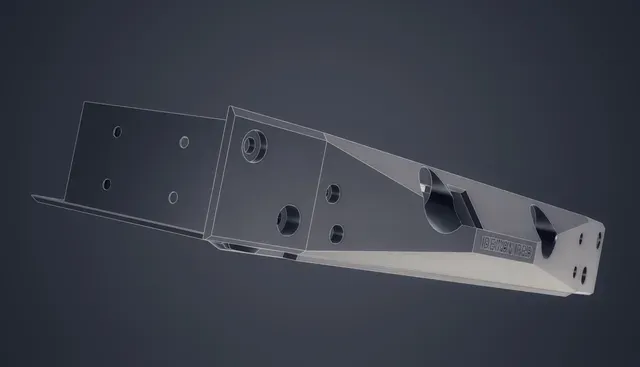

Its best to glue the front mounting bracket onto the faceplate when the faceplate is first test fitted to the main Case Body, that way you can be sure it's in the correct place!

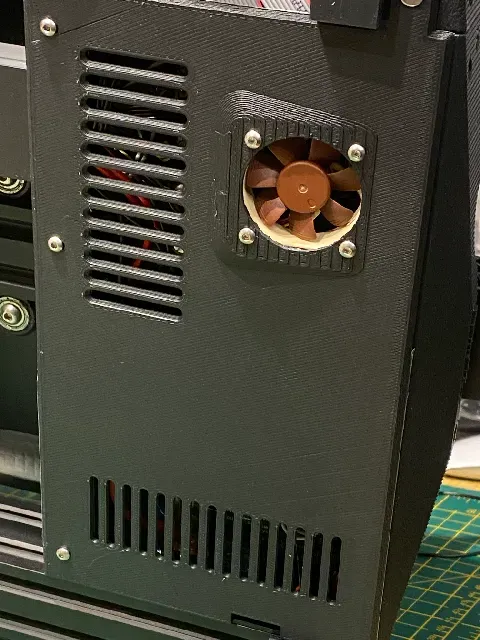

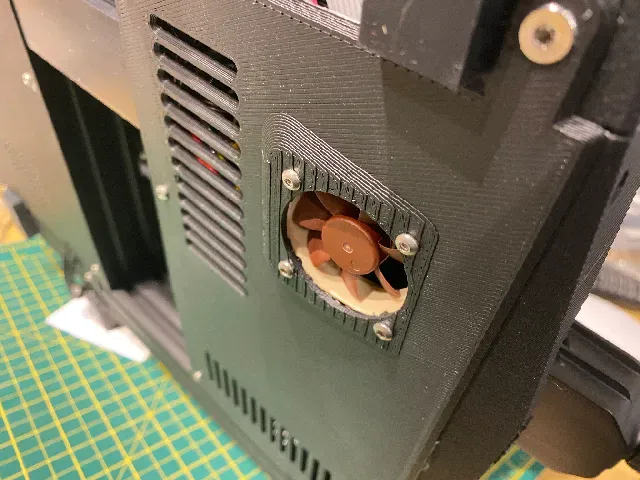

You can reuse the stock mainboard cooling fan.

You can also reuse the 3 stock long bottom cover bolts here.
