Dyson v7 v8 v10 v11 Connector for Flexible Crevice Tool

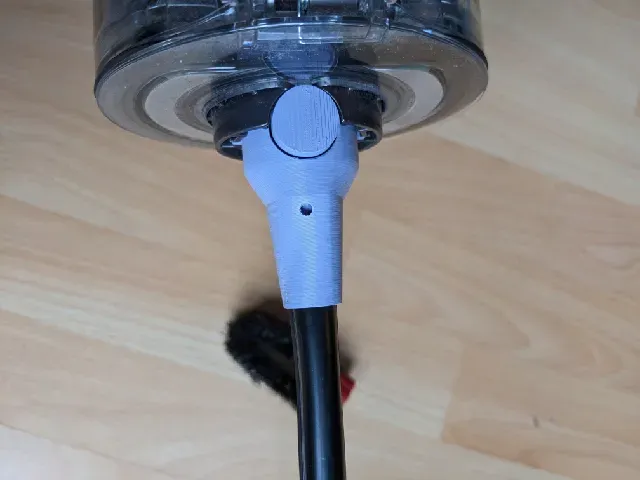

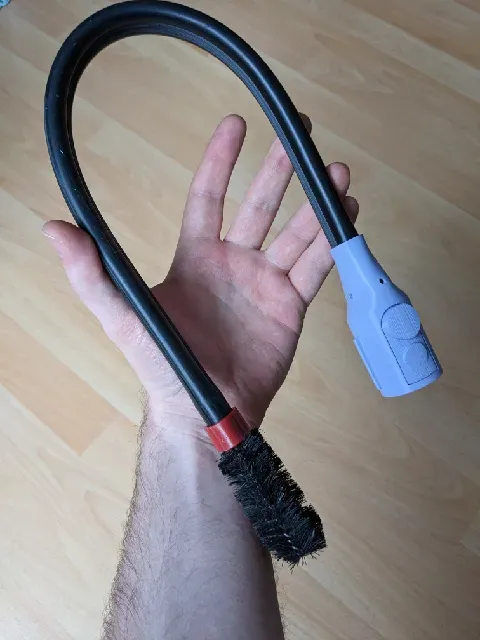

This is a simple remix of Murats great Slim Wand to reuse an old flexible crevice nozzle hose with a Dyson v11. The original had a squishy conical adapter that wouldn't fit the Dyson accessories. You can just pull the hose out of the old adapter and press it in the printed one.

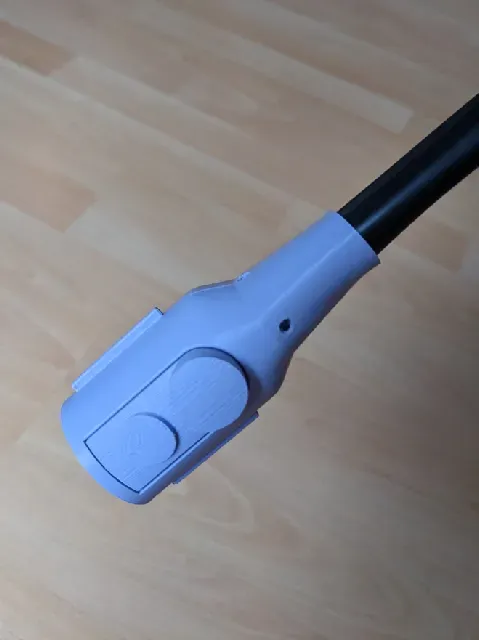

I used Murats design as a base since it has a sophisticated, well working locking mechanism and you just need:

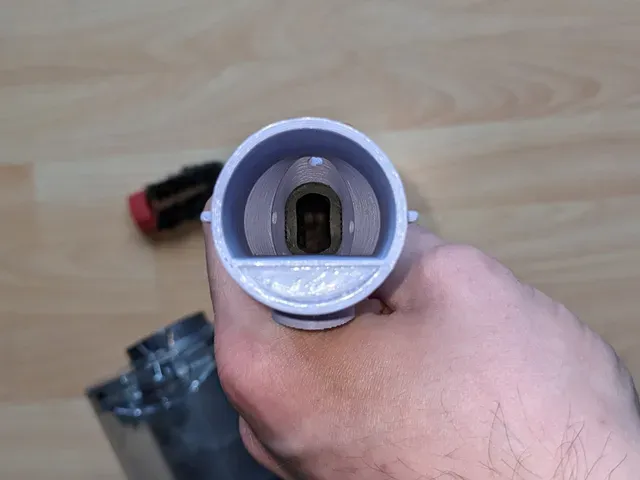

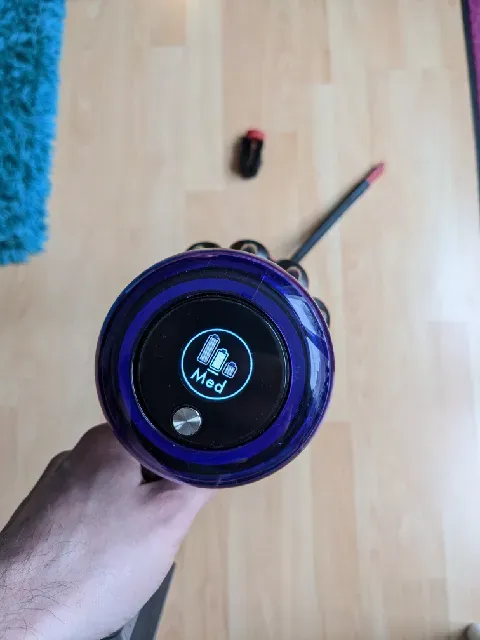

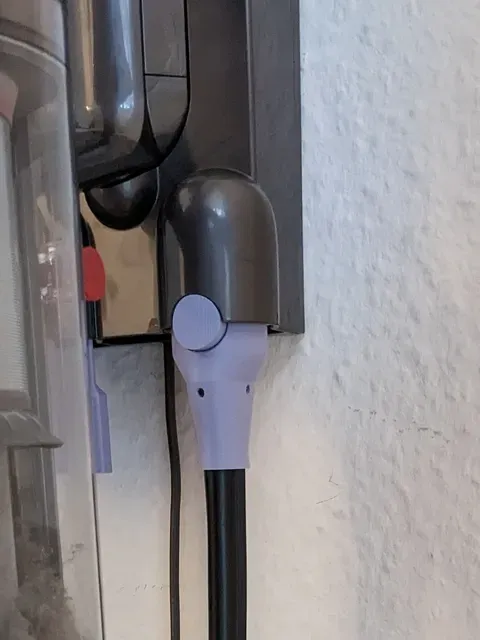

- to print all three parts and remove all the support (the adapter itself needs a little bit of support) - a spring (5mm x 15mm ball-point pen spring, I used a leftover 6mm x 14mm spring from an old 3D-Printer) - some CA-Glue to fix the cap in place. The Adapter has four holes to prevent triggering the low pressure warning when used at medium performance. The adapter will fit the original wallmount and should also work fine with the Dyson v7, v8 and v10 devices.

In the files section you will find a .3mf-file with added supports as well as combined and seperate .stl-files.

Happy printing!
