Prusa Mini - Coldend Exhaust Fan Duct

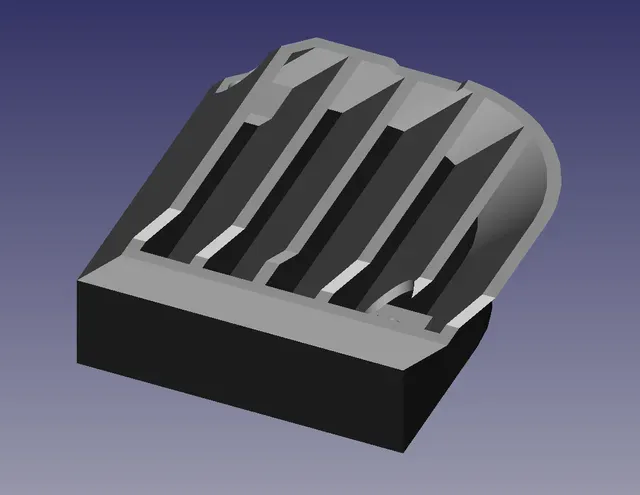

A compact fan duct for the Prusa MINI(+)'s coldend heatsink exhaust. It directs the air upwards, away from the print and area to the right of the printer (which makes staring at the print from the side more pleasant). The part does not interfere with the motion of the X-axis.

As the fan duct is near the heat block, it should be printed in PETG (or ASA/ABS, ect.). For a smoother air path, I printed mine with the DETAIL preset (0,1mm layer height), any quality setting should work.

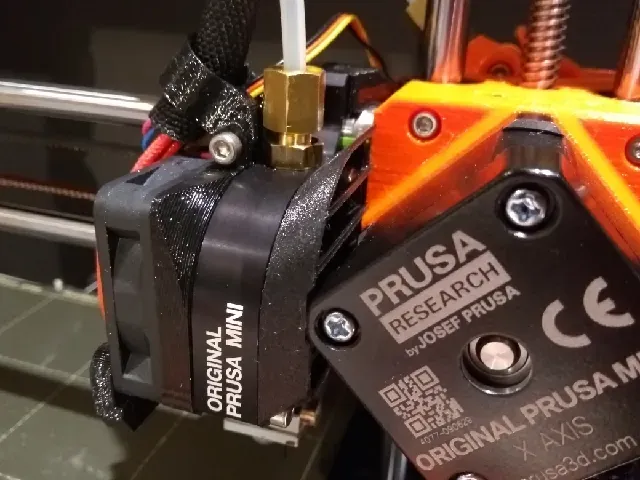

Attach the part with 2 of the spare M3x8 bolts included with the printer. Do not overtighten the bolts as this warps the part.
