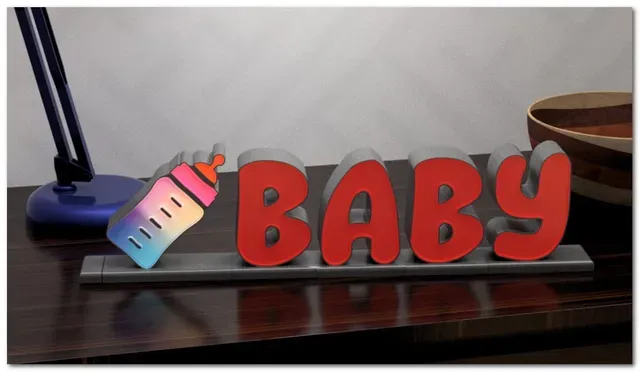

Glowing WLED baby bottle

You are doing me a big favor by clicking the Like button :-)

Fits in the project Glowing LED and WLED all alphabet letters and all numbers 10 cm high. https://www.printables.com/model/149829-glowing-led-and-wled-all-alphabet-letters-and-all-

Shopping list for use with WS2812B leds WS2812B RGB PCB Led (AliExpress) Wemos D1 Mini V3.0.0 (AliExpress) Wire thin 28AWG (AliExpress) 5mm led Black Filament - Sunlu Black Warm white Filament – E-Sun white-B (Not Snowwhite) Solder tin Glue 5 Volt usb micro adapter

Print the body and back in black or other non-translucent color use support. Print the lens warm white or white, for example, E-sun white-b 100% infill. Put some glue on de edge of the lens, and place the lens in the letter press firmly. Top led is not a ws2812b but a standard 5mm led.

Glue cover fles back on the body.

- Programming the Wemos its very simple, look here: https://kno.wled.ge/basics/install-binary/ Metthod 3: ESP Home Flasher tool

Link to the flasher: https://github.com/esphome/esphome-flasher/releases

Link to the bin file: https://github.com/Aircoookie/WLED/releases

Open the ESPHome-Flasher-1.4.0-Windows-x64.exe 1. Choose the comport that your WEMOS is on 2. Browse in the flasher to WLED_xxxxxxxxx_ESP8266.bin 3. Click on Flash Esp

Thats it

If you don't want to use the WS2812B, you can also use a normal deffused 5 mm LED. An adapter is included for this.
